10928 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 210000001 - 210999999) (2001) CONTROL ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

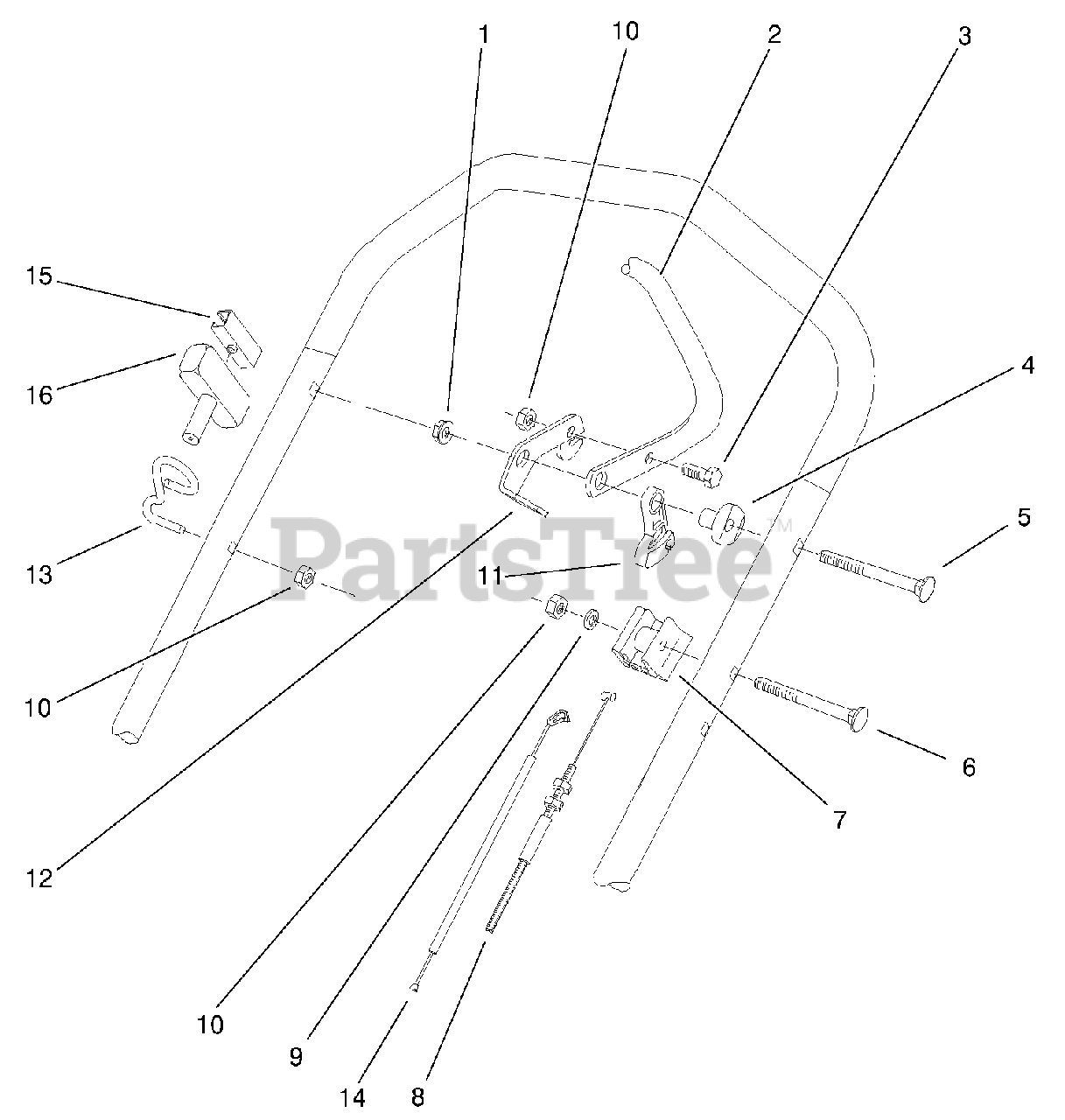

CONTROL ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3296-74

Nut-Lock NI
(Superseded to 3296-72)

$2.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 52-7430-05

Bar-Control

$

$

Not available

3

Lawn-Boy 321-39

Screw-HH

$0.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 66-0330

Spacer-Support

$7.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 17-9428

Handle Screw

$1.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 92-2270

Screw-Handle

$8.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 71-0960

Cable Support

$10.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 93-6634

Cable-Traction

$

$

Not available

9

Lawn-Boy 3256-1

Washer-Flat

$0.99

$

In Stock, Qty 20+

0

10

Lawn-Boy 3296-73

Nut-Lock, NI

$5.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 46-5520

Lever-Traction

$

$

Not available

12

Lawn-Boy 66-5351-03

Lever-Control

$12.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 95-4457

Guide-Rope
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 104-0215

Cable-Brake

$

$

Not available

15

Lawn-Boy 612824

Starter-Clip

$4.49

$

In Stock, Qty 9

0

16

Lawn-Boy 612825

Handle-start
(Superseded to 81-1630)

$

$

Not available
