10969 (ST 624) - Ariens 24" Sno-Thro Snow Blower, 6hp Tecumseh (SN: 000001 & Above)

24" Sno-Thro Snow Blower, 6hp Tecumseh

10969 (ST 624) - Ariens 24" Sno-Thro Snow Blower, 6hp Tecumseh (SN: 000001 & Above) > Parts Diagrams (4) > SNO-THRO 32"

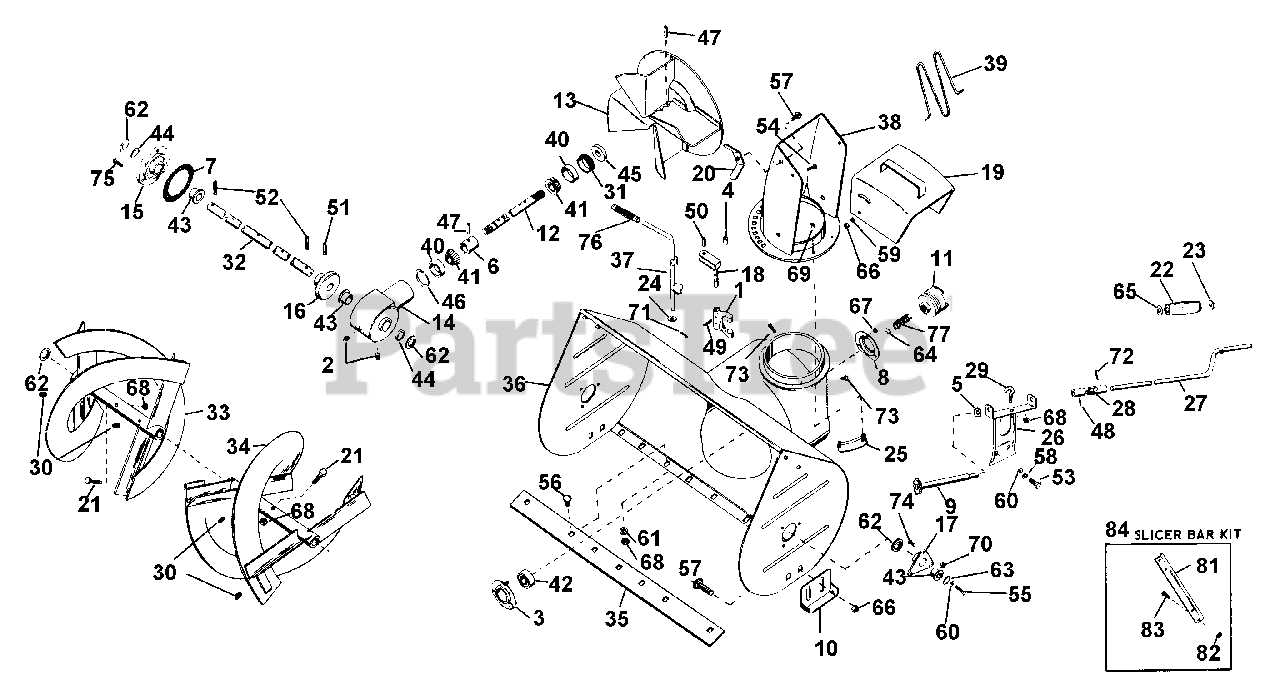

  • Title
00100800

1

CLUTCH FORK

Part# 00100800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $49.14

00113800

2

PIPE PLUG

Part# 00113800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00301700

3

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

00303400

4

ROLLER

Part# 00303400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $14.48

00325400

5

WAVE WASHER .531X.781X.125FH

Part# 00325400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01010700

6

BEARING SPACER

Part# 01010700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

01010800

7

GASKET

Part# 01010800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01014200

8

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

01015400

9

CONTROL SPROCKET

Part# 01015400

OEM Warranty Repair Part for Ariens

Not available

01016500

10

RUNNER

Part# 01016500 (Superseded to 02483859)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

01017600

11

JAW CLUTCH

Part# 01017600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $141.37

01017700

12

HELICON PINION SHAFT

Part# 01017700 (Superseded to 51001400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01017800

13

FAN

Part# 01017800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $172.12

01018000

14

CASE, GEAR - C.I.

Part# 01018000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $362.84

01018100

15

GEAR CASE FLANGE

Part# 01018100

OEM Warranty Repair Part for Ariens

Not available

01018300

16

HELICON GEAR - 41 TOOTH

Part# 01018300 (Superseded to 51001400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01018400

17

BEARING SUPPORT

Part# 01018400

OEM Warranty Repair Part for Ariens

Not available

01018600

18

FORK SHAFT

Part# 01018600

OEM Warranty Repair Part for Ariens

Not available

01019100

19

DEFLECTOR CHUTE

Part# 01019100 (Superseded to 52406100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

01019300

20

WING NUT

Part# 01019300

OEM Warranty Repair Part for Ariens

Not available

01019500

21

SHEAR BOLT YWZC

Part# 01019500 (Superseded to 51001500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.25

01019700

22

HANDLE

Part# 01019700

OEM Warranty Repair Part for Ariens

Not available

01019800

23

CAP, 3/8 ROD YWZC

Part# 01019800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01026000

24

WAVE WASHER .406X.750X.063FH

Part# 01026000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

01026900

25

CHUTE CLAMP

Part# 01026900 (Superseded to 51002600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $18.39

01028100

26

CHUTE CNTL BRACKET

Part# 01028100

OEM Warranty Repair Part for Ariens

Not available

01028400

27

CHUTE CNTL CRANK

Part# 01028400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01029000

28

UNIVERSAL JOINT

Part# 01029000 (Superseded to 02470400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $97.27

01029600

29

J BOLT

Part# 01029600

OEM Warranty Repair Part for Ariens

Not available

01035400

30

HYDRAULIC DRIVE FITTING

Part# 01035400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

01037100

31

ADJUSTMENT PLUG

Part# 01037100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $60.82

01038400

32

FRONT GEAR SHAFT

Part# 01038400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $128.51

01038500

33

R H RAKE

Part# 01038500 (Superseded to 52412300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

01038600

34

L H RAKE

Part# 01038600 (Superseded to 52412200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $332.60

01038700

35

SCRAPER BLADE

Part# 01038700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.72

01038800

36

BLOWER HOUSING

Part# 01038800 (Superseded to 51001100)

OEM Warranty Repair Part for Ariens

Not available

01039000

37

FORK CAM

Part# 01039000

OEM Warranty Repair Part for Ariens

Not available

01039200

38

DISCHARGE CHUTE

Part# 01039200

OEM Warranty Repair Part for Ariens

Not available

01039300

39

SAFETY WIRE

Part# 01039300

OEM Warranty Repair Part for Ariens

Not available

05404400

40

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

41

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05406300

42

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

05503500

43

BSHG-FLG 1.000X1.12X.62X1.50BR

Part# 05503500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05606100

44

SEAL 1.000X1.312X.150

Part# 05606100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $11.12

05606200

45

SEAL .750X1.499X.225

Part# 05606200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05703200

46

RG-RTNG INT 1.781 HSG X.062

Part# 05703200 (Superseded to 05707500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05800700

47

PIN-ROLL .250X1.25

Part# 05800700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05800900

48

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05801600

49

PIN-ROLL .188X1.00

Part# 05801600 (Superseded to 02470401)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05801700

50

PIN-ROLL .313X1.25

Part# 05801700

OEM Warranty Repair Part for Ariens

Not available

05802200

51

PIN-ROLL .313X1.38

Part# 05802200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05803000

52

PIN-ROLL .188X1.50

Part# 05803000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05902200

53

BLT-HEX .31-18X.75 PL GR2

Part# 05902200 (Superseded to 05947000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05902300

54

BLT-HEX .38-16X.75 PL GR2

Part# 05902300 (Superseded to 05959400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

05902400

55

BLT-HEX .50-13X1.00 PL GR2

Part# 05902400 (Superseded to 05947100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06200900

56

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06201000

57

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.98

06300300

58

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06300400

59

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

06300600

60

WSHR-LK .500X.151 HVY PL

Part# 06300600 (Superseded to 06306600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06400200

61

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06404600

62

WSHR-FL-STL 1.010X1.505X.062PL

Part# 06404600

OEM Warranty Repair Part for Ariens

Not available

06404700

63

WSHR-FL-STL .511X1.441X.125 PL

Part# 06404700 (Superseded to 06436400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06404800

64

WSHR-FL-STL .755X1.375X.062 PL

Part# 06404800 (Superseded to 06441500)

OEM Warranty Repair Part for Ariens

Not available

06405200

65

WSHR-FL-STL .382X.812X.023 PL

Part# 06405200 (Superseded to 06436500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06503900

66

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504000

67

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

06504200

68

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06505100

69

NUT-KEPS 10-24 PL

Part# 06505100 (Superseded to 06536600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06505600

70

NUT-LK-FLG .250-20 PL

Part# 06505600 (Superseded to 06530100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700400

71

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06701400

72

PIN-COTR .12 X 1.25 PL

Part# 06701400 (Superseded to 06712600)

OEM Warranty Repair Part for Ariens

Not available

07001000

73

BLT-SCRHFWH .38-16X.50 PL

Part# 07001000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

07001100

74

SCR-SLTR-SERNK .25-20X.62 PL

Part# 07001100 (Superseded to 07028600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

07001200

75

BLT-SERHFWH .25-20X.75 PL

Part# 07001200 (Superseded to 07049400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

07500400

76

GRIP

Part# 07500400

OEM Warranty Repair Part for Ariens

Not available

08301400

77

SG-COMP .105X1.35X1.984

Part# 08301400 (Superseded to 08300010)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

07801200

78

SNO-THRO DECAL

Part# 07801200

OEM Warranty Repair Part for Ariens

Not available

07801400

79

CAUTION LABEL

Part# 07801400 (Superseded to 52416300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $42.99

07805500

80

CLUTCH INSTRUCTION DECAL

Part# 07805500

OEM Warranty Repair Part for Ariens

Not available

01024200

81

CUTTER BAR

Part# 01024200 (Superseded to 01024251)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $36.84

06200900

82

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06504200

83

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

71099700

84

SLICER BAR KIT

Part# 71099700

Note: (Inc. 81,82,82)

OEM Warranty Repair Part for Ariens

Not available
