10995 - Lawn-Boy Insight Gold Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE ASSEMBLY NO. 1 TECUMSEH LV195EA-362073D Parts Diagram

Insight Gold Walk-Behind Mower

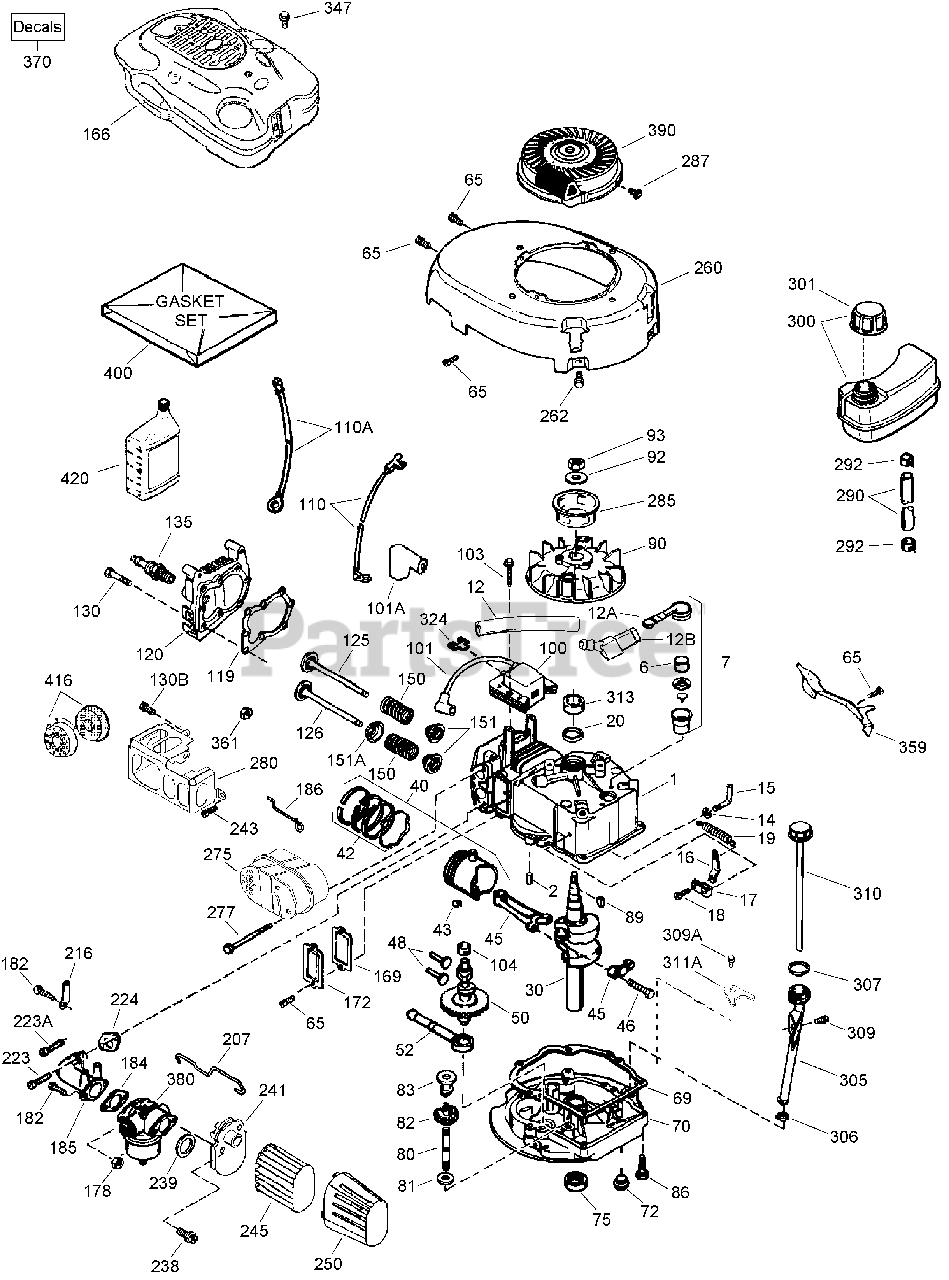

ENGINE ASSEMBLY NO. 1 TECUMSEH LV195EA-362073D Parts Diagram

  • Title

1

Lawn-Boy 37465

Cylinder ASM (Includes 2 and 20)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 26727

Pin-Dowel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 33734

Element-Breather

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 36557

Breather ASM (Includes 6 and 12A)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 37944

Tube-Breather

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12A

Lawn-Boy 36558

Breather Cover and Tube ASM (Includes 12B)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12B

Lawn-Boy 36694

Elbow-Tube, Breather
(Superseded to 704856)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

14

Lawn-Boy 28277

Washer-Flat

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 30589

Governor Rod ASM (Includes 14)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 34839A

Lever-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 31335

Clamp-Lever, Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651018

Screw (T-15, 8-32 x 19/64)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 36281

Spring-Extension
(Superseded to 700777)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

20

Lawn-Boy 32600

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 37692

Crankshaft

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 40044

Piston, Pin and Ring Set (STD) (Includes 42)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 40045

Piston, Pin and Ring Set (.010 OS) (Includes 42)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40006

Ring Set (STD)

Note: Obtain from your local Tecumseh dealer

$86.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 40007

Ring Set (.010 O S)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

43

Lawn-Boy 20381

Ring-Retaining, Piston Pin

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

45

Lawn-Boy 36777

Connecting Rod ASM (Includes 46)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

46

Lawn-Boy 32610A

Bolt-Rod, Connecting

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 27241

Lifter-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 37460

Camshaft ASM (Exhaust MCR) (Incudes 104)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

52

Lawn-Boy 29914

Oil Pump ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

65

Lawn-Boy 30200

Screw (10-24 x 9/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 37609

Gasket-Flange, Mounting

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 37608A

Mounting Flange ASM (Includes 72 thru 83, 306, 309A and 311A)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

72

Lawn-Boy 37614

Plug-Drain, Oil (Flush Mount)
(Superseded to 700905)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

75

Lawn-Boy 27897

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 30574A

Shaft-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 30591

Governor Gear ASM (Includes 81)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw (1/4-20 x 1-1/4)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 611298

Key-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Not available

90

Lawn-Boy 611299

Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Not available

92

Lawn-Boy 650815

Washer-Belleville

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650816

Nut-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 34443C

Ignition-Solid State

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

101A

Lawn-Boy 611283

Shield-Spark Plug L-Head

Note: Obtain from your local Tecumseh dealer

$

$

Not available

103

Lawn-Boy 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

104

Lawn-Boy 37480

Bushing-Cam

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 611227

Wire-Ground

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

110A

Lawn-Boy 37047

Wire-Ground (10.50 with male and female flag terminals)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 37796

Gasket-Head, Cylinder

Note: Included in Gasket Kit 37613A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 37714

Head-Cylinder
(Superseded to 741027)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

125

Lawn-Boy 37288

Valve-Exhaust (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 36780

Valve-Exhaust (1/32 OS) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 37289

Valve-Intake (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw (5/16-18x1-1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130B

Lawn-Boy 650737

Screw (1/4-20 x 1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 35395

Spark Plug-Resistor (R J19 L M) (also available in Packaged Part 740081)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
