10996 - Lawn-Boy Insight Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Lower Handle Assembly Parts Diagram

Insight Walk-Behind Mower

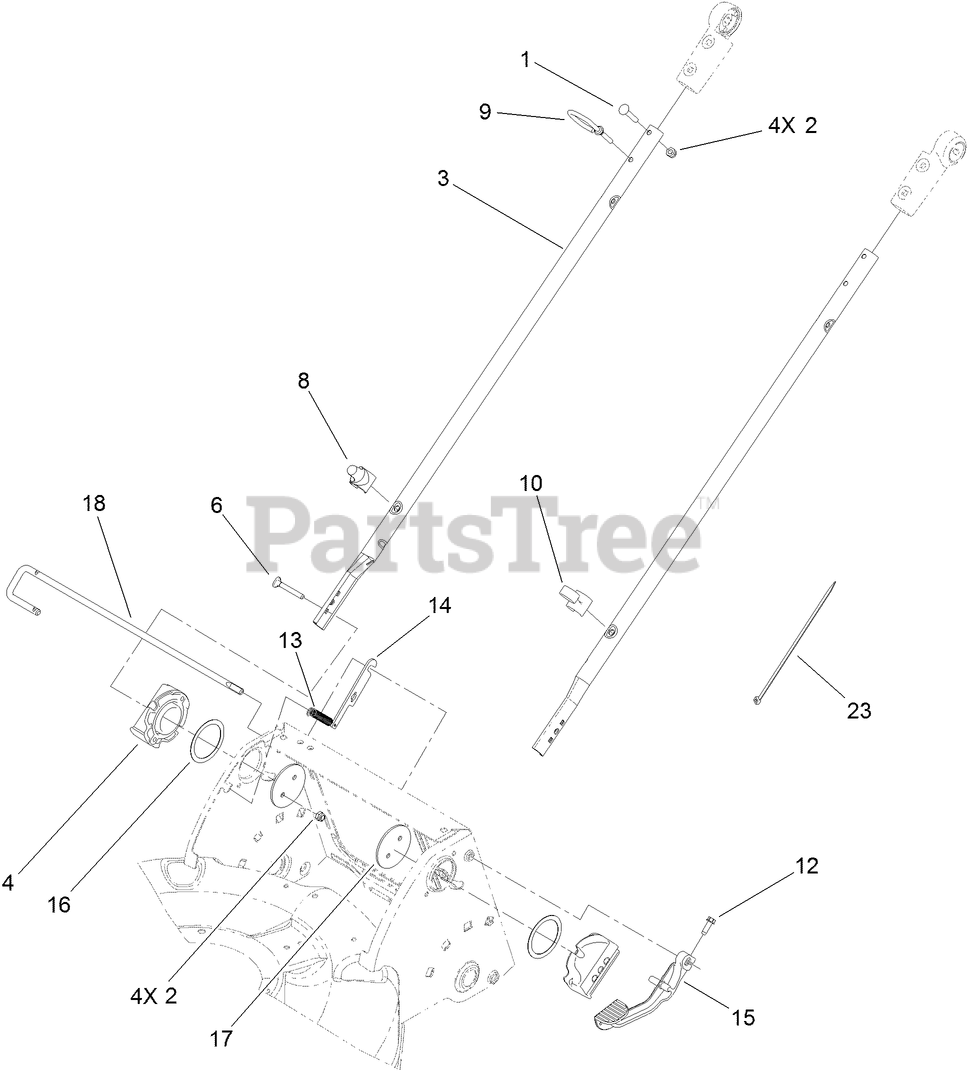

Lower Handle Assembly Parts Diagram

  • Title

1

Lawn-Boy 108-0988

SCREW-CARR

$0.99

$

In Stock, Qty 11

0

2

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 107-3887-03

TUBE-LOWER

$29.99

$

In Stock, Qty 20+

0

4

Lawn-Boy 119-3847-03

MOUNT-HANDLE

$17.99

$

In Stock, only 1 left!

0

6

Lawn-Boy 95-4453

SCREW

$3.49

$

In Stock, Qty 20+

0

8

Lawn-Boy 108-0994

See Supercession: 117-4141
(Superseded to 117-4141)

$13.99

$

In Stock, only 4 left!

0

9

Lawn-Boy 107-3908

GUIDE-ROPE, UPPER

$4.49

$

In Stock, Qty 5

0

10

Lawn-Boy 114-7988

GUIDE-CABLE

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 112-1542

SPRING-EXTENSION

$2.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 112-1539

PLATE-ROD, RELEASE

$6.99

$

In Stock, only 4 left!

0

15

Lawn-Boy 110-1823-03

LEVER-RELEASE

$41.99

$

In Stock, only 1 left!

0

16

Lawn-Boy 107-3947

WASHER-NYLON

$1.49

$

In Stock, Qty 11

0

17

Lawn-Boy 107-3944-03

PLATE

$5.49

$

In Stock, Qty 8

0

18

Lawn-Boy 112-8755

ROD-RELEASE, HANDLE

$23.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0
