10998 - Lawn-Boy Insight Walk-Behind Mower (SN: 312000001 - 312999999) (2012) Electrical Assembly Parts Diagram

Insight Walk-Behind Mower

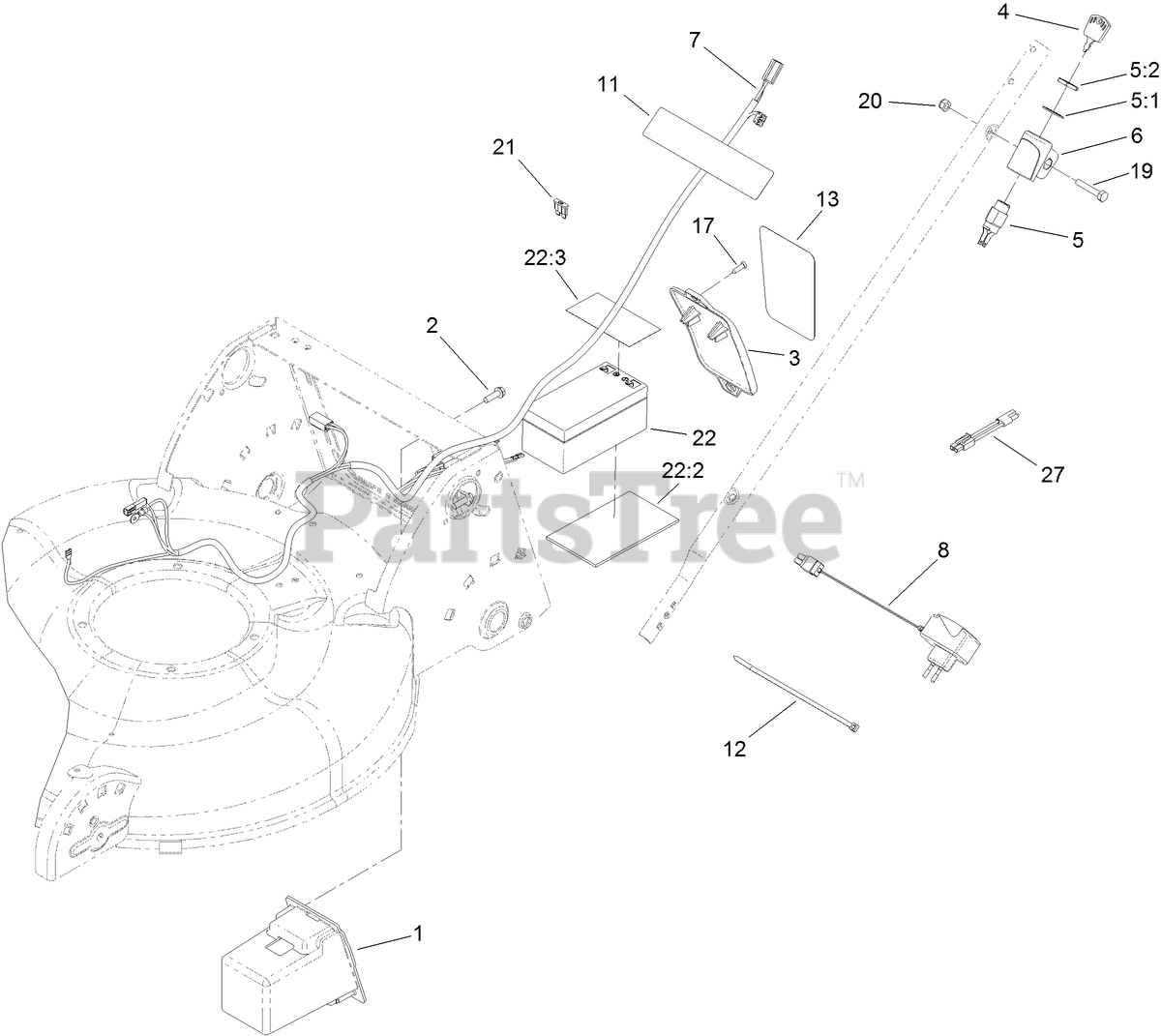

Electrical Assembly Parts Diagram

  • Title

1

Lawn-Boy 107-3932

BOX-BATTERY

$20.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 46-8091

SCREW-HWH

$4.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 108-0981

COVER-BATTERY

$14.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 700918

KEY

$6.49

$

In Stock, Qty 14

0

5

Lawn-Boy 46-5780

STARTER SWITCH ASM

$31.99

$

In Stock, Qty 5

0

5:1

Lawn-Boy 3254-5

WASHER-LOCK

$1.49

$

In Stock, Qty 18

0

5:2

Lawn-Boy 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

6

Lawn-Boy 108-9760

MOUNT-SWITCH

$6.49

$

In Stock, Qty 19

0

7

Lawn-Boy 114-2815

HARNESS-WIRE

$144.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 98-2391

CHARGER-EUROPEAN, 12V DC

$

$

Not available

11

Lawn-Boy 104-7953

DECAL-WARNING

$10.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

13

Lawn-Boy 108-0992

DECAL-INSTRUCTION, BATTERY

$7.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 32144-111

SCREW-PPH

$1.49

$

In Stock, Qty 19

0

19

Lawn-Boy 321-51

SCREW-HH

$1.49

$

In Stock, only 2 left!

0

20

Lawn-Boy 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 99-6124

FUSE-40 AMP

$5.49

$

In Stock, Qty 16

0

22

Lawn-Boy 108-9358

BATTERY-WET

$115.99

$

In Stock, only 2 left!

0

22:2

Lawn-Boy 108-0987

FOAM-BATTERY

$2.49

$

In Stock, only 1 left!

0

22:3

Lawn-Boy 112-8763

DECAL-TERMINAL, BATTERY

$4.49

$

Usually ships in 3-6 days

0

27

Lawn-Boy 107-3749

ADAPTER-CHARGER

$28.99

$

Usually ships in 3-6 days

0
