10M4 (ST 424) - Ariens 24" Sno-Thro Snow Blower, 4hp Tecumseh (SN: 004501 - 012100) SNO-THRO Parts Diagram

24" Sno-Thro Snow Blower, 4hp Tecumseh

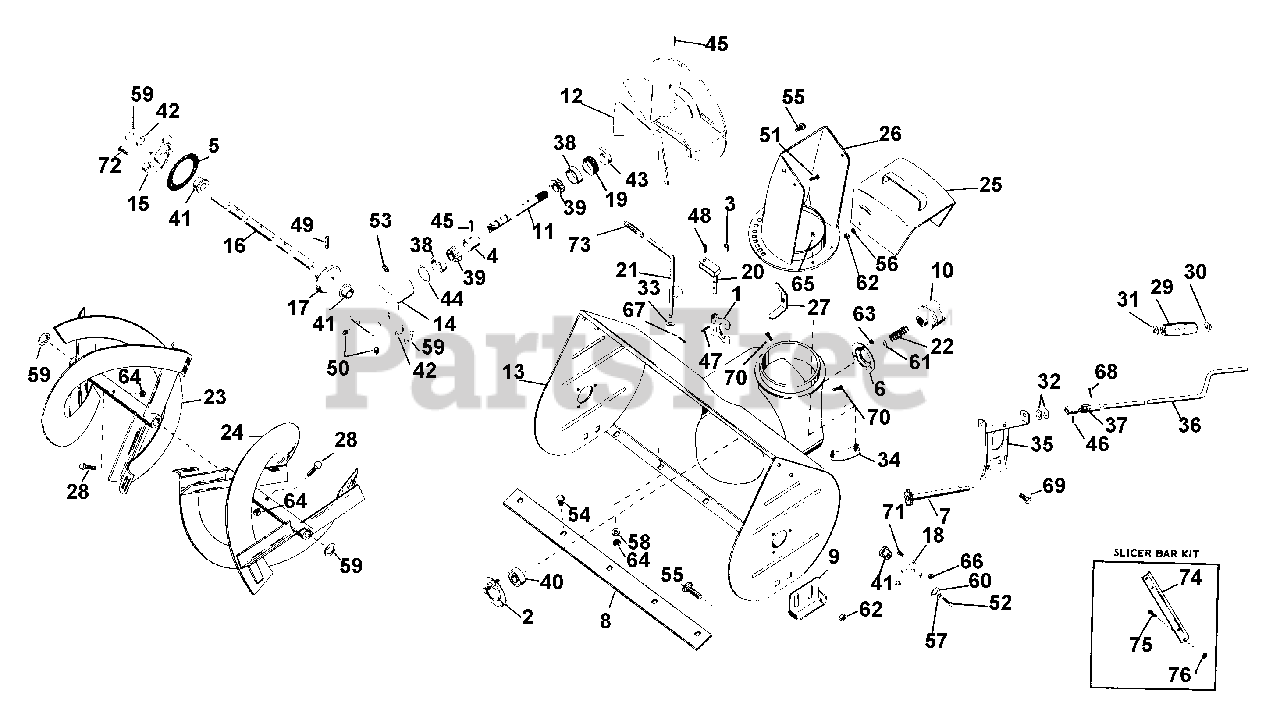

SNO-THRO Parts Diagram

  • Title
1

Ariens 00100800

CLUTCH FORK

$49.14

$

Usually ships in 4-12 days

0

2

Ariens 00301700

BEARING FLANGE

$20.07

$

Usually ships in 4-12 days

0

3

$15.21

$

In Stock, only 1 left!

0

4

Ariens 01010700

BEARING SPACER

$30.69

$

Usually ships in 4-12 days

0

5

$5.81

$

In Stock, only 3 left!

0

6

Ariens 01014200

BEARING FLANGE

$12.24

$

In Stock, only 1 left!

0

7

Ariens 01015400

CONTROL SPROCKET

$

$

Not available

8

Ariens 01016400

SCRAPER BLADE 24"
(Superseded to 01016459)

$30.69

$

In Stock, Qty 11

0

9

Ariens 01016500

RUNNER
(Superseded to 02483859)

$17.83

$

In Stock, Qty 20+

0

10

Ariens 01017600

JAW CLUTCH

$155.51

$

In Stock, only 1 left!

0

11

Ariens 01017700

HELICON PINION SHAFT
(Superseded to 51001400)

$317.48

$

Usually ships in 4-12 days

0

$180.73

$

Usually ships in 4-12 days

0

13

Ariens 01017900

BLOWER HOUSING
(Superseded to 51001000)

$

$

Not available

14

Ariens 01018000

CASE, GEAR - C.I.

$

$

Not available

15

Ariens 01018100

GEAR CASE FLANGE

$

$

Not available

16

Ariens 01018200

FRONT GEAR SHAFT

$

$

Not available

17

Ariens 01018300

HELICON GEAR - 41 TOOTH
(Superseded to 51001400)

$317.48

$

Usually ships in 4-12 days

0

18

Ariens 01018400

BEARING SUPPORT

$

$

Not available

19

Ariens 01018500

ADJUSTMENT PLUG
(Superseded to 01037100)

$66.91

$

Usually ships in 4-12 days

0

20

Ariens 01018600

FORK SHAFT

$

$

Not available

21

Ariens 01018700

FORK CAM
(Superseded to 01039000)

$

$

Not available

22

Ariens 01018800

SPRING
(Superseded to 08300010)

$20.07

$

In Stock, only 1 left!

0

23

Ariens 01018900

R H RAKE
(Superseded to 51000700)

$

$

Not available

24

Ariens 01019000

L H RAKE

$

$

Not available

25

Ariens 01019100

DEFLECTOR CHUTE
(Superseded to 52406100)

$129.07

$

Usually ships in 4-12 days

0

26

Ariens 01019200

DISCHARGE CHUTE
(Superseded to 01039200)

$

$

Not available

27

Ariens 01019300

WING NUT

$

$

Not available

28

Ariens 01019500

SHEAR BOLT YWZC
(Superseded to 51001500)

$4.42

$

In Stock, Qty 20+

0

29

Ariens 01019700

HANDLE
(Superseded to 07503900)

$

$

Not available

30

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.52

$

In Stock, Qty 20+

0

31

Ariens 01019900

FASTENER

$

$

Not available

32

Ariens 01022900

WAVE WASHER .515 X 1.00 X .125

$

$

Not available

33

Ariens 01026000

WAVE WASHER .406X.750X.063FH

$2.18

$

Usually ships in 4-12 days

0

34

Ariens 01026900

CHUTE CLAMP
(Superseded to 51002600)

$18.73

$

In Stock, only 3 left!

0

35

Ariens 01028100

CHUTE CNTL BRACKET

$

$

Not available

36

Ariens 01028400

CHUTE CNTL CRANK

$5.53

$

Usually ships in 4-12 days

0

37

Ariens 01029000

UNIVERSAL JOINT
(Superseded to 02470400)

$96.71

$

Usually ships in 4-12 days

0

38

Ariens 05404400

BRG-CUP 1.781X.475

$8.89

$

In Stock, Qty 20+

0

39

Ariens 05404500

BRG-CONE .750X.61

$13.36

$

In Stock, Qty 7

0

40

Ariens 05406300

BRG-BALL .750X1.750X.50

$22.30

$

In Stock, Qty 6

0

41

Ariens 05503500

BSHG-FLG 1.000X1.12X.62X1.50BR

$9.45

$

In Stock, Qty 13

0

42

Ariens 05606100

SEAL 1.000X1.312X.150

$11.68

$

In Stock, Qty 20+

0

43

Ariens 05606200

SEAL .750X1.499X.225

$6.65

$

In Stock, only 4 left!

0

44

Ariens 05703200

RG-RTNG INT 1.781 HSG X.062
(Superseded to 05707500)

$8.89

$

In Stock, only 3 left!

0

45

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 20+

0

46

Ariens 05800900

PIN-ROLL .125X1.00

$1.96

$

In Stock, Qty 9

0

47

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 20+

0

48

Ariens 05800700

PIN-ROLL .250X1.25

$1.96

$

In Stock, Qty 20+

0

49

Ariens 05802200

PIN-ROLL .313X1.38

$2.24

$

In Stock, Qty 5

0

50

Ariens 00422600

PIPE PLUG

$

$

Not available

51

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.96

$

Usually ships in 4-12 days

0

52

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$1.96

$

Usually ships in 4-12 days

0

53

Ariens 06000100

SCR-SET .38-16X.50 SKHCUP OH

$

$

Not available

54

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 3 left!

0

55

Ariens 06201000

BLT-RDHDSQNK .38-16X.75 SHT PL
(Superseded to 06200336)

$2.80

$

In Stock, Qty 20+

0

56

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$2.24

$

In Stock, only 3 left!

0

57

Ariens 06300600

WSHR-LK .500X.151 HVY PL
(Superseded to 06306600)

$2.52

$

In Stock, only 4 left!

0

58

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$2.18

$

In Stock, Qty 20+

0

59

Ariens 05404600

BRG-CUP 2.328X.465

$13.36

$

In Stock, Qty 5

0

60

Ariens 05404700

BRG-CONE 1.25X.66

$16.71

$

In Stock, Qty 7

0

61

Ariens 05404800

BRG-CUP 3.346X.532

$

$

Not available

62

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$2.24

$

In Stock, Qty 20+

0

63

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$2.24

$

In Stock, Qty 20+

0

64

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0

65

Ariens 06505100

NUT-KEPS 10-24 PL
(Superseded to 06536600)

$1.96

$

In Stock, only 3 left!

0

66

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$1.96

$

In Stock, Qty 20+

0

67

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$1.96

$

In Stock, Qty 14

0

68

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$1.96

$

In Stock, Qty 10

0

69

Ariens 07000900

BLT-SERHFWH .31-18X.50 PL

$2.46

$

Usually ships in 4-12 days

0

70

Ariens 07001000

BLT-SCRHFWH .38-16X.50 PL

$3.58

$

Usually ships in 4-12 days

0

71

Ariens 07001100

SCR-SLTR-SERNK .25-20X.62 PL
(Superseded to 07028600)

$3.63

$

In Stock, Qty 16

0

72

Ariens 07001200

BLT-SERHFWH .25-20X.75 PL
(Superseded to 07049400)

$2.46

$

Usually ships in 4-12 days

0

73

$

$

Not available

74

Ariens 01024200

CUTTER BAR
(Superseded to 01024251)

$

$

Not available

75

Ariens 06200900

BLT-RDHDSQSHNK .31-18X.50 YZ
(Superseded to 06222000)

$2.99

$

In Stock, only 3 left!

0

76

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$2.52

$

In Stock, Qty 20+

0
