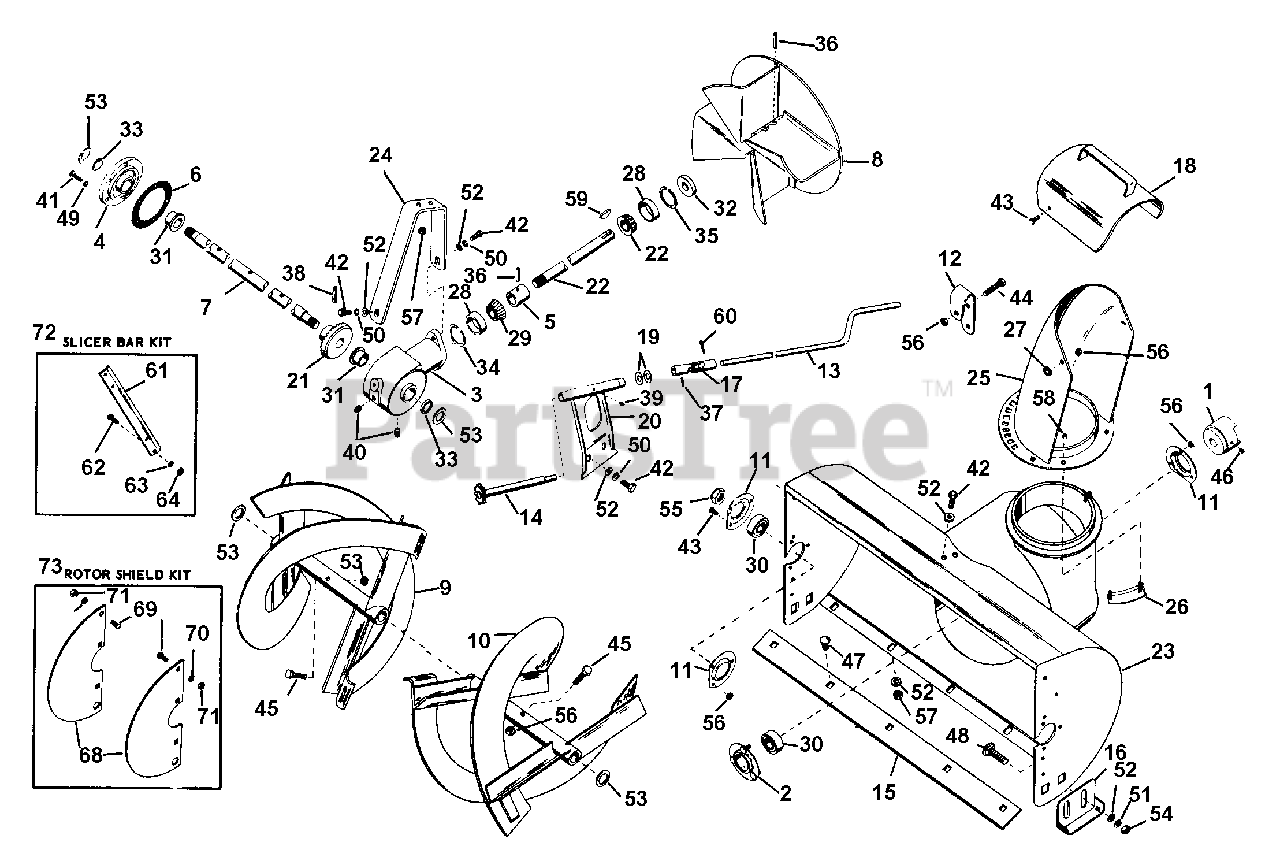

10ML35 (ST 3524) - Ariens 24" Sno-Thro Snow Blower, 3.5hp Tecumseh (SN: 006001 & Above) > Parts Diagrams (2) > SNO-SCOOP

  • Title
00103800

1

TILLER DRIVING JAW

Part# 00103800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $113.09

00301700

2

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

01010500

3

GEAR CS

Part# 01010500

OEM Warranty Repair Part for Ariens

Not available

01010600

4

FLNGE GEAR CS

Part# 01010600

OEM Warranty Repair Part for Ariens

Not available

01010700

5

BEARING SPACER

Part# 01010700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

01010800

6

GASKET

Part# 01010800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.81

01011000

7

FRONT GEAR SHFT

Part# 01011000

OEM Warranty Repair Part for Ariens

Not available

01011100

8

FAN

Part# 01011100

OEM Warranty Repair Part for Ariens

Not available

01011300

9

R H RAKE

Part# 01011300

OEM Warranty Repair Part for Ariens

Not available

01011400

10

L H RAKE

Part# 01011400

OEM Warranty Repair Part for Ariens

Not available

01014200

11

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $12.24

01015000

12

ROD HANGAR

Part# 01015000

OEM Warranty Repair Part for Ariens

Not available

01015200

13

CHUTE CNTL CRANK

Part# 01015200

OEM Warranty Repair Part for Ariens

Not available

01015400

14

CONTROL SPROCKET

Part# 01015400

OEM Warranty Repair Part for Ariens

Not available

01016400

15

SCRAPER BLADE 24"

Part# 01016400 (Superseded to 01016459)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

01016500

16

RUNNER

Part# 01016500 (Superseded to 02483859)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

01016600

17

UNIVERSAL JOINT

Part# 01016600 (Superseded to 02470400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $106.99

01016700

18

DEFLECTOR

Part# 01016700 (Superseded to 52406100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

01022900

19

WAVE WASHER .515 X 1.00 X .125

Part# 01022900

OEM Warranty Repair Part for Ariens

Not available

01023600

20

CHUTE CNTL SPRT

Part# 01023600

OEM Warranty Repair Part for Ariens

Not available

01024400

21

HELICON GEAR

Part# 01024400 (Superseded to 51001700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01024500

22

PINION

Part# 01024500 (Superseded to 51001700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01026400

23

BLOW HSG

Part# 01026400

OEM Warranty Repair Part for Ariens

Not available

01026500

24

GEAR CS SPRT

Part# 01026500

OEM Warranty Repair Part for Ariens

Not available

01026800

25

DISCHARGE CHUTE

Part# 01026800

OEM Warranty Repair Part for Ariens

Not available

01026900

26

CHUTE CLAMP

Part# 01026900 (Superseded to 51002600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

01027100

27

RUBBER WASHER

Part# 01027100

OEM Warranty Repair Part for Ariens

Not available

05404400

28

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

29

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05406300

30

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $27.89

05502200

31

BSHG-FLG .875X1.125X.625X1.500

Part# 05502200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $38.68

05605000

32

SEAL .750X1.781X.250

Part# 05605000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

05605100

33

SEAL .875X1.125X.125

Part# 05605100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

05703200

34

RG-RTNG INT 1.781 HSG X.062

Part# 05703200 (Superseded to 05707500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

60298200

35

SNAP RING KIT

Part# 60298200 (Superseded to 05702100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05800700

36

PIN-ROLL .250X1.25

Part# 05800700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05800900

37

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05802200

38

PIN-ROLL .313X1.38

Part# 05802200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

01215200

39

ZERK FITTING

Part# 01215200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

00422600

40

PIPE PLUG

Part# 00422600

OEM Warranty Repair Part for Ariens

Not available

05900100

41

BLT-HEX .25-20X.75 PL GR2

Part# 05900100 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

05900200

42

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900200

43

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900500

44

BLT-HEX .38-16X1.25 PL GR 2

Part# 05900500 (Superseded to 05958000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

51001600

45

SHEAR BOLT & NUT SERVICE ASSEM

Part# 51001600 (Superseded to 53200500)

Note: (Obsolete)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $4.42

06000100

46

SCR-SET .38-16X.50 SKHCUP OH

Part# 06000100

OEM Warranty Repair Part for Ariens

Not available

06200900

47

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06201000

48

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06300200

49

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06300300

50

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06300400

51

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

06400200

52

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400300

53

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500100

54

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

06503000

55

NUT-LK-CTR .75-16 PL

Part# 06503000 (Superseded to 06536900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06504000

56

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

06504200

57

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06505100

58

NUT-KEPS 10-24 PL

Part# 06505100 (Superseded to 06536600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06600100

59

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06700100

60

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01024200

61

CUTTER BAR

Part# 01024200 (Superseded to 01024251)

OEM Warranty Repair Part for Ariens

Not available

06201100

62

BLT-RDHDSQNK .31-18X.75 GR5 PL

Part# 06201100 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300300

63

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06500100

64

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

01024300

68

SHIELD

Part# 01024300

OEM Warranty Repair Part for Ariens

Not available

06201100

69

BLT-RDHDSQNK .31-18X.75 GR5 PL

Part# 06201100 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300300

70

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06500100

71

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

03-10M00

72

Slicer Bar Kit(Inc. 61,62,63,64)

Part# 03-10M00

Note: (Inc. 61,62,63,64)

OEM Warranty Repair Part for Ariens

Not available

04-10M00

73

Sno-Rotor Shield Kit(Inc. 68,69,70,71)

Part# 04-10M00

Note: (Inc. 68,69,70,71)

OEM Warranty Repair Part for Ariens

Not available
