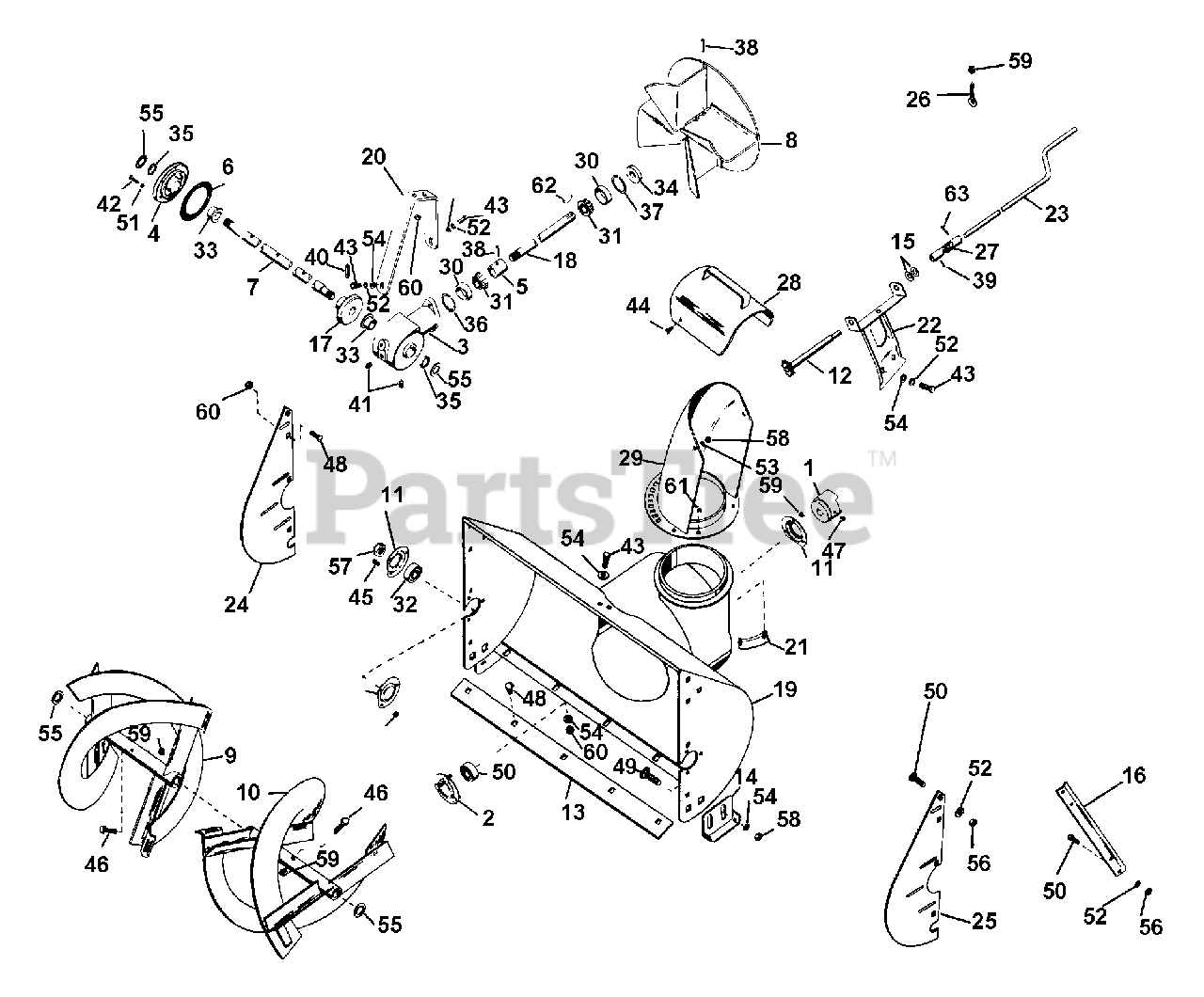

10ML60D (ST 624) - Ariens 24" Sno-Thro Snow Blower, 6hp Tecumseh (SN: 017001 & Above) > Parts Diagrams (2) > SNO-THRO

  • Title
00103800

1

TILLER DRIVING JAW

Part# 00103800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $113.09

00301700

2

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

01010500

3

GEAR CS

Part# 01010500

OEM Warranty Repair Part for Ariens

Not available

01010600

4

FLNGE GEAR CS

Part# 01010600

OEM Warranty Repair Part for Ariens

Not available

01010700

5

BEARING SPACER

Part# 01010700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $30.69

01010800

6

GASKET

Part# 01010800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

01011000

7

FRONT GEAR SHFT

Part# 01011000

OEM Warranty Repair Part for Ariens

Not available

01011100

8

FAN

Part# 01011100

OEM Warranty Repair Part for Ariens

Not available

01011300

9

R H RAKE

Part# 01011300

OEM Warranty Repair Part for Ariens

Not available

01011400

10

L H RAKE

Part# 01011400

OEM Warranty Repair Part for Ariens

Not available

01014200

11

BEARING FLANGE

Part# 01014200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

01015400

12

CONTROL SPROCKET

Part# 01015400

OEM Warranty Repair Part for Ariens

Not available

01016400

13

SCRAPER BLADE 24"

Part# 01016400 (Superseded to 01016459)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $30.69

01016500

14

RUNNER

Part# 01016500 (Superseded to 02483859)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $17.83

01022900

15

WAVE WASHER .515 X 1.00 X .125

Part# 01022900

OEM Warranty Repair Part for Ariens

Not available

01024200

16

CUTTER BAR

Part# 01024200 (Superseded to 01024251)

OEM Warranty Repair Part for Ariens

Not available

01024400

17

HELICON GEAR

Part# 01024400 (Superseded to 51001700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01024500

18

PINION

Part# 01024500 (Superseded to 51001700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $302.35

01026400

19

BLOW HSG

Part# 01026400

OEM Warranty Repair Part for Ariens

Not available

01026500

20

GEAR CS SPRT

Part# 01026500

OEM Warranty Repair Part for Ariens

Not available

01026900

21

CHUTE CLAMP

Part# 01026900 (Superseded to 51002600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.83

01028100

22

CHUTE CNTL BRACKET

Part# 01028100

OEM Warranty Repair Part for Ariens

Not available

01028400

23

CHUTE CNTL CRANK

Part# 01028400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01028600

24

RIGHT HAND ROTOR SHIELD

Part# 01028600

OEM Warranty Repair Part for Ariens

Not available

01028700

25

L H ROTOR SHIELD D

Part# 01028700

OEM Warranty Repair Part for Ariens

Not available

01028900

26

ROD HANGER EYEBOLT

Part# 01028900 (Superseded to 00247500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

01029000

27

UNIVERSAL JOINT

Part# 01029000 (Superseded to 02470400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $106.99

01029100

28

DEFLECTOR

Part# 01029100 (Superseded to 52406100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

01029200

29

DISCHARGE CHUTE

Part# 01029200

OEM Warranty Repair Part for Ariens

Not available

05404400

30

BRG-CUP 1.781X.475

Part# 05404400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

05404500

31

BRG-CONE .750X.61

Part# 05404500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05406300

32

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

05502200

33

BSHG-FLG .875X1.125X.625X1.500

Part# 05502200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $38.68

05605000

34

SEAL .750X1.781X.250

Part# 05605000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

05605100

35

SEAL .875X1.125X.125

Part# 05605100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $9.34

05703200

36

RG-RTNG INT 1.781 HSG X.062

Part# 05703200 (Superseded to 05707500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $8.89

60298200

37

SNAP RING KIT

Part# 60298200 (Superseded to 05702100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05800700

38

PIN-ROLL .250X1.25

Part# 05800700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05800900

39

PIN-ROLL .125X1.00

Part# 05800900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05802200

40

PIN-ROLL .313X1.38

Part# 05802200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

00422600

41

PIPE PLUG

Part# 00422600

OEM Warranty Repair Part for Ariens

Not available

05900100

42

BLT-HEX .25-20X.75 PL GR2

Part# 05900100 (Superseded to 05946800)

OEM Warranty Repair Part for Ariens

Not available

05900200

43

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900200

44

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900200

45

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900700

46

BLT-HEX .44-14X1.25 PL GR2

Part# 05900700 (Superseded to 05963800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06000100

47

SCR-SET .38-16X.50 SKHCUP OH

Part# 06000100

OEM Warranty Repair Part for Ariens

Not available

06200900

48

BLT-RDHDSQSHNK .31-18X.50 YZ

Part# 06200900 (Superseded to 06222000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06201000

49

BLT-RDHDSQNK .38-16X.75 SHT PL

Part# 06201000 (Superseded to 06200004)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06201100

50

BLT-RDHDSQNK .31-18X.75 GR5 PL

Part# 06201100 (Superseded to 06200232)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06300200

51

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06300300

52

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06300400

53

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

06400200

54

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06400300

55

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500100

56

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

06503000

57

NUT-LK-CTR .75-16 PL

Part# 06503000 (Superseded to 06536900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

06503900

58

NUT-LK-CTR .375-16 GR A PL

Part# 06503900 (Superseded to 06529600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504000

59

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

06504200

60

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06505100

61

NUT-KEPS 10-24 PL

Part# 06505100 (Superseded to 06536600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06600100

62

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06700100

63

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

07802800

64

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07802800

65

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07
