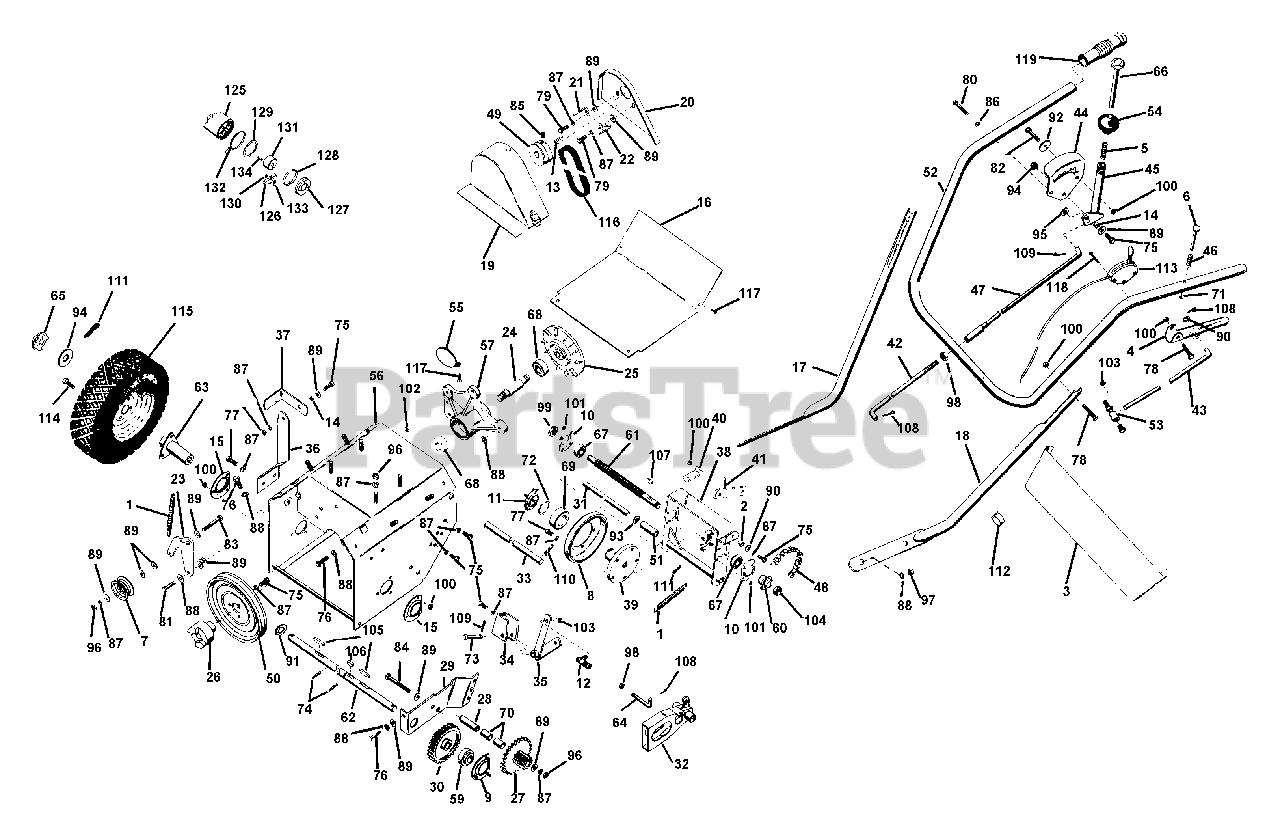

10ML60D (ST 624) - Ariens 24" Sno-Thro Snow Blower, 6hp Tecumseh (SN: 017001 & Above)

24" Sno-Thro Snow Blower, 6hp Tecumseh

10ML60D (ST 624) - Ariens 24" Sno-Thro Snow Blower, 6hp Tecumseh (SN: 017001 & Above) > Parts Diagrams (2) > TRACTOR PARTS FOR 6 HP TRACTORS

  • Title
00102700

1

SPRING

Part# 00102700 (Superseded to 08300400)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.07

01035800

2

SPACER BUSHING .5 X .32 X .163

Part# 01035800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.47

00203300

3

HANDLE BAR PANEL

Part# 00203300 (Superseded to 50203400)

OEM Warranty Repair Part for Ariens

Not available

00203800

4

CLUTCH HANDLE

Part# 00203800 (Superseded to 00203851)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $26.94

08301500

5

SG-COMP ??X.44X?? WLD 10

Part# 08301500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

00204500

6

CLUTCH LOCK PIN

Part# 00204500

OEM Warranty Repair Part for Ariens

Not available

00240200

7

IDLER

Part# 00240200

OEM Warranty Repair Part for Ariens

Not available

00300300

8

FRICTION DISC

Part# 00300300 (Superseded to 04743700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $35.72

00301700

9

BEARING FLANGE

Part# 00301700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $20.07

00303100

10

BEARING FLANGE

Part# 00303100 (Superseded to 02414100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.32

00308500

11

BEARING FLANGE

Part# 00308500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.08

00308600

12

BALL JOINT

Part# 00308600 (Superseded to 04110300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

00500600

13

KEY

Part# 00500600

OEM Warranty Repair Part for Ariens

Not available

00607100

14

SPACER BUSHING .5 X .32 X .21

Part# 00607100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $10.73

01014200

15

BEARING FLANGE

Part# 01014200

Note: (10M-L60 only)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $12.24

01014700

16

BOTTOM COV

Part# 01014700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $58.64

01015600

17

R H LOWER HANDLE BAR

Part# 01015600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $117.33

01015700

18

L H LOWER HANDLE BAR

Part# 01015700

OEM Warranty Repair Part for Ariens

Not available

01015800

19

OUTER BELT GUARD

Part# 01015800 (Superseded to 51003300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $54.06

01015900

20

INNER BELT GUARD

Part# 01015900

OEM Warranty Repair Part for Ariens

Not available

01016000

21

R H BELT FINGER

Part# 01016000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

01016100

22

L H BELT FINGER

Part# 01016100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $17.55

01020200

23

IDLER ARM

Part# 01020200

OEM Warranty Repair Part for Ariens

Not available

01020400

24

SPINDLE

Part# 01020400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $70.38

01020500

25

DRIVE PLATE

Part# 01020500 (Superseded to 01054600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $141.37

01020600

26

JAW COUPLING

Part# 01020600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $164.29

01020700

27

PINION & SPROCKET

Part# 01020700 (Superseded to 52400200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $98.33

01020800

28

PINION STUB SHAFT

Part# 01020800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $67.58

01020900

29

SUPPORT BRACKET

Part# 01020900 (Superseded to 01046200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $40.53

01021100

30

SPUR GEAR, FELLOWS 35T .750 ID

Part# 01021100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $75.97

01021200

31

BRACKET PIN

Part# 01021200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $38.68

01021300

32

SLIDING FORK

Part# 01021300

OEM Warranty Repair Part for Ariens

Not available

01021400

33

FORK SHAFT

Part# 01021400

OEM Warranty Repair Part for Ariens

Not available

01021500

34

LEVER BRACKET

Part# 01021500

OEM Warranty Repair Part for Ariens

Not available

01021700

35

TRANSFER LEVER

Part# 01021700 (Superseded to 01047600)

OEM Warranty Repair Part for Ariens

Not available

01022000

36

CLTCH BRCKT

Part# 01022000

OEM Warranty Repair Part for Ariens

Not available

01022100

37

CLUTCH LEVER

Part# 01022100 (Superseded to 01019400)

OEM Warranty Repair Part for Ariens

Not available

01022200

38

DISC BRCKT

Part# 01022200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

01022400

39

FRICTION DISC HUB

Part# 01022400

OEM Warranty Repair Part for Ariens

Not available

01022600

40

NEUTRAL CATCH

Part# 01022600

OEM Warranty Repair Part for Ariens

Not available

01022700

41

THROWOUT LEVER

Part# 01022700

OEM Warranty Repair Part for Ariens

Not available

01022800

42

LOWER SHIFT ROD

Part# 01022800 (Superseded to 02424700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $80.44

01023000

43

CLTCH ROD

Part# 01023000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $29.68

01023100

44

SHIFT QUADRANT

Part# 01023100

OEM Warranty Repair Part for Ariens

Not available

01023200

45

SHIFT HANDLE

Part# 01023200

OEM Warranty Repair Part for Ariens

Not available

01023300

46

SPRING

Part# 01023300 (Superseded to 08301500)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

01023500

47

SHIFT ROD

Part# 01023500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $50.25

01023700

48

ROLLER CHAIN

Part# 01023700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

01023800

49

ENGINE SHEAVE

Part# 01023800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $134.10

01023900

50

SHEAVE

Part# 01023900

OEM Warranty Repair Part for Ariens

Not available

01024000

51

SPACER

Part# 01024000

OEM Warranty Repair Part for Ariens

Not available

01024100

52

UPPER HANDLE BAR

Part# 01024100 (Superseded to 01035700)

OEM Warranty Repair Part for Ariens

Not available

01024700

53

BALL JOINT

Part# 01024700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $35.16

01024800

54

SHIFT BALL

Part# 01024800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $15.21

01025000

55

COVER

Part# 01025000

OEM Warranty Repair Part for Ariens

Not available

01026600

56

TRACTOR FRAME

Part# 01026600

OEM Warranty Repair Part for Ariens

Not available

01026700

57

BEARING HOUSING

Part# 01026700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $217.68

01027200

58

6 HP CARB COVER

Part# 01027200

OEM Warranty Repair Part for Ariens

Not available

01027400

59

BRNG

Part# 01027400 (Superseded to 05406300)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

01027600

60

9 TOOTH SPROCKET

Part# 01027600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $47.29

01027800

61

SPLINED SHFT

Part# 01027800

OEM Warranty Repair Part for Ariens

Not available

01027900

62

AXLE SHAFT

Part# 01027900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $103.25

01028300

63

WHEEL HUB

Part# 01028300

Note: (10M-L60 only)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $89.72

01028500

64

CONNECTING LINK

Part# 01028500

OEM Warranty Repair Part for Ariens

Not available

01028800

65

HUB CAP

Part# 01028800

OEM Warranty Repair Part for Ariens

Not available

01029300

66

SHIFT RELEASE HANDLE

Part# 01029300

OEM Warranty Repair Part for Ariens

Not available

05403900

67

BRG-BALL .625X1.375X.44

Part# 05403900 (Superseded to 05435100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $13.36

05406300

68

BRG-BALL .750X1.750X.50

Part# 05406300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $27.89

05408300

69

BRG-BALL 1.25X2.18X.63

Part# 05408300

OEM Warranty Repair Part for Ariens

Not available

05502600

70

BSHG-FLG .625X.750X.500X.875BR

Part# 05502600 (Superseded to 05500111)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $3.30

05703700

71

RG-RTNG-EXT .250X.031

Part# 05703700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $6.65

05704300

72

RG-RTNG-EXT 1.250X.050

Part# 05704300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

01014400

73

CLEVIS PIN

Part# 01014400 (Superseded to 03105100)

OEM Warranty Repair Part for Ariens

Not available

05800700

74

PIN-ROLL .250X1.25

Part# 05800700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05900200

75

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900200

76

BLT-HEX .31-18X.63 PL GR 2

Part# 05900200 (Superseded to 05952200)

OEM Warranty Repair Part for Ariens

Not available

05900300

77

BLT-HEX .31-18X1.00 PL GR 2

Part# 05900300 (Superseded to 05946900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05900500

78

BLT-HEX .38-16X1.25 PL GR 2

Part# 05900500 (Superseded to 05958000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

05900500

79

BLT-HEX .38-16X1.25 PL GR 2

Part# 05900500 (Superseded to 05958000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

05900500

80

BLT-HEX .38-16X1.25 PL GR 2

Part# 05900500 (Superseded to 05958000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.85

05900600

81

BLT-HEX .38-16X1.50 PL GR2

Part# 05900600 (Superseded to 05957900)

OEM Warranty Repair Part for Ariens

Not available

05900700

82

BLT-HEX .44-14X1.25 PL GR2

Part# 05900700 (Superseded to 05963800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05900700

83

BLT-HEX .44-14X1.25 PL GR2

Part# 05900700 (Superseded to 05963800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05900700

84

BLT-HEX .44-14X1.25 PL GR2

Part# 05900700 (Superseded to 05963800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06000100

85

SCR-SET .38-16X.50 SKHCUP OH

Part# 06000100

OEM Warranty Repair Part for Ariens

Not available

06300200

86

WSHR-LK .250X.077 HVY PL

Part# 06300200 (Superseded to 06308000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06300300

87

WSHR-LK .312X.097 PL HVY

Part# 06300300 (Superseded to 06307400)

OEM Warranty Repair Part for Ariens

Not available

06300400

88

WSHR-LK .375X.115 HVY PL

Part# 06300400 (Superseded to 06306500)

OEM Warranty Repair Part for Ariens

Not available

06400200

89

WSHR-FL-STL .38X.875X.083 PL

Part# 06400200 (Superseded to 06435700)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

05407000

90

BRG-CUP1.980X.420

Part# 05407000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $16.71

06400300

91

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06400300

92

WSHR-FL-STL .531X1.062X.095 PL

Part# 06400300 (Superseded to 06441900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05403800

93

BRG-NEEDLE .625X.812X.50

Part# 05403800

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $20.07

06404200

94

WSHR-FL-STL .755X2.000X.125

Part# 06404200 (Superseded to 06444800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.53

06404300

95

WSHR-FL-STL.406X.812X.065PL

Part# 06404300 (Superseded to 06436200)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06500100

96

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

06500100

97

NUT-JAM .375-16 PL

Part# 06500100

OEM Warranty Repair Part for Ariens

Not available

06503100

98

NUT-HEX .312-24 PL

Part# 06503100 (Superseded to 06529500)

OEM Warranty Repair Part for Ariens

Not available

06503400

99

NUT-LK-CTR .625-18 PL

Part# 06503400

OEM Warranty Repair Part for Ariens

Not available

06504000

100

NUT-LK-CTR .250-20 PL

Part# 06504000 (Superseded to 06529700)

OEM Warranty Repair Part for Ariens

Not available

06504100

101

NUT-LK TOP 10-24 PL

Part# 06504100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

06504200

102

NUT-LK .312-18 GR A PL

Part# 06504200 (Superseded to 06529800)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06504300

103

NUT-LK-CTR .312-24 PL

Part# 06504300 (Superseded to 06537000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

06505400

104

NUT-LK-CTR .50-20 PL

Part# 06505400 (Superseded to 06530000)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

06600100

105

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06600100

106

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06600100

107

KEY-WDRF .188X.875X.375 SAE11

Part# 06600100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

06700100

108

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700400

109

PIN-COTR .12X1.0 PL

Part# 06700400 (Superseded to 06707100)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700100

110

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06700100

111

PIN-COTR .09X.75 PL

Part# 06700100 (Superseded to 06706900)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

06900100

112

THROTTLE CONTROL

Part# 06900100

OEM Warranty Repair Part for Ariens

Not available

06903200

113

THROTTLE CONTROL

Part# 06903200

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $58.08

05405000

114

BRG-CUP 2.441X.562

Part# 05405000

OEM Warranty Repair Part for Ariens

Not available

07116500

115

T/WHL ASSY

Part# 07116500

OEM Warranty Repair Part for Ariens

Not available

07104900

115

TIRE 4.10/3.50X6 2PLY

Part# 07104900

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $21.80

07105000

115

TUBE

Part# 07105000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $8.89

07105200

115

WHL 6 IN O.D.

Part# 07105200 (Superseded to 07103800)

OEM Warranty Repair Part for Ariens

Not available

07204700

116

V-BELT, SAE 380-RAW EDGE

Part# 07204700

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $23.42

07400100

117

SCR-TAP 10-12X.50 CRPH PL A

Part# 07400100

OEM Warranty Repair Part for Ariens

Not available

07400900

118

SCR-TAP 10-16X1.0 SLHP PL AB

Part# 07400900

OEM Warranty Repair Part for Ariens

Not available

07500600

119

GRIP

Part# 07500600 (Superseded to 07500113)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

07802800

120

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07802800

121

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07802800

122

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07802800

123

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

07802800

124

DISCHARGE CAUTION LABEL

Part# 07802800 (Superseded to 07729600)

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $21.07

01025100

125

RATCHET WHEEL HUB

Part# 01025100

OEM Warranty Repair Part for Ariens

Not available

01025300

126

PAWL

Part# 01025300

OEM Warranty Repair Part for Ariens

Not available

01025400

127

CAP

Part# 01025400

OEM Warranty Repair Part for Ariens

Not available

01025500

128

FRICTION SPRING

Part# 01025500

OEM Warranty Repair Part for Ariens

Not available

01025600

129

RETAIN WASH

Part# 01025600

OEM Warranty Repair Part for Ariens

Not available

01026000

130

WAVE WASHER .406X.750X.063FH

Part# 01026000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $2.18

01028200

131

PAWL HUB

Part# 01028200

OEM Warranty Repair Part for Ariens

Not available

05605300

132

O-RING 3.85X4.27X.210

Part# 05605300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $5.81

05800500

133

PIN-ROLL .188X.88

Part# 05800500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $1.40

05802000

134

PIN-GRV .375X1.00 TP C

Part# 05802000

OEM Warranty Repair Part for Ariens

Not available
