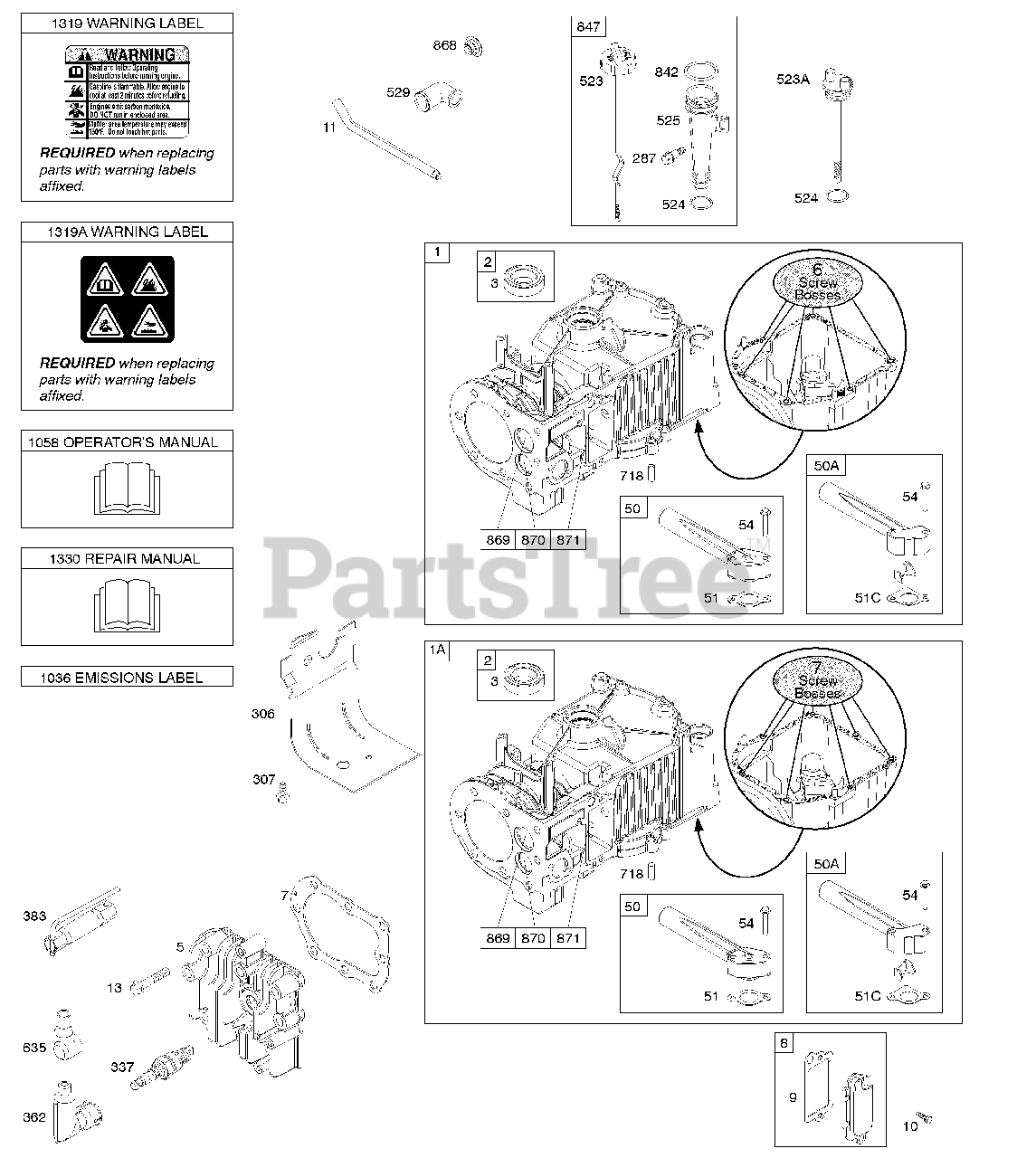

10T802-0708-B1 - Briggs & Stratton Vertical Engine Cylinder, Cylinder Head, Lubrication, Operator's Manual, Warning Label Parts Diagram

Vertical Engine

Cylinder, Cylinder Head, Lubrication, Operator's Manual, Warning Label Parts Diagram

  • Title
1

Briggs & Stratton 699650

Cylinder Assembly

Note: (Engines with 6 Sump Screws)

$151.99

$

Usually ships in 2-12 days

0

1A

Briggs & Stratton 590770

Cylinder Assembly

Note: (Engines with 7 Sump Screws)

$148.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 796961

Kit-Bushing/Seal

Note: (Magneto Side)

$21.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, only 4 left!

0

5

Briggs & Stratton 790169

Head-Cylinder

$

$

Not available

7

Briggs & Stratton 698717

Gasket-Cylinder Head

$5.99

$

In Stock, only 4 left!

0

8

Briggs & Stratton 791781

Breather Assembly

$14.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 695890

Gasket-Breather

$4.49

$

In Stock, Qty 7

0

10

Briggs & Stratton 691666

Screw

Note: (Breather Assembly)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 691245

Tube-Breather

$8.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 691640

Screw

Note: (Cylinder Head)

$3.49

$

In Stock, only 2 left!

0

50

Briggs & Stratton 699644

Manifold-Intake

$13.99

$

In Stock, only 1 left!

0

50A

Briggs & Stratton 792388

Manifold-Intake

$

$

Not available

51

Briggs & Stratton 699649

Gasket-Intake

$4.49

$

In Stock, only 1 left!

0

51C

Briggs & Stratton 792389

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

54

Briggs & Stratton 691111

Screw

Note: (Intake Manifold)

$3.99

$

Usually ships in 2-12 days

0

287

Briggs & Stratton 691002

Screw

Note: (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 690400

Shield-Cylinder

Note: Used Before Code Date 06101100

$6.49

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 690345

Screw

Note: (Cylinder Shield) Used Before Code Date 06101100

$4.99

$

Usually ships in 2-12 days

0

337

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838S

Wrench-Spark Plug

$6.49

$

In Stock, Qty 5

0

$14.99

$

Usually ships in 2-12 days

0

524

$5.49

$

In Stock, Qty 10

0

525

Briggs & Stratton 691320

Tube-Dipstick

$13.99

$

Usually ships in 2-12 days

0

$4.49

$

In Stock, only 3 left!

0

635

Briggs & Stratton 66538S

BOOT, Spark Plug

$3.99

$

In Stock, Qty 20+

0

718

Briggs & Stratton 690959

PIN, Locating

Note: (Cylinder)

$6.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

In Stock, only 1 left!

0

847

Briggs & Stratton 691440

Dipstick/Tube Assembly

$25.99

$

Usually ships in 2-12 days

0

868

$13.99

$

In Stock, only 1 left!

0

869

Briggs & Stratton 699641

Seat-Valve

Note: (Intake)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 699642

Seat-Valve

Note: (Exhaust)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Bushing-Valve Guide

Note: (Intake Valve)

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 699643

Bushing-Valve Guide

Note: (Exhaust Valve)

$8.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available From A Briggs & Stratton Authorized Dealer)

$

$

Not available

1058

Briggs & Stratton 277038

Operator's Manual

$7.49

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0

1330

Briggs & Stratton 270962

Repair Manual

$35.99

$

In Stock, Qty 8

0
