10V362-0031-F1 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

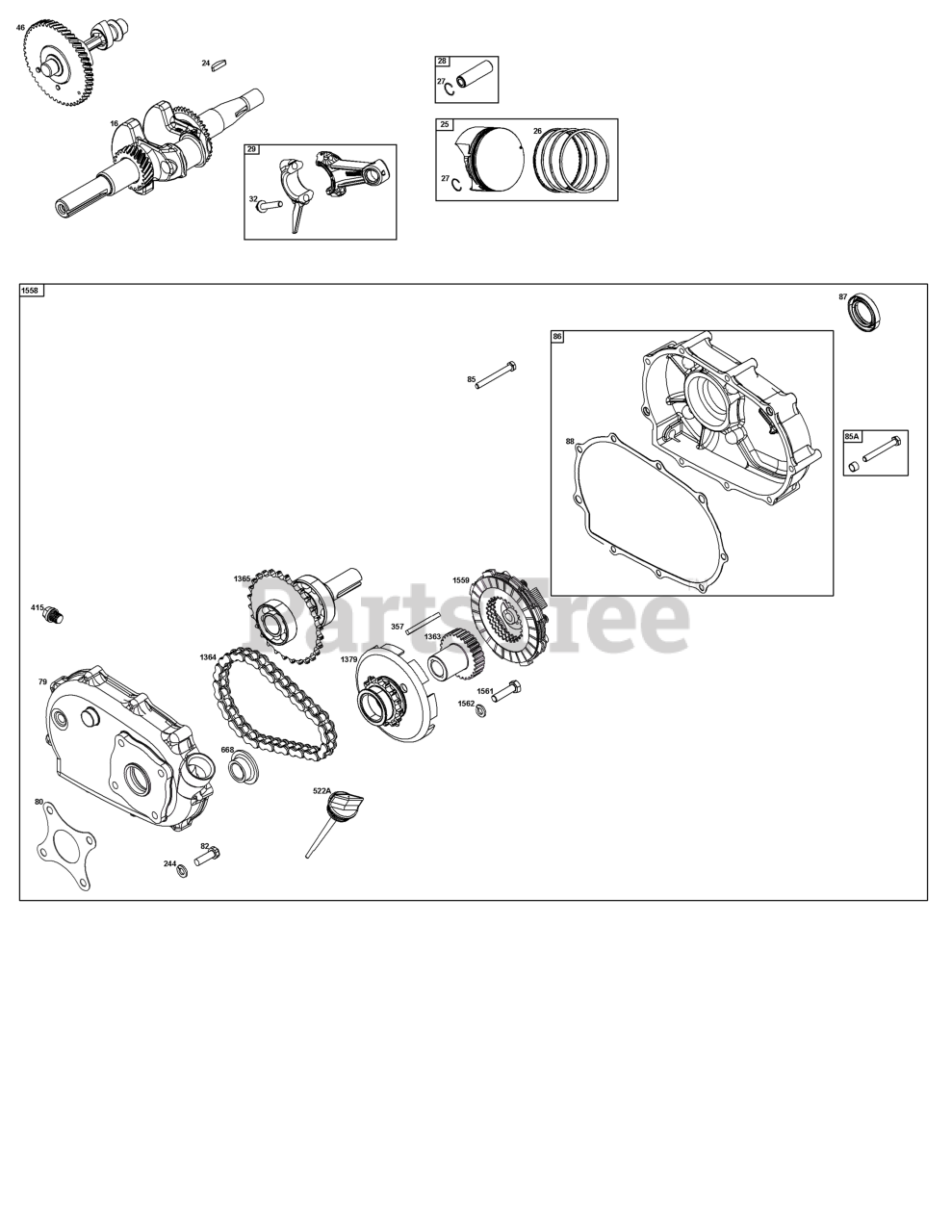

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 84004649

CRANKSHAFT

$136.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 596976

KEY, Flywheel

$5.49

$

In Stock, only 1 left!

0

25

Briggs & Stratton 84004674

PISTON ASSEMBLY

$70.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84005433

PISTON ASSEMBLY

Note: (.020" Oversize)

$74.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84005435

SET, Ring

$34.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 84005437

SET, Ring

Note: (.020" Oversize)

$55.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 596982

LOCK, Piston Pin

$3.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 84005441

PIN, Piston

$11.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 84005444

ROD, Connecting

$35.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 596984

SCREW

Note: (Connecting Rod)

$3.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 84005295

CAMSHAFT

$64.99

$

Usually ships in 2-12 days

0

79

CASE, Gear Reduction

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

80

GASKET, Gear Case

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

82

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

85

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

85A

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

86

COVER, Gear

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

87

SEAL, Gear Reduction

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

88

GASKET, Gear Cover/Housing

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

244

WASHER

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

357

KEY, Drive Pulley

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

415

PLUG

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

522A

PLUG, Dipstick/Fill

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

668

SPACER

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1363

SPROCKET, Gear Reduction

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1364

CHAIN, Gear Reduction

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1365

SHAFT, Output Gear Reduction

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1379

CLUTCH, Drum

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1558

GEAR REDUCTION ASSEMBLY

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1559

CLUTCH ASSEMBLY

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1561

SCREW

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

1562

WASHER

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available
