110-030R047 - MTD Walk-Behind Mower (1990) (Chase Pitkin) Parts Parts Diagram

Walk-Behind Mower

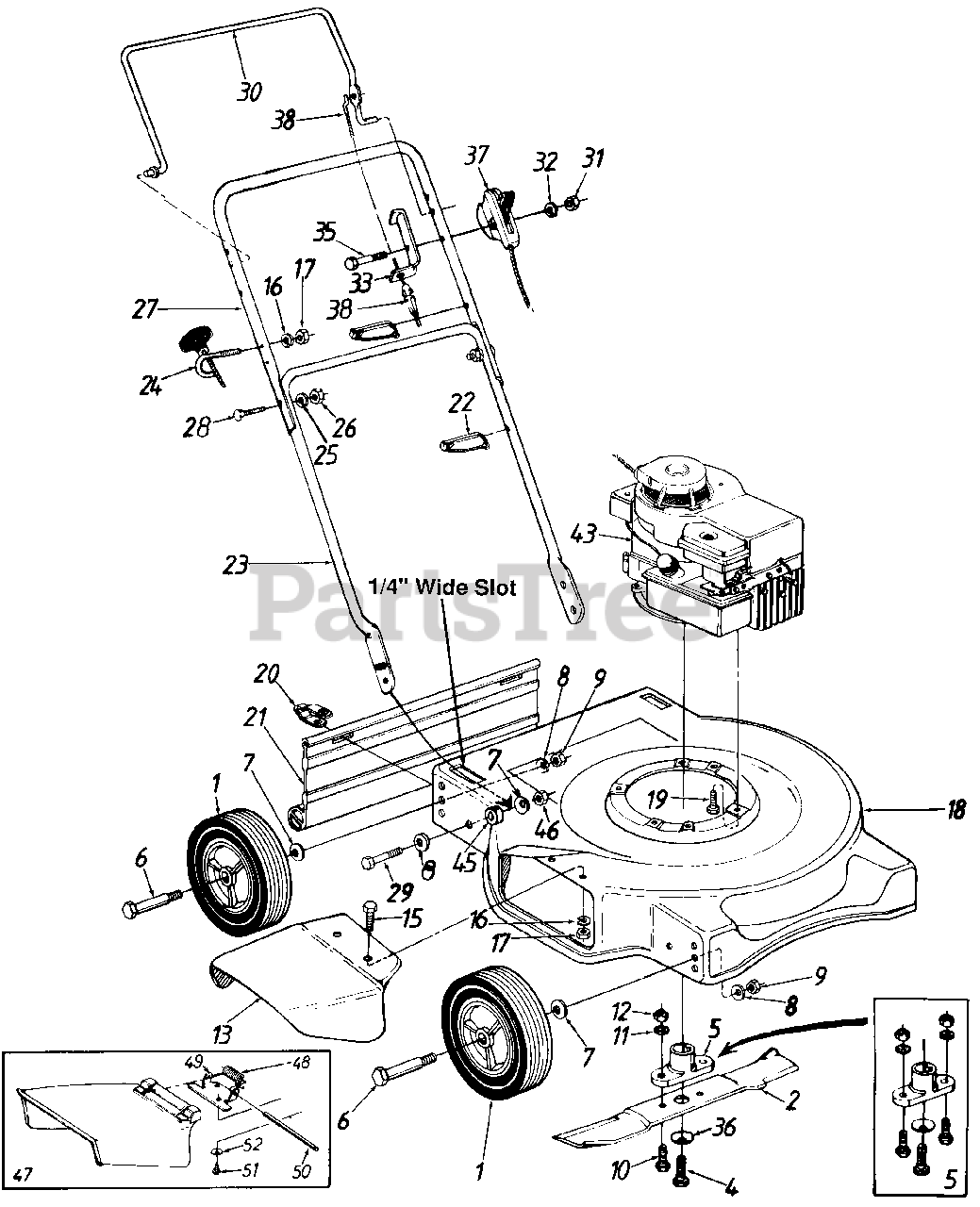

Parts Parts Diagram

  • Title
1

MTD Part# 734-1170

Wheel Ass'y. Complete
Usually ships same day

Not available

$

$

2

MTD Part# 742-0520

20" Blade
(Superseded to 942-0620)
Usually ships same day

Not available

$

$

4

MTD Part# 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.
Usually ships in 1 day

$

$2.79

0

5

MTD Part# 753-0484

Blade Adapter Kit (Keyed)
Usually ships in 1 day

$

$17.22

0

6

MTD Part# 738-0533

Axle Bolt
Usually ships in 5 to 10 days

$

$5.89

0

7

MTD Part# 736-0105

Bell-Wash. .380" I.D. x .88"
Usually ships in 1 day

$

$3.15

0

8

MTD Part# 736-0331

Bell-Wash. .39" I.D. x 1.13"
Usually ships in 1 day

$

$2.78

0

9

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

10

MTD Part# 710-1055

Hex Bolt 3/8-24 x 1" Lg.
Usually ships in 5 to 10 days

$

$3.37

0

11

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

12

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

13

MTD Part# 17322

Chute Deflectort
(Superseded to 931-1034B)
Usually ships in 1 day

$

$51.19

0

15

MTD Part# 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)
Usually ships in 1 day

$

$2.53

0

16

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

17

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

18

MTD Part# 706-14597

20" Deck Ass'y.
Usually ships same day

Currently unavailable

$

$

19

MTD Part# 710-0654A

Hex Wash. Hd. Scr. 3/8-16 x 1" Lg.
Usually ships in 1 day

$

$3.00

0

20

MTD Part# 17098

Hinge Clip
(Superseded to 17098P)
Usually ships in 1 day

$

$3.03

0

21

MTD Part# 731-0872

Rear Flap 16.75" Lg.
(Superseded to 731-0872B)
Usually ships in 5 to 10 days

$

$27.53

0

22

MTD Part# 726-0240

Cable Tie
(Superseded to 725-0157)
Usually ships in 1 day

$

$2.74

0

23

MTD Part# 749-0372B

Lower Handle
(Superseded to 749-0928A)

Note: (Side-Mounted Rope Guide)

Usually ships same day

Not available

$

$

MTD Part# 749-0807

Lower Handle

Note: (Center-Mounted Rope Guide)

Variations

MTD Part# 749-0807-0637

No Longer Available HANDLE-LOW - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

24

MTD Part# 747-0779

Rope Guide
Usually ships same day

Not available

$

$

25

MTD Part# 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

26

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

27

MTD Part# 749-0756A

Upper Handle
Usually ships same day

Not available

$

$

28

MTD Part# 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.
Usually ships same day

Not available

$

$

29

MTD Part# 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.
Usually ships in 1 day

$

$3.23

0

30

MTD Part# 747-0748

Control Handle
Usually ships same day

Not available

$

$

31

MTD Part# 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

32

MTD Part# 736-0175

Spr. Wash. .265" I.D. x .562"
(Superseded to 936-0175)
Usually ships in 1 day

$

$2.79

0

33

MTD Part# 17174

Cable Mounting Bracket
Usually ships same day

Not available

$

$

35

MTD Part# 710-0136

Hex Bolt 1/4-20 x 1.75" Lg.
Usually ships in 1 day

$

$2.91

0

MTD Part# 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

Note: (Used w/o Throttle Control)

Usually ships in 1 day

$

$2.91

0

36

MTD Part# 736-0452

Bell-Wash. .39" I.D.
(Superseded to 936-0452)
Usually ships in 1 day

$

$3.24

0

37

MTD Part# 746-0800

Throttle Control Ass'y. Comp.
(Superseded to 746-0800A)
Usually ships in 5 to 10 days

$

$43.21

0

38

MTD Part# 746-0553

Control Cable-36"
(Superseded to 946-0553)
Usually ships in 1 day

$

$17.99

0

43

Part#

Engine
Usually ships same day

Not available

$

$

Usually ships same day

Not available

$

$

46

MTD Part# 712-0355

Hex L-Nut 3/8-24 Thd.
(Superseded to 912-0355)
Usually ships in 5 to 10 days

$

$3.71

0

47

MTD Part# 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)
Usually ships in 1 day

$

$51.19

0

48

MTD Part# 732-0593

Torsion Spring
(Superseded to 932-0593)
Usually ships in 1 day

$

$3.40

0

49

MTD Part# 17032

Adapter Plate
(Superseded to 17032A)
Usually ships in 1 day

$

$8.96

0

50

MTD Part# 747-0710

Hinge Pin
(Superseded to 747-0710A)
Usually ships in 1 day

$

$3.06

0

51

MTD Part# 710-0599

Hex Self-Tap Scr. 1/4-20 x .5" Lg.
Usually ships in 1 day

$

$3.06

0

52

MTD Part# 736-0270

Beil-Wash 1/4" I.D
Usually ships in 1 day

$

$2.87

0
