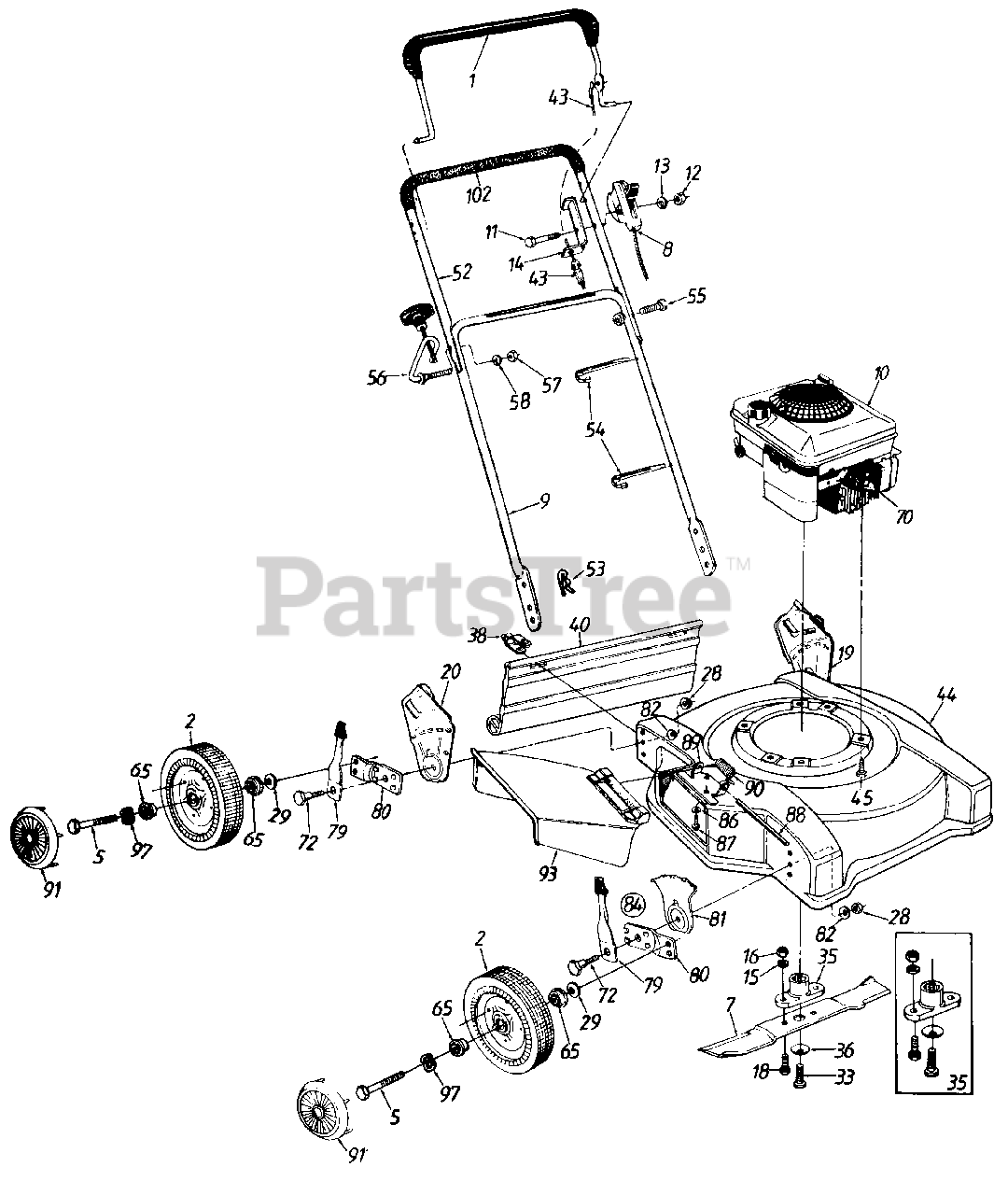

110-204R - MTD Walk-Behind Mower (1990) Rotary Parts Diagram

Walk-Behind Mower

Rotary Parts Diagram

  • Title

1

MTD 731-1135

Control Handle
(Superseded to 747-0748)

$

$

Not available

2

MTD 734-1517A

Wheel Ass'y. Comp.
(Superseded to 734-1517B)

$63.99

$

Usually ships in 3-6 days

0

5

MTD 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

7

MTD 742-0520

20" Blade
(Superseded to 942-0620)

$

$

Not available

8

MTD 746-0820

Throttle Control Ass'y. Comp. 49.6
(Superseded to 946-0821A)

$41.99

$

Usually ships in 3-6 days

0

9

MTD 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

10

Engine

$

$

Not available

11

MTD 710-0501

Hex Bolt 1/4-20 x 2" Lg.

$6.99

$

In Stock, only 1 left!

0

12

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

13

MTD 736-0175

Spr. Wash. .265" I.D. x .562"
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

14

MTD 17174

Cable Mtg. Bracket

$

$

Not available

15

MTD 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

16

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

18

MTD 710-1055

Hex Bolt 3/8-24 x 1.0" Lg.

$4.49

$

Usually ships in 3-6 days

0

19

MTD 706-14642

Wheel Brkt. Ass'y. L.H.

$

$

Currently unavailable

20

MTD 706-14641

Wheel Brkt. Ass'y. R.H.

$

$

Currently unavailable

28

MTD 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$8.99

$

In Stock, Qty 5

0

35

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

36

MTD 736-0453

Bell-Wash. .46" I.D.
(Superseded to 936-0453)

$3.49

$

Usually ships in 3-6 days

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

MTD 731-1028

Rear Flap Ass'y.

$34.99

$

In Stock, only 1 left!

0

43

MTD 746-0553

Control Cable 36"
(Superseded to 946-0553)

$22.99

$

In Stock, only 1 left!

0

44

MTD 706-14656

20" Deck Ass'y.

$

$

Currently unavailable

45

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$3.99

$

Usually ships in 3-6 days

0

52

MTD 748-0756

Upper Handle

$

$

Currently unavailable

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

55

MTD 710-0671

Cuved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

57

MTD 712-0267

Hex Nut 5/16-18 Thd .
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

65

MTD 741-0180

Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

70

MTD 735-0639

Spark Plug Boot

$

$

Not available

72

MTD 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, Qty 20+

0

79

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

80

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

81

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

84

MTD 14578

Front Height Adj. Ass'y. Comp. R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adj. Ass'y. Comp. L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

86

MTD 736-0270

Bell-Wash. .285" I.D. x 75" O.D.

$3.99

$

In Stock, Qty 12

0

87

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x 5" Lg.

$3.99

$

In Stock, Qty 20+

0

88

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$3.99

$

In Stock, Qty 20+

0

89

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 4 left!

0

90

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.49

$

In Stock, only 4 left!

0

91

MTD 731-0982A

Hub Cap
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

93

MTD 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$67.99

$

In Stock, Qty 12

0

97

MTD 736-0232

Wave Washer 53" I.D.

$4.49

$

In Stock, Qty 17

0

MTD 736-0272

Fl-Wash. .51" I.D. x l.0"

$4.49

$

In Stock, Qty 20+

0

102

MTD 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0
