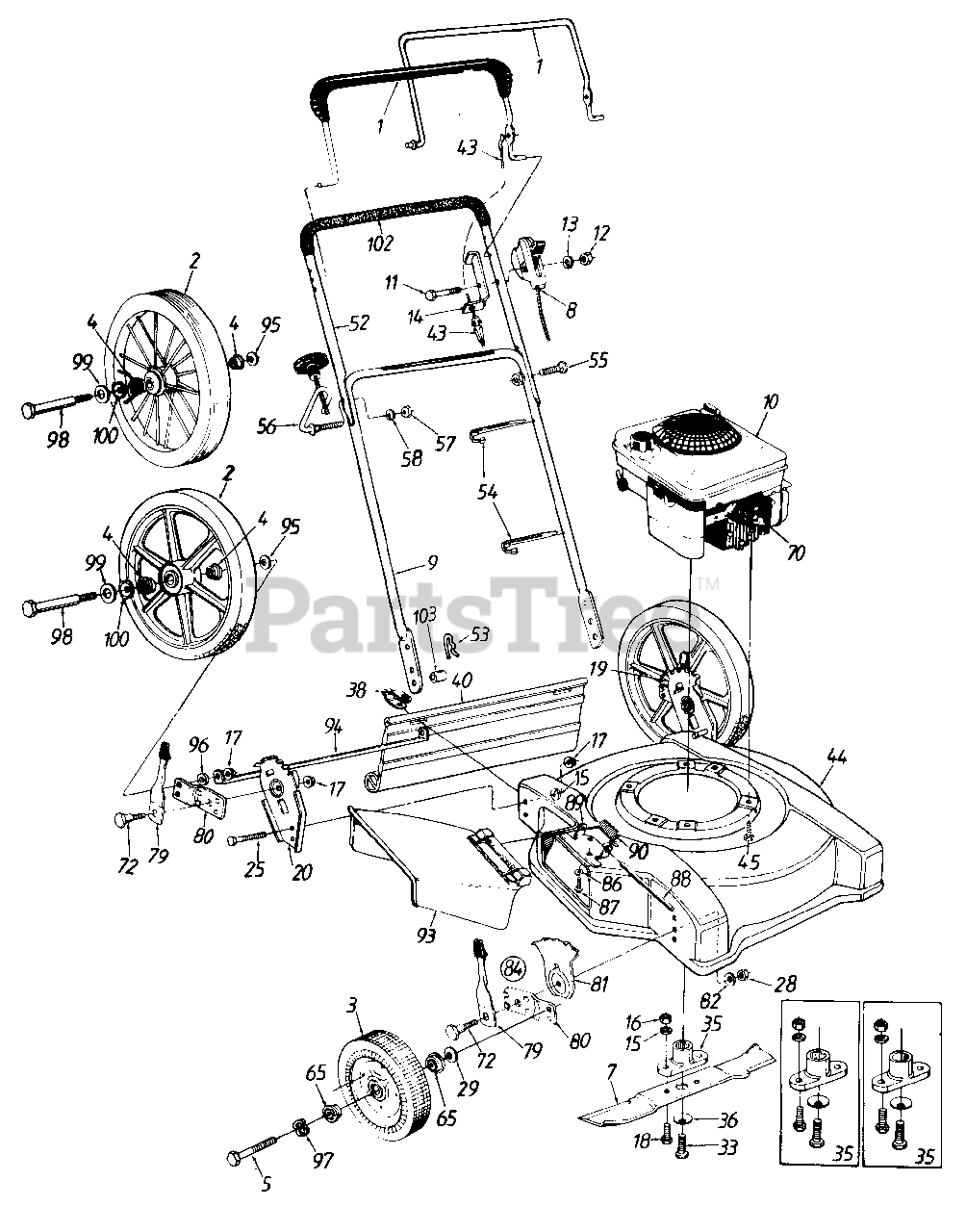

Lawn Hawk 110-508R111 - Lawn Hawk Walk-Behind Mower (1990) (Ernst Home Centers) Parts

Parts Parts

MTD 747-0748

Unavailable

Control Handle

(Std.)

MTD 731-1135

Unavailable

Control Handle

(Deluxe)

Superseded toMTD 747-0748

MTD 734-1653

Unavailable

16" Wheel Ass'y.-Comp. (Plastic)

MTD 734-1661

Unavailable

16" Wheel Ass'y.-Comp. (Steel)

Lawn Hawk

Front Wheel Ass'y.-Comp.

MTD 734-1162A

Unavailable

Waffle Tread (8")

MTD 734-1161A

Unavailable

Waffle Tread (7")

MTD 734-1169

Usually ships in 3 - 6 days

Rib Tread (8")

Superseded toMTD 734-04585

$22.99

MTD 734-1170

Unavailable

Rib Tread (7")

MTD 734-1608

Unavailable

Bar Tread (8")

Superseded toMTD 734-1855

MTD 741-0484

Usually ships in 3 - 6 days

Bearing 1/2" I.D.

Superseded toMTD 941-0484

$7.99

Lawn Hawk

Front Axle Bolt

MTD 738-0102

Unavailable

Axle Bolt

Superseded toMTD 938-0102

MTD 738-0144

Unavailable

Axle Bolt

Superseded toMTD 938-0144

MTD 742-0522

Unavailable

22" Blade

Superseded toMTD 942-0622

MTD 746-0801

In stock, only 2 left!

Throttle Control Ass'y. Comp. 51.6"

Superseded toMTD 946-0802A

$64.99

MTD 746-0820

Unavailable

Throttle Control Ass'y. Comp. 49.6

Superseded toMTD 946-0821A

MTD 749-0815

Currently unavailable

Lower Handle

Lawn Hawk

Engine

MTD 710-0136

In Stock, Qty 10

Hex Bolt 1/4-20 x 1.75" Lg.

$4.49

MTD 710-0501

In stock, only 2 left!

Hex Bolt 1/4-20 x 2" Lg.

$7.99

MTD 712-0287

Unavailable

Hex Nut 1/4-20 Thd.

Superseded toMTD 912-0287

MTD 736-0175

In Stock, Qty 12

Spr. Wash. .265" I.D. x .562"

Superseded toMTD 936-0175

$4.49

MTD 17174

Unavailable

Cable Mtg. Bracket

MTD 736-0169

Unavailable

L-Wash. 3/8" I.D.

Superseded toMTD 936-0169

MTD 712-0241

In stock, only 4 left!

Hex Nut 3/8-24 Thd.

$4.99

MTD 712-0328

In stock, only 4 left!

Hex Nut 3/8-24 Thd.

Superseded toMTD 712-0241

$4.99

MTD 710-1055

Usually ships in 3 - 6 days

Hex Bolt 3/8-24 x 1.0" Lg.

$5.49

MTD 706-14646

Unavailable

Wheel Brkt. Ass'y.-L.H.

MTD 706-14645

Unavailable

Wheel Brkt. Ass'y.-R.H.

MTD 710-0793

Unavailable

Rib Neck Bolt 3/8-24 x .62" Lg.

MTD 712-0798

In Stock, Qty 18

Hex Nut 3/8-16 Thd.

$4.49

MTD 736-0105

In Stock, Qty 13

Bell-Wash. .400" I.D. x .88"

$4.99

MTD 710-1044

In Stock, Qty 12

Hex Bolt 3/8-24 x 1.5" Lg.

$4.49

MTD 710-0757

In Stock, Qty 8

Hex Bolt 7/16-20 x 1.5" Lg.tt

$10.99

MTD 753-0484

In stock, only 2 left!

Blade Adapter Kit (Keyed)

$24.99

MTD 753-0485

Usually ships in 3 - 6 days

Blade Adapter Kit (Splined)

$46.99

MTD 736-0452

In stock, only 1 left!

Bell-Wash. .39" I.D.

$4.99

MTD 736-0453

Usually ships in 3 - 6 days

Bell-Wash. .46" I.D.

Superseded toMTD 936-0453

$3.49

MTD 17098

Unavailable

Hinge Clip

Superseded toMTD 17098P

MTD 731-1029

Unavailable

Rear Flap Ass'y.

MTD 746-0550

In stock, only 3 left!

Control Cable-39"

Superseded toMTD 946-0550

$22.99

MTD 746-0553

Usually ships in 3 - 6 days

Control Cable-36"

Superseded toMTD 946-0553

$25.99

MTD 706-14621

Currently unavailable

22" Deck Ass'y.

MTD 710-0654A

In stock, 20+ on hand

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.99

MTD 749-0756

Unavailable

Upper Handle

Superseded toMTD 749-0756A

MTD 714-0104

Unavailable

Intern. Cot. Pin 5/16" Dia.

Superseded toMTD 914-0104

MTD 726-0240

In stock, only 2 left!

Cable Tie

Superseded toMTD 725-0157

$3.99

MTD 710-0671

Unavailable

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

MTD 710-0842B

Unavailable

Rope Guide Bolt

MTD 712-0267

In stock, 20+ on hand

Hex Nut 5/16-18 Thd.

Superseded toMTD 912-3010

$4.99

MTD 736-0119

In stock, 20+ on hand

L-Wash. 5/16" I.D.

Superseded toMTD 936-0119

$4.99

MTD 741-0180

Usually ships in 3 - 6 days

Ball Bearing 1/2" I.D.

Superseded toMTD 941-0180

$18.99

MTD 735-0639

Unavailable

Spark Plug Boot

MTD 738-0507B

In stock, 20+ on hand

Shoulder Bolt .50" Dia.

$4.99

MTD 14832

In stock, only 1 left!

Spring Lever Ass'y. w/Knob

Superseded toMTD 94832

$11.99

MTD 15262B

In stock, only 1 left!

Pivot Bar

$15.99

MTD 15261A

In stock, only 2 left!

Height Adj. Plate

Superseded toMTD 787-01290A

$12.99

MTD 736-0356

Unavailable

Bell-Wash. .39" I.D. x 1.38"

Superseded toMTD 936-0356

MTD 14578

In stock, only 4 left!

Front Height Adj. Ass'y. Comp.-R.H.

Superseded toMTD 753-06761

$69.99

MTD 14579

In stock, only 4 left!

Front Height Adj. Ass'y. Comp.-L.H.

(Not Shown)

Superseded toMTD 753-06761

$69.99

MTD 736-0270

In stock, 20+ on hand

Bell-Wash. .285" I.D. x .75" O.D.

$4.49

MTD 710-0599

In stock, 20+ on hand

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

MTD 747-0710

In stock, 20+ on hand

Hinge Pin

Superseded toMTD 747-0710A

$4.49

MTD 17032

Unavailable

Adapter Plate

Superseded toMTD 17032A

MTD 732-0593

In stock, only 2 left!

Torsion Spring

Superseded toMTD 932-0593

$5.49

MTD 731-1034

Unavailable

Chute Deflector Ass'y. Comp.

Superseded toMTD 931-1034B

MTD 706-14647

Unavailable

Stabilizer Tube

MTD 736-0331

In Stock, Qty 8

Bell-Wash. .39" I.D. x 1.13

$3.99

MTD 750-0796

Unavailable

Spacer .503" I.D. x .75"

MTD 736-0232

In Stock, Qty 17

Wave Washer .53" I.D.

$4.99

MTD 738-0822

Usually ships in 3 - 6 days

Rear Axle Bolt

Superseded toMTD 938-0822

$10.99

MTD 736-0272

Unavailable

Fl-Wash. .51" I.D. x 1.0"

Superseded toMTD 936-0272

100

MTD 736-0182

In stock, only 1 left!

Spr. Wash. .5" I.D. x 1.0"

$4.99

102

MTD 720-0226

Usually ships in 3 - 6 days

Foam Grip

(Optional)

Superseded toMTD 720-0295

$35.99

103

MTD 750-0503

Unavailable

Spacer

(Not used on all models)

Superseded toMTD 950-0503
