1100 (2050590U) - Cub Cadet Garden Tractor Brakes & Connections Parts Diagram

Garden Tractor

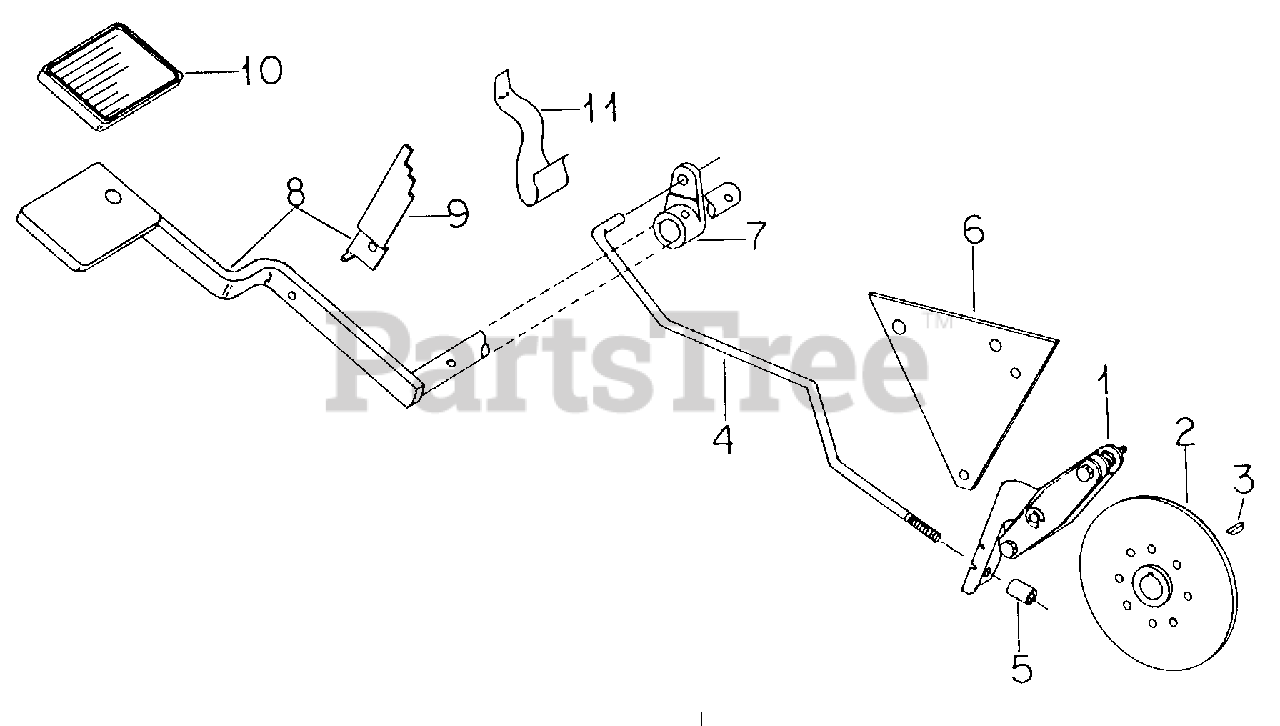

Brakes & Connections Parts Diagram

  • Title

1

Cub Cadet 761-3000

Brake Assy, Caliper

Note: (Refer to caliper brake assy for list of components)

$

$

Not available

Cub Cadet 712-0107

Nut, 1/4-20 Znd Hex Lock
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 750-3008

Washer, .281 X .750 X .105

$

$

Currently unavailable

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.49

$

In Stock, only 2 left!

0

2

Cub Cadet 761-3001

Disc & Hub

$

$

Not available

3

Cub Cadet 714-0868

Key, 3/16 X 3/4 Woodruff 9
(Superseded to 914-0868)

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 747-3000

Rod, Brake

$

$

Not available

5

Cub Cadet 750-3024

Spacer, .493 X .675 X 1.00 Pipe

$

$

Not available

Cub Cadet 736-0140

Washer, .406 X .812 X .051

$6.99

$

In Stock, Qty 9

0

Cub Cadet 712-0375

Nut, 3/8 Cad P/T Lock Type 1

$4.49

$

In Stock, Qty 12

0

Cub Cadet 714-0474

Pin, 1/8 X 3/4 Pln Cot

$4.49

$

In Stock, Qty 16

0

6

~NLA

Support, Plate Brake (Spacer)

$

$

Not available

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet 712-0798

Nut, 3/8 Type 5

$3.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 759-3010

Lever, Brake Rod
(Superseded to 959-3010)

$

$

Not available

8

Cub Cadet 759-3110

Pedal Assy, Clutch

$

$

Not available

9

Cub Cadet 703-0006

Ratchet

$

$

Not available

~NLA

Rivet, 1/4 X 11/16 F/Hd Solid

$

$

Not available

Cub Cadet 736-3001

Washer, Spring

$

$

Not available

10

Cub Cadet 724-3000

Pad, Pedal
(Superseded to 924-3000)

$18.99

$

In Stock, Qty 9

0

11

Cub Cadet 732-3000

Spring, Switch Operating
(Superseded to 932-3000)

$

$

Not available

Cub Cadet 715-3018

Pin, 1/4 X 1-3/8 Med Pln Coil Spring
(Superseded to 915-3000)

$

$

Not available

Cub Cadet 726-3000

Nut, Spring Retaining

$

$

Not available
