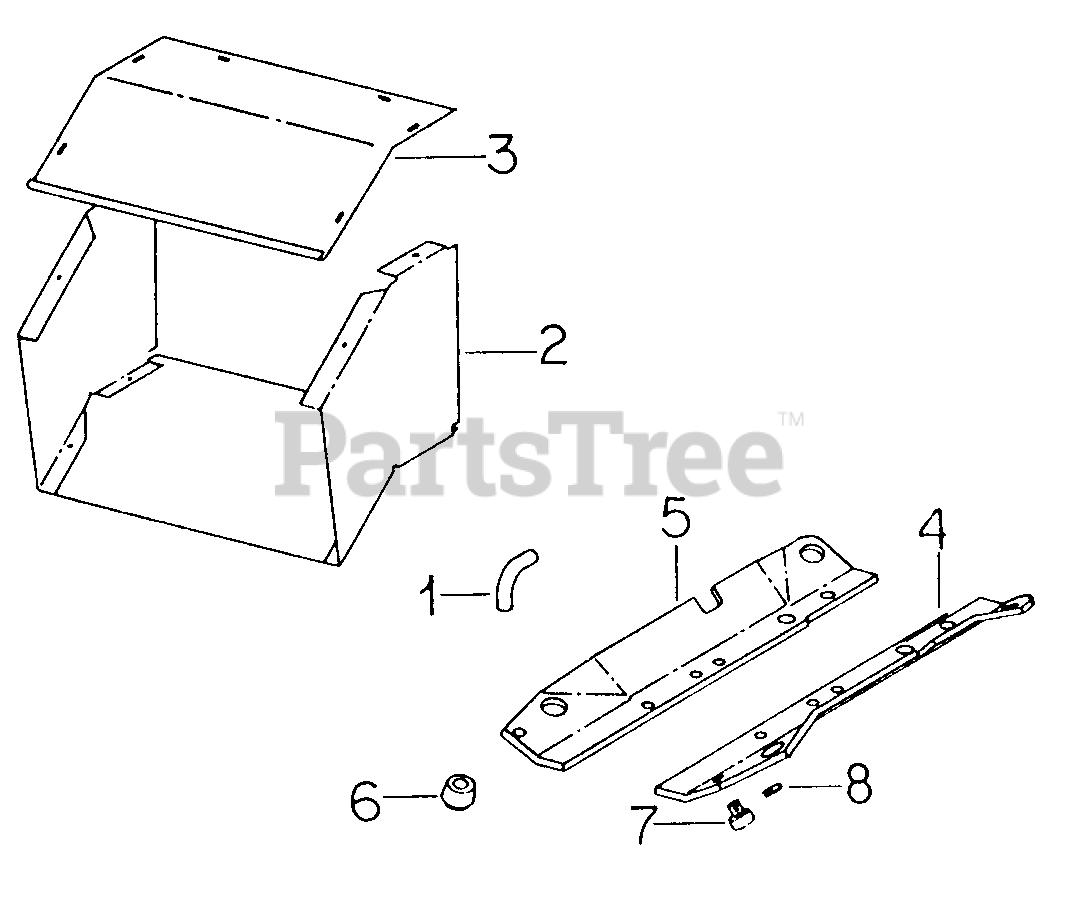

1100 (2050590U) - Cub Cadet Garden Tractor Engine Mounting & Air Duct Parts Diagram

Garden Tractor

Engine Mounting & Air Duct Parts Diagram

  • Title

1

Cub Cadet 751-3000

Pipe, Oil Drain

$

$

Not available

1

Cub Cadet 751-3001

Plug, 1/4-18 Automotive Hex Hd Pipe

$

$

Not available

2

~NLA

Duct Assy, Air

$

$

Not available

2

Cub Cadet 710-0599

Screw, 1/4-20 X 1/2 Hex Hd Flange Lock

Note: Replaces IH-161108-C1

$3.99

$

In Stock, Qty 20+

0

3

~NLA

Top, Air Duct

$

$

Not available

3

Cub Cadet IH-117584-C2

Screw, No. 10-32 X 3/8 Znd Hd Flange Lock

Note: Replaces IH-117584-C1

$

$

Not available

4

Cub Cadet 703-0042-0637

Frame, Engine Mount LH

$

$

Not available

5

Cub Cadet 703-0043-0637

Frame, Engine Mount RH

$

$

Not available

6

Cub Cadet 759-3952

Mounting Kit, Engine

Note: Replaces IH-61509-C2, also order 912-3000

$37.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3011

Bolt, 3/8 X 2-1/4 Type 5

$6.49

$

In Stock, Qty 20+

0

6

Cub Cadet 912-3000

Nut, 3/8 Cad P/T Lock Type 5
(Superseded to 712-3000)

Note: Do not over-torque

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet IH-61510-C1

Bumper, Snubbing Mount

Note: Replaces 722-3004

$25.99

$

In Stock, only 4 left!

0

8

Cub Cadet 703-0044

Shim, Snubbing Mount

Note: or as required

$

$

Not available

8

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.49

$

In Stock, Qty 20+

0
