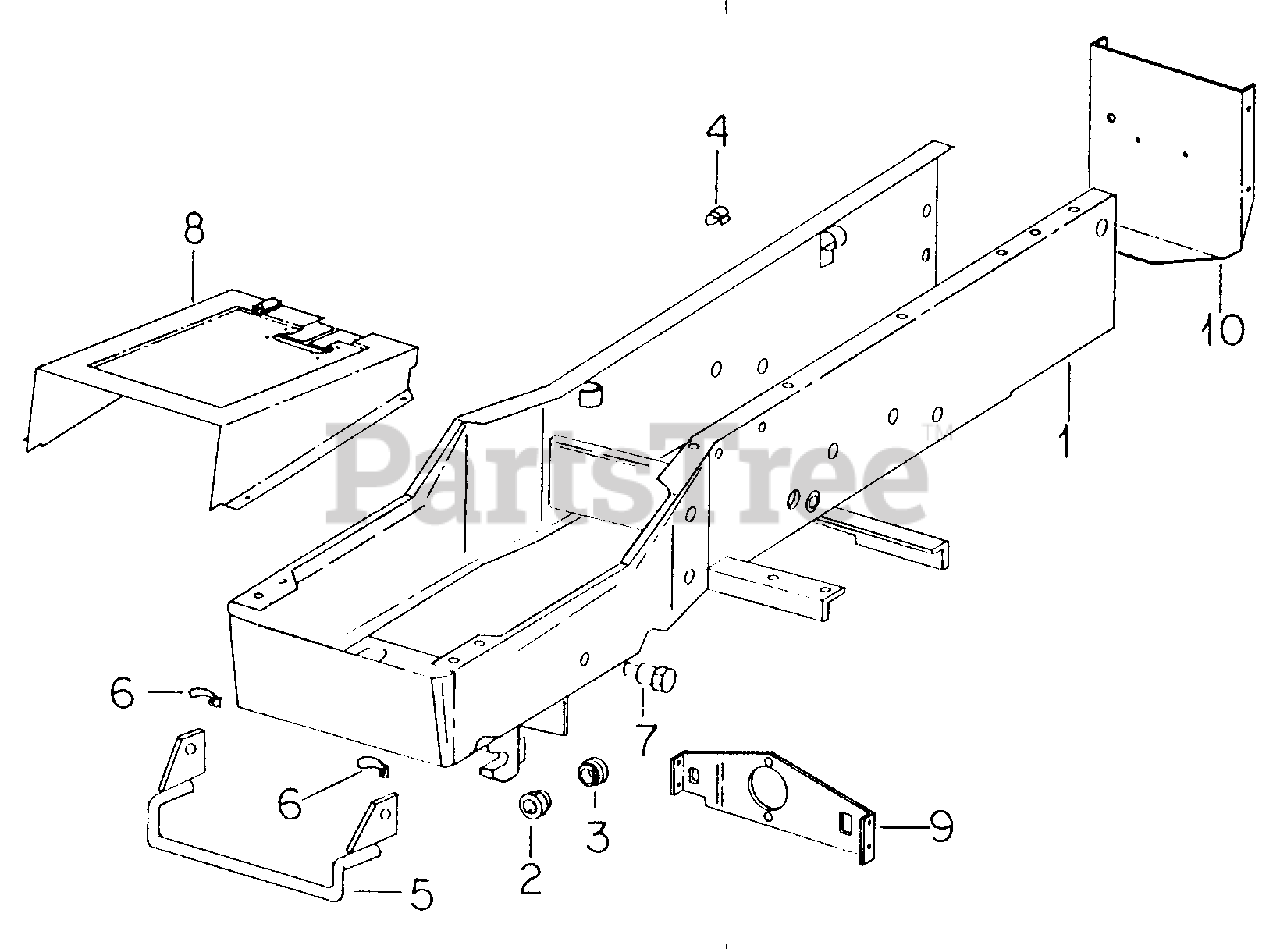

1100 (2050590U) - Cub Cadet Garden Tractor Frame & Hitches Parts Diagram

Garden Tractor

Frame & Hitches Parts Diagram

  • Title

1

~NLA

Frame Assy, Main

$

$

Not available

2

Cub Cadet IH-384837-R1

Bushing, Front Axle Pivot Pin

$

$

Not available

3

Cub Cadet 711-3005

Bushing, Front Axle Pivot Pin Rear

$13.99

$

Usually ships in 3-6 days

0

4

~NLA

Clip, Cable

$

$

Not available

5

Cub Cadet IH-544170-R1

Hitch Assy, Quick

$

$

Not available

Cub Cadet 711-3010

Pin, 3/8 X 1.060 Clevis
(Superseded to 911-3010)

$

$

Not available

Cub Cadet 714-0507

Pin, 3/32 X 3/4 Cot

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet IH-402344-R3

Spring, Latch
(Superseded to IH-402344-R4)

$

$

Not available

7

Cub Cadet 738-3001

Bolt, Implement Mtg Shoulder

$

$

Not available

Cub Cadet 736-0272

Washer, Implement Mtg

$4.49

$

In Stock, Qty 20+

0

8

~NLA

Cover Assy, Frame w/Product Graphic

$

$

Not available

~NLA

Product Graphic, Caution

$

$

Not available

~NLA

Rivet, Pop

$

$

Not available

Cub Cadet 714-0115

Pin, 1/8 X 1 Cot

$3.99

$

In Stock, only 1 left!

0

Cub Cadet 710-3007

Screw, No. 12 X 3/8 H/Whd Tap

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 703-0035

Bracket, Angle Drive

$

$

Not available

Cub Cadet 710-0118

Bolt, 5/16 X 3/4 Type 5
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

Cub Cadet 712-3004

Nut, 5/16 Flange Lock
(Superseded to 712-3004A)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet 703-0036

Drawbar Assy

Variations

Cub Cadet 703-0036-0498

BAR ASSEMBLY-D - OLD CUB YELLOW (0498)

$

$

Not available

$

$

Cub Cadet 710-3000

Bolt, 3/8 X 3/4 Type 5
(Superseded to 710-0216)

$3.99

$

In Stock, Qty 17

0

Cub Cadet 736-3004

Washer, .406 X .875 X .105

$4.49

$

In Stock, Qty 19

0

Washer, .406 X 1.250 X .090 Pln

Note: (Common Hardware, Purchase Locally)

$

$

Not available
