1100 (2050590U) - Cub Cadet Garden Tractor Fuel Tank & Mounting Parts Diagram

Garden Tractor

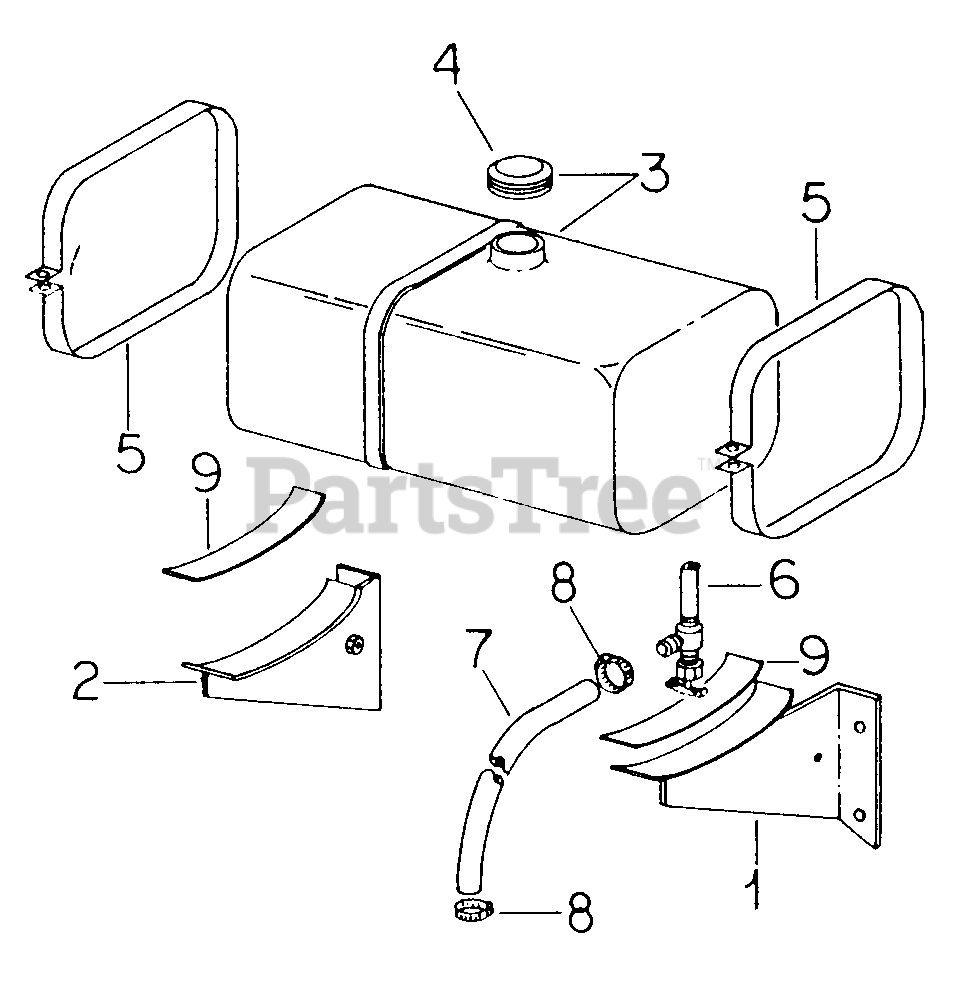

Fuel Tank & Mounting Parts Diagram

  • Title

1

Cub Cadet IH-547732-R1

Bracket Assy, Tank LH

$

$

Currently unavailable

Cub Cadet 710-3039

Screw, 5/16 X 1/2 Type 5

$

$

Not available

2

~NLA

Bracket Assy, Tank RH

$

$

Not available

Cub Cadet 710-3039

Screw, 5/16 X 1/2 Type 5

$

$

Not available

3

Cub Cadet KH-235935

Tank, Fuel

$

$

Not available

4

Cub Cadet KH-236655

Cap, Fuel Filler

$

$

Not available

5

Cub Cadet KH-A-236942

Strap, Fuel Tank

$

$

Not available

Bolt, 1/4 X 1-1/4 Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet IH-20244-R1

Nut, 1/4 P/T Lock Type 5

$

$

Not available

6

Cub Cadet 751-3015

Valve, Shutoff
(Superseded to 951-3015)

$30.99

$

In Stock, only 4 left!

0

7

Cub Cadet IH-427682-C1

Hose, Fuel & Oil

$

$

Currently unavailable

8

Cub Cadet IH-210511-R1

Clamp, 1/2 Inch Dia Type E Hose

$

$

Not available

9

Cub Cadet IH-404831-R1

Pad, Fuel Tank

$

$

Not available
