1100 (2050590U) - Cub Cadet Garden Tractor Grille Parts Diagram

Garden Tractor

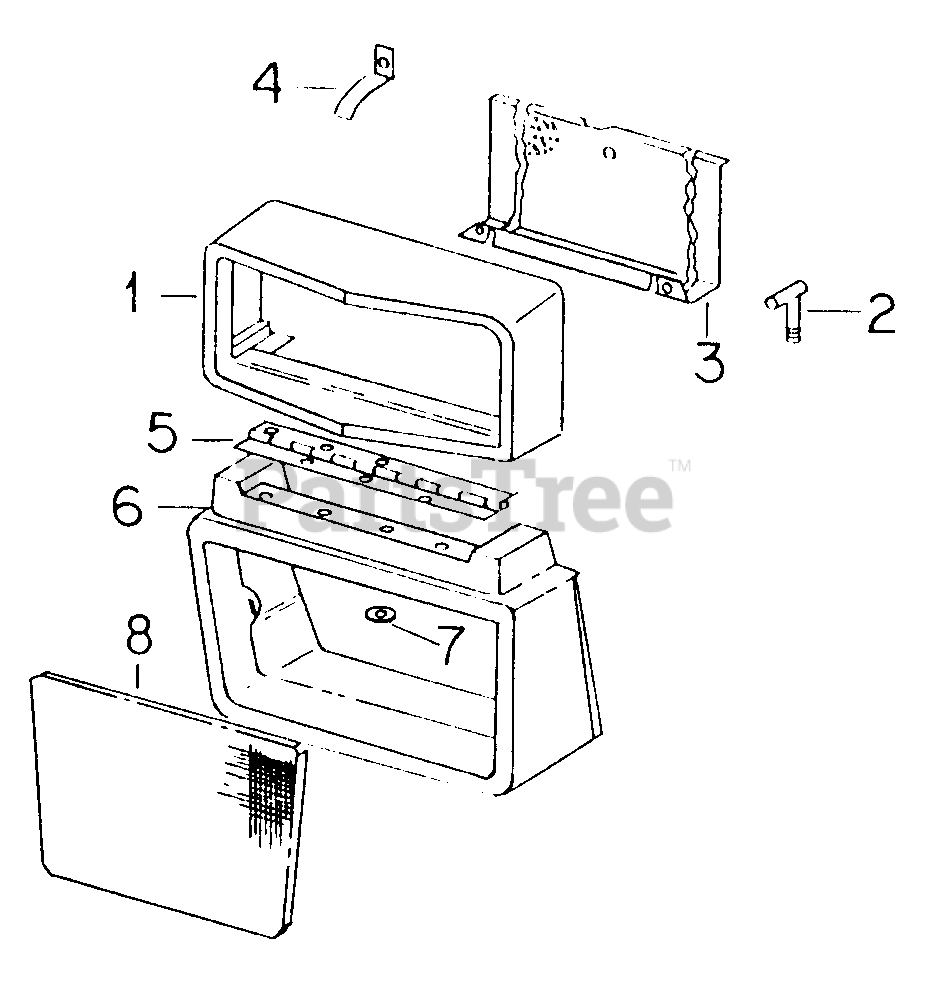

Grille Parts Diagram

  • Title

1

Cub Cadet IH-61294-C1

Grille, Hood Extension

$

$

Not available

2

Cub Cadet IH-545522-R1

Bolt, Tee
(Superseded to IH-545522-R2)

$

$

Not available

Cub Cadet 712-3006

Nut, 1/4 Type 5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 736-0463

Washer, .281 X .625 X .051

$4.49

$

In Stock, only 2 left!

0

Cub Cadet 710-3021

Screw, 5/16 X 5/8 H/Hd Tap

$

$

Not available

3

Cub Cadet IH-61418-C1

Panel, Grille

$

$

Not available

4

Cub Cadet IH-106617-C2

Clip, Panel Retainer

$

$

Not available

5

Cub Cadet IH-106254-C1

Hinge, Hood

$

$

Not available

Cub Cadet 710-3021

Screw, 5/16 X 5/8 H/Hd Tap

$

$

Not available

Cub Cadet 736-0275

Washer, .344 X .688 X .051

$6.49

$

Usually ships in 3-6 days

0

6

~NLA

Housing, Grille

$

$

Not available

Cub Cadet 710-3005

Bolt, 3/8 X 1-1/4 Type 5

$3.99

$

In Stock, Qty 20+

0

Cub Cadet IH-614452-R1

Washer, .406 X 1.250 X .090
(Superseded to 936-0133)

$

$

Not available

7

Cub Cadet 736-3055

Washer, Ground Strap
(Superseded to 936-3055)

$8.49

$

In Stock, only 2 left!

0

8

Cub Cadet IH-73484-C1

Insert, Grille

$

$

Not available

Cub Cadet IH-27095-R1

Screw, No. 10 x 1 Phc P/Hdcr Mach

$

$

Not available

Cub Cadet IH-118676

Washer, .219 X .500 X .036 Phc
(Superseded to 936-0142)

$4.49

$

In Stock, only 1 left!

0

Cub Cadet 712-0998

Nut, No. 10 Cad P/T Lock Type 5

$3.49

$

Usually ships in 3-6 days

0
