1100 (2050590U) - Cub Cadet Garden Tractor Right Angle Drive Parts Diagram

Garden Tractor

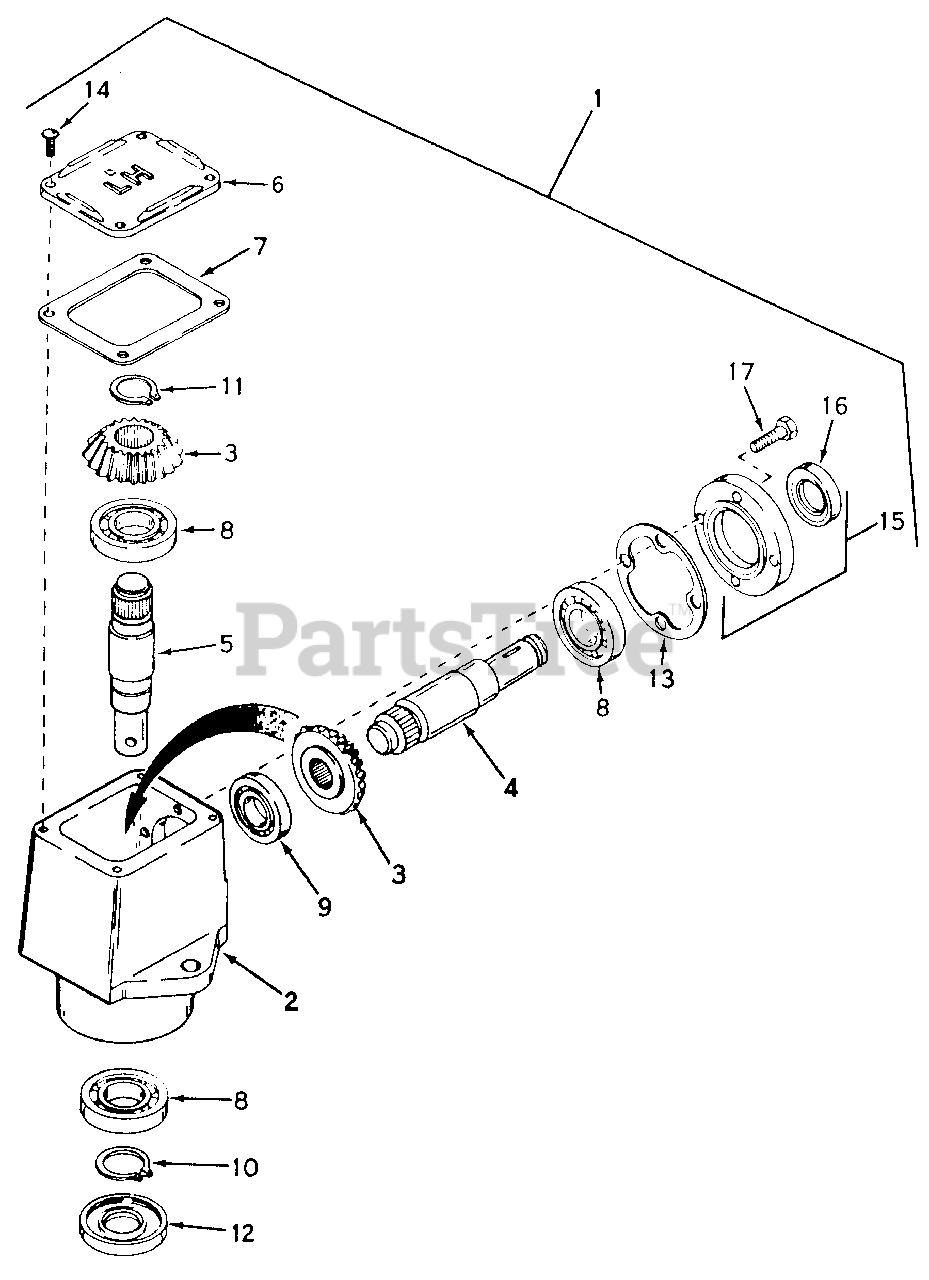

Right Angle Drive Parts Diagram

  • Title

1

Cub Cadet TC-794233

Drive, Right Angle

$

$

Currently unavailable

2

Cub Cadet TC-770026A

Housing, Right Angle Drive

$131.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-778046

Gear, Miter

$44.99

$

Usually ships in 3-12 days

0

4

Cub Cadet TC-776188

Shaft, Input

$

$

Not available

5

Cub Cadet TC-776187

Shaft, Output

$

$

Not available

6

Cub Cadet TC-772035

Cover, Housing

$

$

Not available

7

Cub Cadet TC-788028

Gasket, Cover

$5.99

$

In Stock, Qty 20+

0

8

Cub Cadet TC-780034

Bearing Assy, Ball

$48.99

$

In Stock, only 2 left!

0

9

Cub Cadet TC-780024

Bearing Assy, Ball

$48.99

$

In Stock, only 2 left!

0

10

Cub Cadet 716-3014

Ring, Snap

$

$

Not available

11

Cub Cadet 716-3001

Ring, Snap

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet TC-788029

Seal, Oil
(Superseded to TC-788029A)

$11.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-788030

Gasket, Cap
(Superseded to TC-788030B)

$5.99

$

In Stock, only 2 left!

0

14

Cub Cadet TC-792025

Screw, 10-24 X 1/2 Rd Hd Self-Tapping

$4.49

$

In Stock, only 4 left!

0

15

Cub Cadet TC-786029

Cap & Seal Assy, Retainer

$39.99

$

In Stock, only 2 left!

0

16

Cub Cadet TC-788031

Seal, Oil

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet TC-792026

Bolt, 1/4 X 7/8 Type 5

$4.49

$

Usually ships in 3-12 days

0
