11000 B - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 059000001 - 059999999) (1995) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

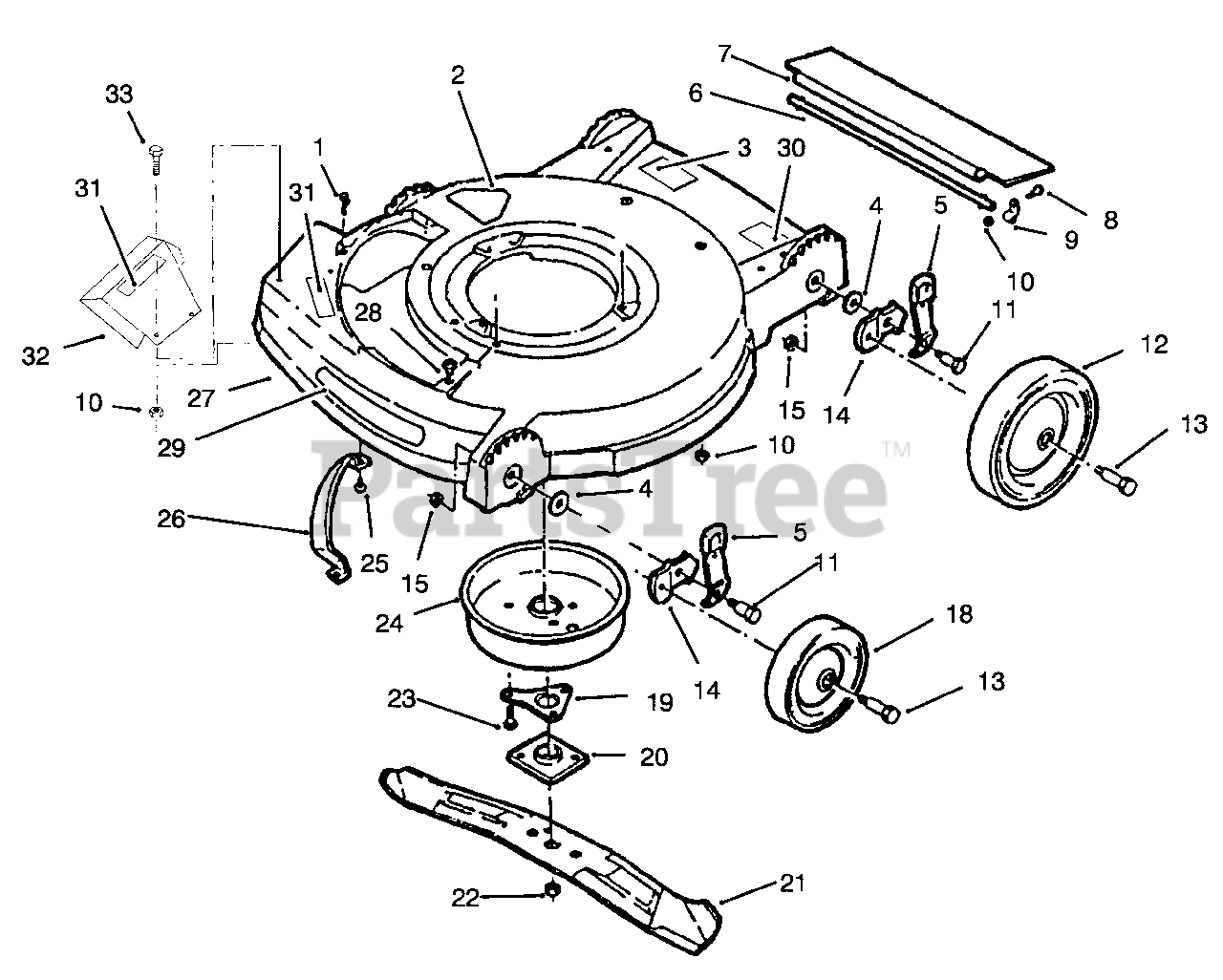

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 614677

Screw-Sems, Plate Cover

$3.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 92-9077

Decal-DIN

$

$

Not available

3

Lawn-Boy 93-6657

Decal-Danger

$25.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 608834

Washer

$15.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 153444

Knob & Spring-Adj.

$

$

Not available

6

Lawn-Boy 608174

Rod-Shield, Trailing

$

$

Not available

7

Lawn-Boy 611016

Shield-Trailing

$95.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 321-3

Screw

$1.49

$

In Stock, Qty 10

0

9

Lawn-Boy 608161

Clamp-Rod, Shield

$10.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 610646

Bolt-Shoulder

$6.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 92-8889

Wheel-Rear, 8"

$144.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 603567

Bolt-Wheel

$13.99

$

In Stock, only 3 left!

0

14

Lawn-Boy 608833

Bracket-Wheel Adj.
(Superseded to 608833-03)

$22.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 92-8888

Wheel-Front,6"

$

$

Not available

19

Lawn-Boy 609786

Plate-Support, Crankshaft

$20.99

$

In Stock, only 2 left!

0

20

Lawn-Boy 677525

Collar & Plate

$23.99

$

In Stock, Qty 11

0

21

Lawn-Boy 612543

Blade-21"
(Superseded to 612543-03)

$29.99

$

In Stock, Qty 20+

0

22

Lawn-Boy 603164

Nut-Blade
(Superseded to 121-3611)

$5.99

$

In Stock, Qty 7

0

23

Lawn-Boy 609471

Screw-Plate to Muffler Cover

$4.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 682876

Cover-Muffler

$143.99

$

In Stock, only 2 left!

0

25

Lawn-Boy 46-6811

Screw-Toe Bar to Housing

$3.49

$

In Stock, Qty 7

0

26

Lawn-Boy 608175

Toe Bar

$75.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 16-9619

Assembly-Housing (Incl. Ref.#2, 3, & 31)

$

$

Not available

28

Lawn-Boy 604604

Grommet
(Superseded to 94-1610)

$0.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 92-8838

Decal-Deck 550C

$

$

Not available

30

Lawn-Boy 66-2000

Decal-Noise

$

$

Not available

31

Lawn-Boy 93-6667

Decal-Warning

$

$

Not available

32

Lawn-Boy 93-7415

Guard-Plate

$

$

Not available

33

Lawn-Boy 32105-15

Screw-Hex Hd.

$2.99

$

In Stock, Qty 15

0
