11001 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

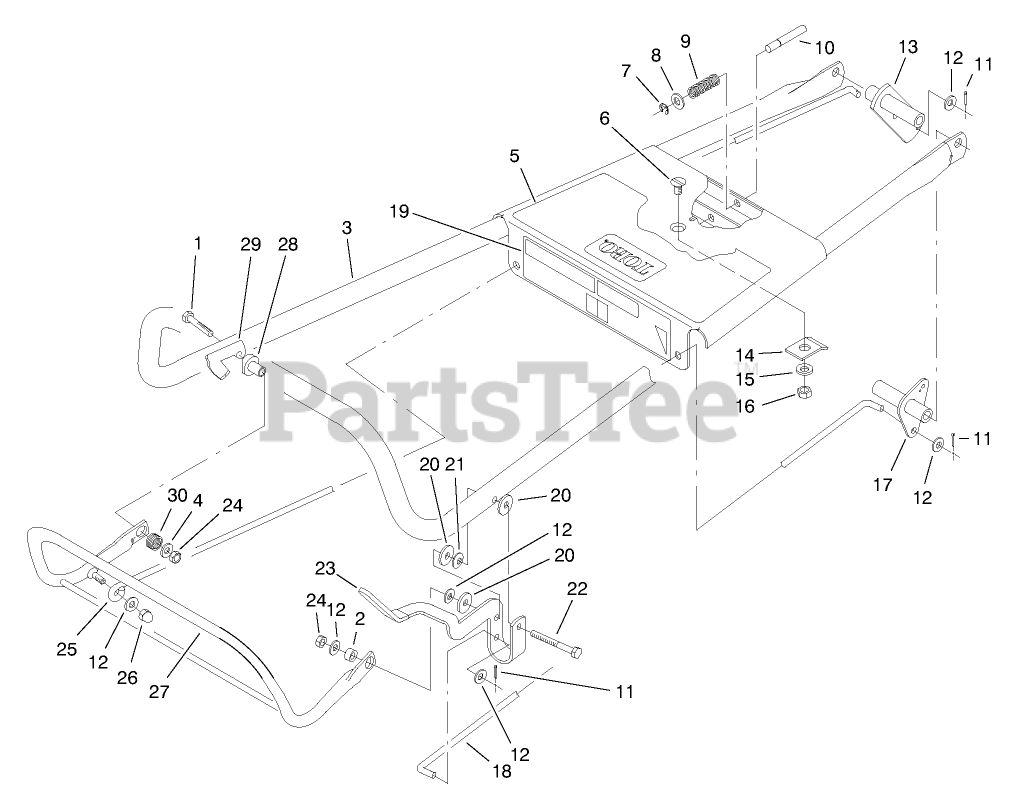

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3230-29

SCREW-CARR

$2.99

$

In Stock, Qty 5

0

2

Toro 94-9440

Handle-Section Lower (Incl. Ref. #25)

$

$

Not available

3

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 20+

0

5

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 13

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 92-9665

SCREW-TAP

$1.99

$

In Stock, Qty 11

0

8

Toro 92-1078

BRAKE CAM

$52.99

$

Usually ships in 3-6 days

0

9

Toro 92-1094

BRACKET-STOP, BAIL

$36.99

$

Usually ships in 3-6 days

0

12

Toro 92-5412

STOP-PIVOT
(Superseded to 107-0757)

$4.49

$

In Stock, Qty 20+

0

13

Toro 92-1617

SP CONTROL BAIL
(Superseded to 92-1001-03)

$50.99

$

Usually ships in 3-6 days

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 613050

BOLT

$11.99

$

In Stock, only 1 left!

0

16

Toro 93-3683

CABLE - THROTTLE

$82.99

$

In Stock, only 1 left!

0

18

Toro 94-6301

DECAL - CONTROL PANEL

$

$

Not available

20

Toro 92-8926

CONTROL - GROUND SPEED

$79.99

$

In Stock, only 1 left!

0

21

Toro 94-9439

Panel-Control (Incl. Ref. #18, & 24)

$

$

Not available

23

Toro 92-1093

BAIL-ENGINE CONTROL

$

$

Not available

24

Toro 94-6300

DECAL - CONSOLE

$59.99

$

Usually ships in 3-6 days

0

25

Toro 93-7266

DECAL - OPERATION

$

$

Not available

26

Toro 93-3248

CABLE - CONTROL

$95.99

$

In Stock, only 1 left!

0

27

Toro 612824

CLIP-STARTER

$3.99

$

In Stock, Qty 13

0

28

Toro 612825

HANDLE-START
(Superseded to 81-1630)

$18.99

$

In Stock, Qty 6

0

29

Toro 93-7383

GUIDE-ROPE
(Superseded to 86-9671)

$4.49

$

In Stock, Qty 16

0

30

Toro 92-2268

SCREW-HANDLE

$2.99

$

In Stock, only 2 left!

0

31

Toro 92-2928

BRACKET-ANCHOR, CABLE

$13.99

$

Usually ships in 3-6 days

0

32

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

33

Toro 92-1092

Handle-Upper
(Superseded to 92-1092-05)

$151.99

$

Usually ships in 3-6 days

0

35

Toro 609739

WASHER-CURVED

$3.49

$

In Stock, Qty 10

0

36

Toro 92-7899

Bracket-Traction Cable
(Superseded to 92-7899-03)

$9.99

$

Usually ships in 3-6 days

0

37

Toro 92-6518

TRACTION CABLE ASM

$43.99

$

In Stock, Qty 9

0

46

Toro 321-51

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

49

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

51

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
