11001 - Toro Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

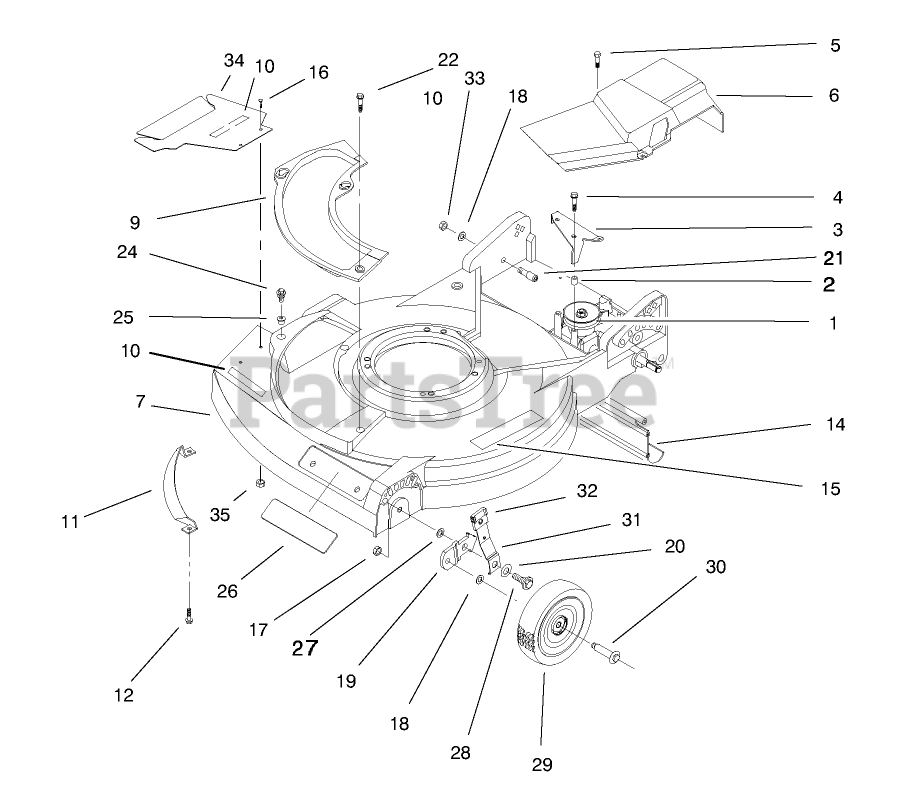

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 92-7869

GEAR CASE ASM

$

$

Not available

2

Toro 256-251

BUSHING

$3.49

$

Usually ships in 3-6 days

0

3

Toro 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$11.99

$

Usually ships in 3-6 days

0

4

Toro 92-7748

SCREW
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 16

0

5

Toro 12-5450

SCREW

$8.99

$

In Stock, only 2 left!

0

6

Toro 92-8852

COVER - DRIVE
(Superseded to 104-7662)

$77.99

$

Usually ships in 3-6 days

0

7

Toro 94-9438

Housing (Incl. Ref. #10, & 15)

$

$

Not available

9

Toro 607560

CoverPlate
(Superseded to 95-7052)

$30.99

$

In Stock, only 2 left!

0

10

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, Qty 8

0

11

Toro 608175

BAR-TOE

$75.99

$

Usually ships in 3-6 days

0

12

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, Qty 7

0

14

Toro 92-7736

SHIELD-TRAILING

$39.99

$

In Stock, Qty 5

0

15

Toro 93-4105

DECAL-DANGER
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

16

Toro 32105-15

SCREW-HWH

$2.99

$

In Stock, Qty 15

0

17

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

19

Toro 614637

Bracket-H.
(Superseded to 95-7403-03)

$

$

Not available

20

Toro 3290-413

WASHER-BELLEVILLE

$4.99

$

Usually ships in 3-6 days

0

21

Toro 92-9673

BOLT-SHOULDER

$7.49

$

In Stock, only 3 left!

0

22

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

24

Toro 614677

SCREW-SEMS

$3.99

$

In Stock, Qty 20+

0

25

Toro 94-1610

NUT-CLIP

$0.99

$

In Stock, Qty 20+

0

26

Toro 94-6302

DECAL- 550 CS

$

$

Not available

27

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 20+

0

28

Toro 92-4856

BOLT-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

29

Toro 684159

WHEEL AND TIRE ASM

$68.99

$

In Stock, only 2 left!

0

30

Toro 603567

BOLT

$13.99

$

In Stock, only 3 left!

0

31

Toro 92-1006

FRONT SPRING ARM ASM

$11.99

$

In Stock, Qty 7

0

32

Toro 92-1008

KNOB-LEVER, HEIGHT ADJUSTMENT

$12.99

$

In Stock, only 3 left!

0

33

Toro 610358

NUT-JAM, LOCKING

$2.49

$

In Stock, Qty 12

0

34

Toro 93-7415

GUARD PLATE

$

$

Not available

35

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0
