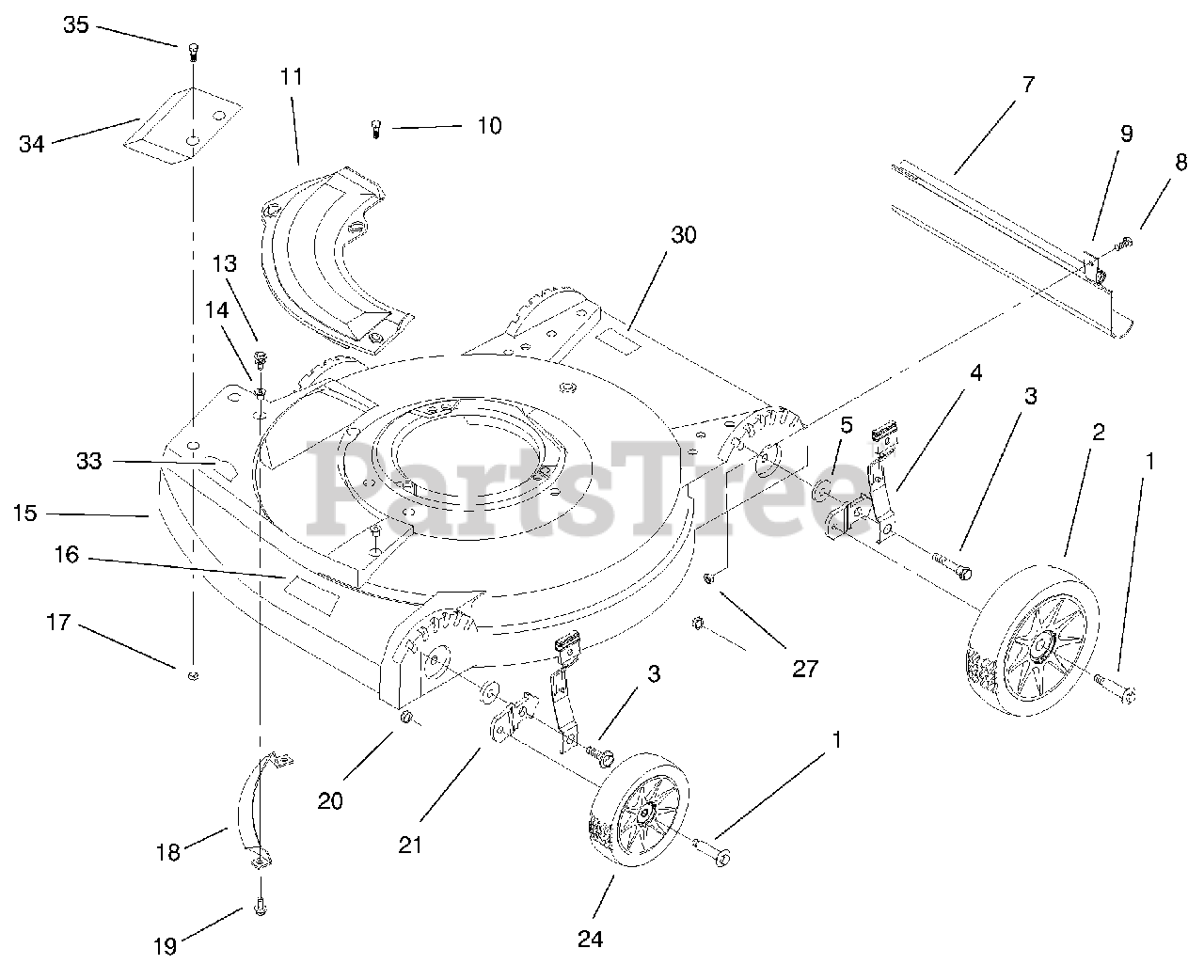

11002 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 009900001 - 009999999) (1999) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 603567

Bolt-Wheel

$13.99

$

In Stock, only 3 left!

0

2

Lawn-Boy 683464

Wheel & Tire ASM

$79.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 610646

Bolt-Ajustment

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 153444

Knob & Spring

$

$

Not available

5

Lawn-Boy 608834

Washer

$15.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 93-7368

Shield-Trailing

$35.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 609891

Screw-HH
(Superseded to 700138)

$

$

Not available

9

Lawn-Boy 93-7693

Clamp-Rod

$15.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 95-7052

Plate-Cover

$30.99

$

In Stock, only 2 left!

0

13

Lawn-Boy 614677

Screw

$3.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 99-5203

Housing

$1106.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 99-1502

Decal-Deck

$

$

Not available

17

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 608175

Toe Bar

$75.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, Qty 7

0

20

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 608833-03

Bracket-Height

$22.99

$

In Stock, only 1 left!

0

24

Lawn-Boy 684159

Wheel & Tire

$68.99

$

In Stock, only 2 left!

0

27

Lawn-Boy 3296-56

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

30

Lawn-Boy 93-6657

Decal-Danger

$25.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 93-7009

Decal-Deflector Danger

$6.49

$

In Stock, Qty 8

0

34

Lawn-Boy 93-7415-03

Guard-Plate

$

$

Not available

35

Lawn-Boy 32105-15

Screw-HH

$2.99

$

In Stock, Qty 15

0
