11003 - Lawn-Boy 53cm Walk-Behind Mower, Canada (SN: 008900001 - 008999999) (1998) HOUSING ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

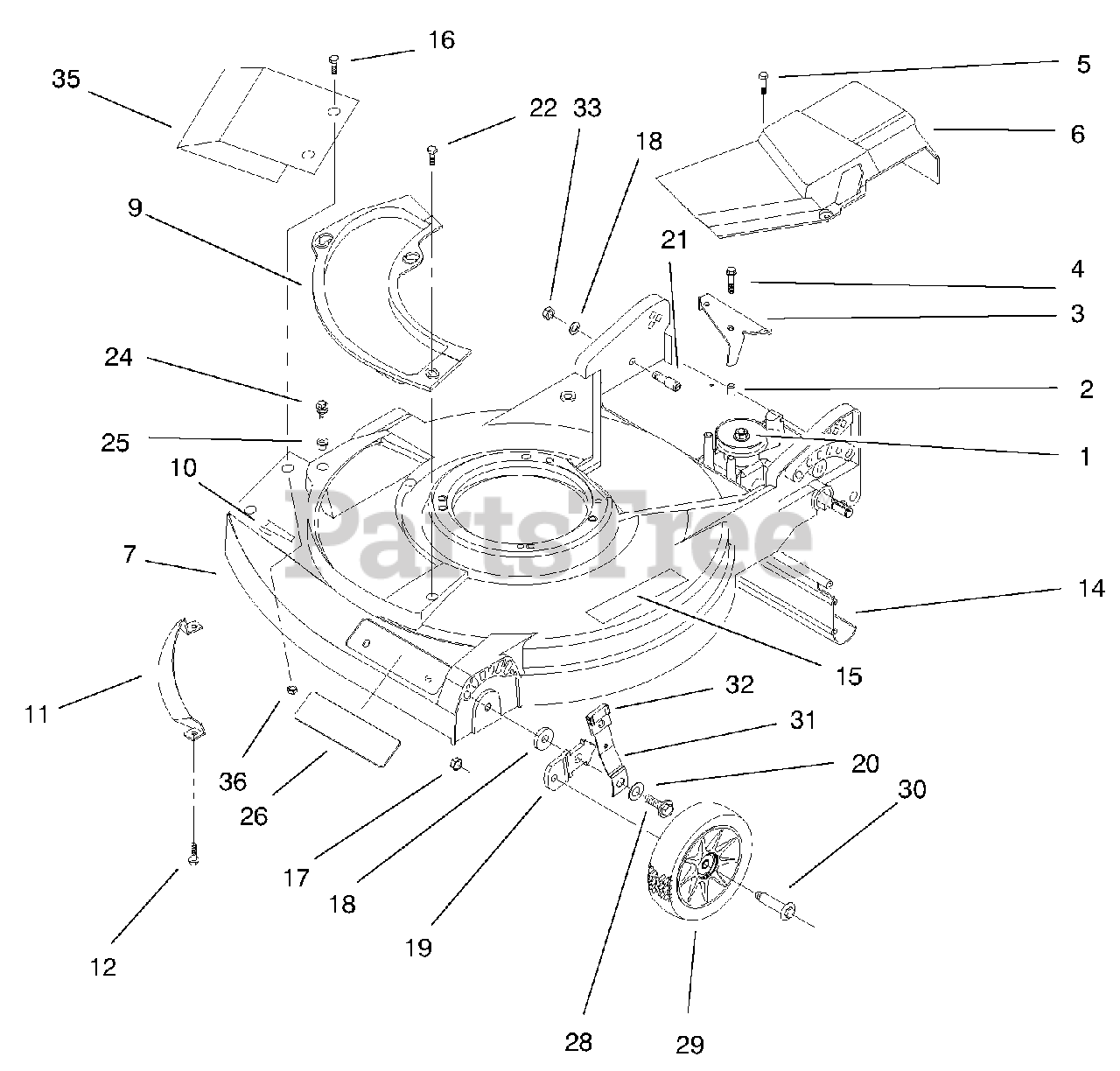

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 92-7869

ASM-Gear Case

$

$

Not available

2

Lawn-Boy 46-5551

Bushing-Spacer

$1.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 92-7699

Bracket-Actuator
(Superseded to 92-7699-03)

$11.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 92-7748

Screw
(Superseded to 36-3860)

$2.49

$

In Stock, Qty 16

0

5

Lawn-Boy 12-5450

Screw-Thread Forming

$8.99

$

In Stock, only 2 left!

0

6

Lawn-Boy 98-4493

Cover-Drive

$40.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 99-5204

Housing-21" Sp

$227.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 95-7052

Plate-Cover

$30.99

$

In Stock, only 2 left!

0

10

Lawn-Boy 93-7009

Decal-Deflector Danger

$6.49

$

In Stock, Qty 8

0

11

Lawn-Boy 608175

Toe Bar 21

$75.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 46-6811

Screw-HWH

$3.49

$

In Stock, Qty 7

0

14

Lawn-Boy 92-7736

Shield-Trailing

$39.99

$

In Stock, Qty 5

0

15

Lawn-Boy 93-4105

Decal-Danger
(Superseded to 112-8759)

$14.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 32105-15

Screw-HH

$2.99

$

In Stock, Qty 15

0

17

Lawn-Boy 3296-39

Nut-Lock

$2.99

$

In Stock, Qty 20+

0

18

Lawn-Boy 608834

Washer

$15.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 614637

Bracket-Wheel Height Adj
(Superseded to 95-7403-03)

$

$

Not available

20

Lawn-Boy 3290-413

Washer-Spring

$4.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 92-9673

Bolt-Shoulder

$7.49

$

In Stock, only 3 left!

0

22

Lawn-Boy 49-2040

Screw-HH

$2.49

$

In Stock, Qty 20+

0

24

Lawn-Boy 614677

Screw-Sems

$3.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 94-1610

Grommet-Plastic

$0.99

$

In Stock, Qty 20+

0

26

Lawn-Boy 99-1503

Decal-Deck 550cs

$

$

Not available

28

Lawn-Boy 92-4856

Bolt-Shoulder

$5.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 684159

Wheel & Tire

$68.99

$

In Stock, only 2 left!

0

30

Lawn-Boy 603567

Bolt-Wheel

$13.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 92-1006

ASM-Spring Arm

$11.99

$

In Stock, Qty 7

0

32

Lawn-Boy 92-1008

Knob-Height Adjust

$12.99

$

In Stock, only 3 left!

0

33

Lawn-Boy 610358

Nut-Lock

$2.49

$

In Stock, Qty 12

0

35

Lawn-Boy 93-7415

Guard-Plate

$

$

Not available

36

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0
