11003 - Toro 53cm Walk-Behind Mower, Canada (SN: 089000001 - 089999999) (1998) REAR AXLE ASSEMBLY Parts Diagram

53cm Walk-Behind Mower, Canada

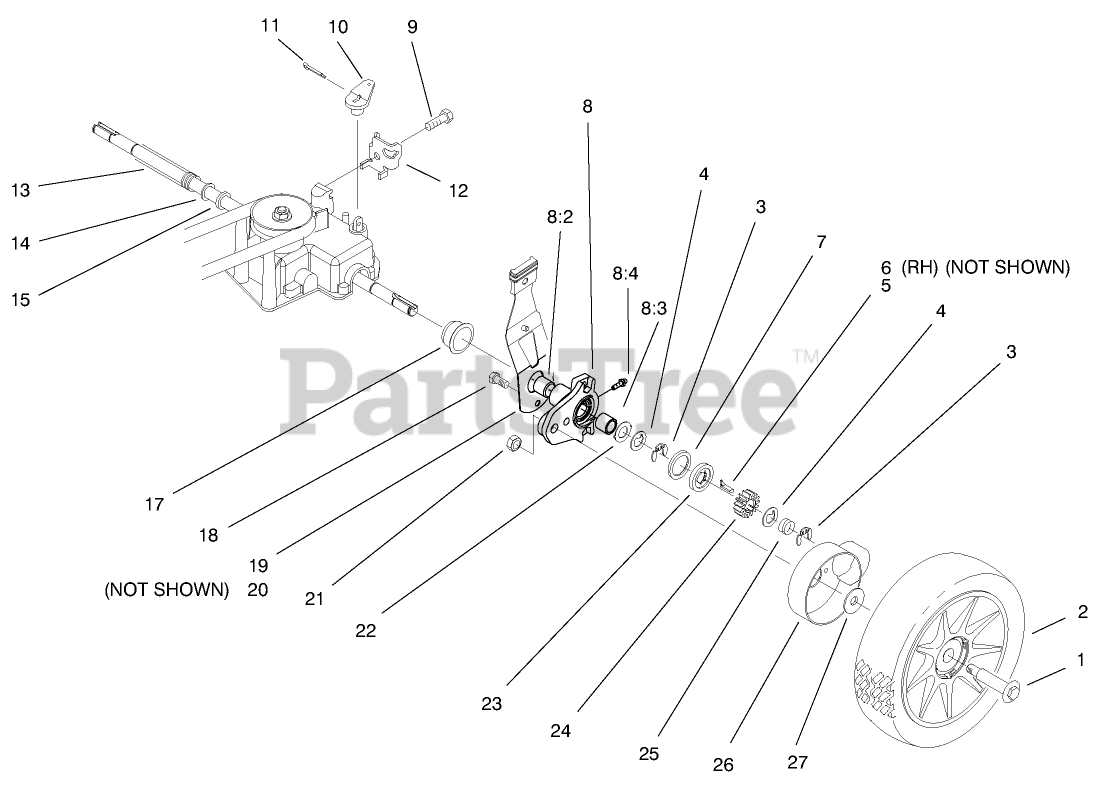

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 95-1714

WHEEL AND GEAR ASM
(Superseded to 115-1454)

$74.99

$

In Stock, only 4 left!

0

3

Toro 65-2720

RING-CLIP, LOCKING

$1.49

$

In Stock, Qty 20+

0

4

Toro 65-4740

WASHER-THRUST, KEYED

$2.49

$

In Stock, Qty 20+

0

5

Toro 66-6050

KEY-ROCKING, LH
(Superseded to 139-6644)

$7.49

$

In Stock, Qty 20+

0

6

Toro 66-6040

KEY-ROCKING, RH
(Superseded to 139-6643)

$7.49

$

In Stock, Qty 20+

0

7

Toro 65-4710

RING-FRICTION

$2.99

$

In Stock, Qty 20+

0

8

Toro 92-7746

REAR HEIGHT ADJUSTMENT ARM ASM

$43.99

$

In Stock, Qty 8

0

8:2

Toro 70-9760

BUSHING

$4.99

$

In Stock, Qty 20+

0

8:3

Toro 47-2900

BUSHING

$6.49

$

In Stock, Qty 20+

0

8:4

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 8

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 60-8821

LEVER-SHIFT

$9.99

$

In Stock, only 1 left!

0

11

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

12

Toro 82-8780

CLAMP-CABLE

$14.99

$

Usually ships in 3-6 days

0

13

Toro 24-7920

COVER-SHAFT, DRIVE

$9.99

$

Usually ships in 3-6 days

0

14

Toro 303259

WASHER

$1.99

$

In Stock, Qty 8

0

15

Toro 605255

WASHER

$1.49

$

In Stock, Qty 20+

0

17

Toro 92-6535

RING-ISOLATOR

$7.49

$

In Stock, Qty 7

0

18

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

19

Toro 92-6540

LH REAR SPRING ARM ASM

$20.99

$

In Stock, only 1 left!

0

20

Toro 92-6539

RH REAR SPRING ARM ASM

$20.99

$

In Stock, only 3 left!

0

21

Toro 610358

NUT-JAM, LOCKING

$2.49

$

In Stock, Qty 12

0

22

Toro 65-4730

WASHER-ARM, PIVOT

$2.49

$

In Stock, Qty 20+

0

23

Toro 65-4760

WASHER-CLUTCH

$1.49

$

In Stock, Qty 20+

0

24

Toro 65-4750

GEAR-PINION

$11.99

$

In Stock, Qty 20+

0

25

Toro 65-4720

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 20+

0

26

Toro 94-1609

COVER-WHEEL

$8.99

$

In Stock, Qty 18

0

27

Toro 614426

WASHER-STEPPED

$3.49

$

In Stock, Qty 20+

0
