110164 - Husqvarna Grass Catcher (2006-02) PRODUCT COMPLETE Parts Diagram

Grass Catcher

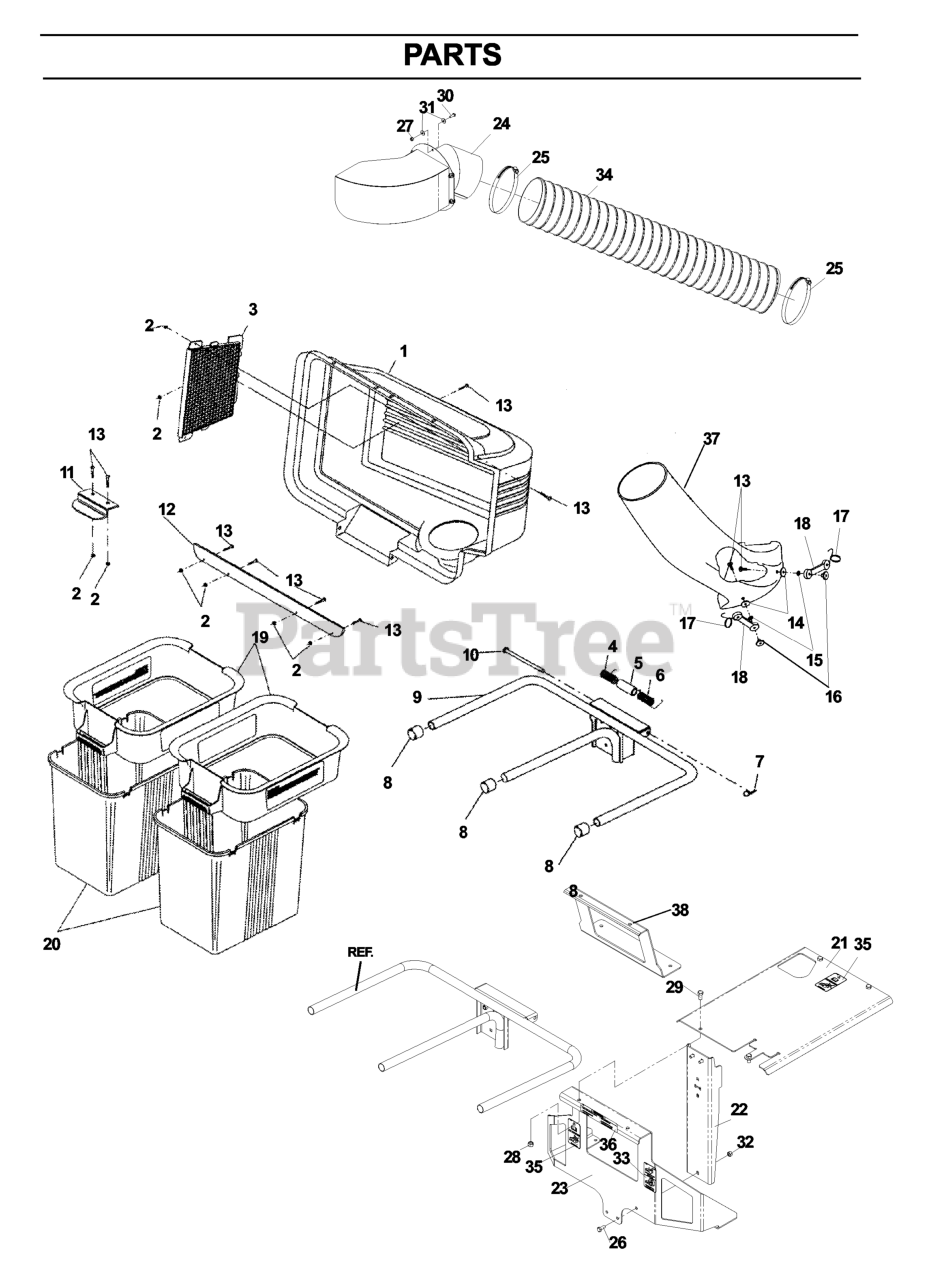

PRODUCT COMPLETE Parts Diagram

  • Title

37

Husqvarna 539111007

LOWER BOOT 42

$157.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 871161010

SCREW
(Superseded to 871081010)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532132983

SPRING COVER RH

$6.49

$

In Stock, only 2 left!

0

20

Husqvarna 532129586

CONTAINER BOTTOM

$80.99

$

In Stock, only 4 left!

0

22

Husqvarna 539110997

HANGER

$31.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128600

HINGE PIN
(Superseded to 532192786)

$12.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532063180

NUT, 3/10-24, CROWNLOCK

$

$

Currently unavailable

11

Husqvarna 532130895

LATCH CER38

$7.49

$

In Stock, only 2 left!

0

14

Husqvarna 819061216

WASHER

$4.99

$

In Stock, Qty 20+

0

7

Husqvarna 532124670

RETAINER-SPRNG RB

$

$

Not available

23

Husqvarna 539109930

REAR BRACKET W/ DECALS

$

$

Not available

17

Husqvarna 532130760

HOOK LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

5

Husqvarna 532133235

SPACER.COVER.BAGGER

$7.49

$

In Stock, only 1 left!

0

30

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

In Stock, only 4 left!

0

12

Husqvarna 532155042

STRIP.REINFORCE.BAGGER.2BIN.BL

$18.99

$

In Stock, only 2 left!

0

21

Husqvarna 539111003

PLATE, W/DECAL

$103.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

1

Husqvarna 539111139

HOOD ASM

$461.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539110992

INLET

$217.99

$

Usually ships in 3-10 days

0

EHP#138971

Husqvarna EHP#138971

HIGH LIFT BLADE

$

$

Currently unavailable

8

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 2 left!

0

539977703

Husqvarna 539977703

CLEVIS PIN 3/8 X 1 1/8

$4.99

$

In Stock, Qty 14

0

26

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539097076

HOSE CLAMP 4-1/8 TO 7"

$8.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539109929

DECAL, PAYLOAD/GASOLINE

$4.99

$

Usually ships in 3-10 days

0

27

Husqvarna 539976978

NUT.1/4-20.HEX.NYLOC.ZD
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 532130759

RUBBER LATCH
(Superseded to 597000601)

$4.99

$

In Stock, Qty 12

0

35

Husqvarna 539109927

DECAL, UTILITY BOX WARNING

$4.99

$

Usually ships in 3-10 days

0

19

Husqvarna 532129585

CONTAINER TOP
(Superseded to 532183286)

$31.99

$

In Stock, only 1 left!

0

36

Husqvarna 539109928

DECAL, UTILITY BOX PAYLOAD

$2.99

$

Usually ships in 3-10 days

0

539976988

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 810071000

LOCKWASHER #10

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 539110052

FRT BRACKET TOOL BOX, PAINTED
(Superseded to 539112139)

$54.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539990134

SCREW 3/8C X 3/4 HEX CAP

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110994

HOSE

$364.99

$

In Stock, only 1 left!

0

3

Husqvarna 532127533

COVER SCREEN

$18.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532132796

SPRING COVER LH

$6.49

$

In Stock, only 2 left!

0

9

Husqvarna 532179746

FRAME.ASM.BAGGER.2BIN.QC42B

$121.99

$

In Stock, only 1 left!

0
