11030 GC (31AH9J75597) - Columbia 30" Snow Thrower (2008) Drive Assembly Parts Diagram

30" Snow Thrower

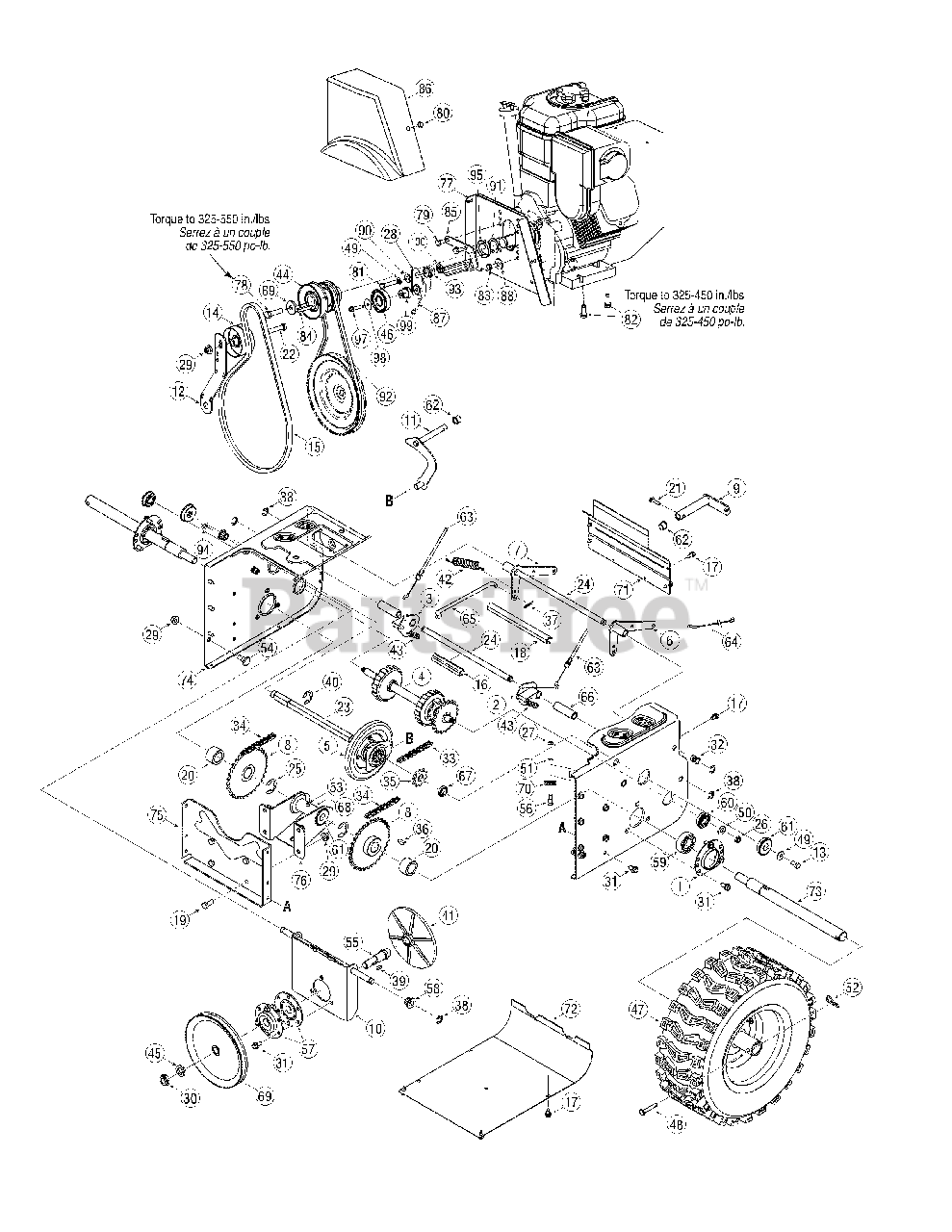

Drive Assembly Parts Diagram

  • Title

1

White Outdoor 05244B

Bearing Housing

$22.99

$

In Stock, only 2 left!

0

2

White Outdoor 618-0279

LH Dog Assembly
(Superseded to 918-0279A)

$42.99

$

Usually ships in 3-6 days

0

3

White Outdoor 618-0280

RH Dog Assembly
(Superseded to 918-0280A)

$42.99

$

Usually ships in 3-6 days

0

4

White Outdoor 618-0282E

Steering Shaft Assembly
(Superseded to 918-0282E)

$520.99

$

Usually ships in 3-6 days

0

5

White Outdoor 618-04178

Wheel Ass’y Bearing 6.0" OD
(Superseded to 918-07239)

$154.99

$

In Stock, only 1 left!

0

5

White Outdoor 718-04034

Friction Wheel Bonded

$

$

Not available

5

White Outdoor 710-0896

Hex Wash. Hd. TT Scr. 1/4-14 x .625

$3.99

$

In Stock, Qty 20+

0

6

White Outdoor 684-0118B

Actuator Auger Bracket Ass’y
(Superseded to 684-0118B-0637)

Variations

White Outdoor 684-0118B-0637

BRACKET-AUGER ACTUR - POWDER BLACK (0637)

$

$

Not available

$

$

7

White Outdoor 684-0119B

Actuator Drive Bracket Ass’y
(Superseded to 684-0119B-0637)

Variations

White Outdoor 684-0119B-0637

BRACKET-AUGER ACTUR - POWDER BLACK (0637)

$

$

Not available

$

$

8

White Outdoor 684-04235

32T Sprocket Ass’y

$115.99

$

Usually ships in 3-6 days

0

9

White Outdoor 684-0161

Shift Arm Ass’y
(Superseded to 684-0161-0637)

Variations

White Outdoor 684-0161-0637

ARM ASSY-SHIFT - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

10

White Outdoor 684-04212

Friction Drive Support
(Superseded to 684-04212-0637)

Variations

White Outdoor 684-04212-0637

BRACKET ASSY-SUPPORT - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

11

White Outdoor 684-04103

Shift Ass’y Rod
(Superseded to 984-04103)

$69.99

$

Usually ships in 3-6 days

0

12

White Outdoor 784-0385B

Auger Idler Bracket
(Superseded to 784-0385D)

$27.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-0538

Hex L-Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 9

0

14

White Outdoor 756-0178

Flat Idler Pulley

$18.99

$

In Stock, only 4 left!

0

15

White Outdoor 754-04131

V-Belt 1/2 x 42" Lg.
(Superseded to 954-04131)

$31.99

$

In Stock, Qty 6

0

16

White Outdoor 750-04718

Spacer .51 ID x 3.66" Lg.

$5.49

$

Usually ships in 3-6 days

0

17

White Outdoor 710-1652

Hex Wash Hd TT Scr. 1/4-20 x .625

$3.99

$

In Stock, Qty 20+

0

18

White Outdoor 750-04717

Spacer .51 ID x 7.895" Lg.

$8.49

$

Usually ships in 3-6 days

0

19

White Outdoor 710-3001

Hex Hd. C-Sunk Scr. 3/8-16 x .880 Gr. 5

$6.99

$

In Stock, Qty 11

0

20

White Outdoor 750-04703

Spacer 1.0 ID x 1.5" Lg.

$11.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0788

Hex Bolt 1/4-20 x 1.00

$6.99

$

In Stock, only 4 left!

0

22

White Outdoor 710-0347

Hex Screw 3/8-16 x 1.75

$4.99

$

In Stock, Qty 20+

0

23

White Outdoor 711-04279

Hex Drive Shaft
(Superseded to 911-04279)

$

$

Not available

24

White Outdoor 711-04605

Ac tu a tor Shaft

$

$

Not available

25

MTD 716-04048

Retaining Ring

$

$

Not available

26

White Outdoor 712-0116

Hex Nut 3/8-24

$4.49

$

In Stock, Qty 7

0

27

White Outdoor 712-0138

Hex Nut 1/4-28

$6.49

$

Usually ships in 3-6 days

0

28

White Outdoor 784-5726

Drive Idler Bracket

$37.99

$

Usually ships in 3-6 days

0

29

White Outdoor 712-04065

Flange L-Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

30

White Outdoor 712-0413

Hex Jam Locknut 5/8-18 Gr. 5 Nylon

$5.99

$

In Stock, only 1 left!

0

31

White Outdoor 710-04484

TT Screw, 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

32

White Outdoor 712-0717

Nut Insert 3/8-16 UNC

$8.99

$

Usually ships in 3-6 days

0

33

White Outdoor 713-0284

#41 Chain 1/2" pitch x 36 links- Endless

$22.99

$

Usually ships in 3-6 days

0

34

White Outdoor 713-0286

#420 Chain 1/2" pitch x 40 links-Endless

$61.99

$

Usually ships in 3-6 days

0

35

White Outdoor 713-04015

10T Sprocket #41 x .500
(Superseded to 913-04015)

$11.99

$

Usually ships in 3-6 days

0

36

White Outdoor 714-0135

Woodruff Key

$4.49

$

In Stock, Qty 9

0

37

White Outdoor 714-0104

Int. Cotter Pin 5/16 DIA

$3.99

$

In Stock, Qty 20+

0

38

White Outdoor 716-0104

E-ring
(Superseded to 916-0104)

$3.99

$

In Stock, Qty 18

0

39

White Outdoor 714-0388

No. 61 Hi-Pro Key 3/16 x 5/8
(Superseded to 914-0388)

$7.49

$

In Stock, Qty 8

0

40

White Outdoor 716-0136

Retaining Ring E-Type .875 dia.

$8.49

$

In Stock, Qty 9

0

41

White Outdoor 717-0302

Alumi num Drive Plate
(Superseded to 917-0302)

$82.99

$

In Stock, only 1 left!

0

42

White Outdoor 732-0121

Idler Extension Spring
(Superseded to 932-0121)

$13.99

$

In Stock, only 1 left!

0

43

White Outdoor 732-0209

Extension Spring .47 OD x 2.03 Lg.
(Superseded to 932-0209)

$7.49

$

In Stock, Qty 12

0

44

White Outdoor 756-0241B

Pulley, Dbl (w/342 cc engine)

$92.99

$

In Stock, only 1 left!

0

44

White Outdoor 756-04351

Pulley, Dbl (w/305 cc engine)

$43.99

$

Usually ships in 3-6 days

0

45

White Outdoor 736-0158

Lockwasher 5/16 ID

$4.49

$

In Stock, only 1 left!

0

46

White Outdoor 756-0240

Flat Idler Pulley 3.0 OD

$

$

Not available

47

White Outdoor 634-0225

Wheel Assembly 16 x 6.5 x 8 LH X-Trac
(Superseded to 634-0225A)

$236.99

$

Usually ships in 3-6 days

0

47

White Outdoor 634-0226

Wheel Assembly 16 x 6.5 x 8 RH X-Trac
(Superseded to 634-0226A)

Variations

White Outdoor 634-0226-0911

WHEEL COMP-16 X 6. - Carlisle Gray (0911)

$286.99

$

Usually ships in 3-6 days

0

White Outdoor 634-0226-0931

WHEEL COMP-16 X 6. - Carlisle Beige (0931)

$233.99

$

Usually ships in 3-6 days

0

$233.99

$

Usually ships in 3-6 days

0

47

White Outdoor 734-2031

Tire 16 x 6.5 x 8

Note: Not shown

$154.99

$

Usually ships in 3-6 days

0

47

White Outdoor 734-1124

Rim 16 x 6.5
(Superseded to 734-1124A)

Note: Not shown

Variations

White Outdoor 734-1124-0499

RIM-WHEEL 8" - CUB BEIGE (0499)

$132.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1124-0662

RIM-WHEEL 8" - OYSTER GRAY (0662)

$132.99

$

Usually ships in 3-6 days

0

White Outdoor 734-1124-0674

RIM-WHEEL 8" - YARDMAN YELLOW (0674)

$115.99

$

Usually ships in 3-6 days

0

$115.99

$

Usually ships in 3-6 days

0

47

White Outdoor 741-0246A

Bearing

Note: Not shown

$13.99

$

In Stock, only 4 left!

0

47

White Outdoor 734-0255

Air Valve
(Superseded to 934-0255)

Note: Not shown

$3.99

$

In Stock, Qty 20+

0

48

White Outdoor 711-04615

Clevis Pin

$5.49

$

Usually ships in 3-6 days

0

49

White Outdoor 736-0242

Cupped Washer .345 ID x .88 OD x .06

$3.99

$

In Stock, Qty 20+

0

50

White Outdoor 736-0300

Flat Washer .385 ID x .87 OD x .06

$3.99

$

In Stock, Qty 20+

0

51

White Outdoor 736-0329

L-Wash 1/4 ID
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

52

White Outdoor 714-0149B

Int. Cotter Pin

$3.99

$

In Stock, Qty 20+

0

53

White Outdoor 737-3000

Grease
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

54

White Outdoor 738-0143

Shld. Scr. .500 Dia. x .335" Lg.

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 738-0279

Drive Plate Spindle

$57.99

$

Usually ships in 3-6 days

0

56

White Outdoor 738-0924A

Hex Shld.Scr.1/4-28 x .375

$6.49

$

In Stock, Qty 6

0

57

White Outdoor 741-0163A

Bearing Hsg. Ass’y.

$45.99

$

Usually ships in 3-6 days

0

58

White Outdoor 741-04108

Hex Flange Bearing

$5.99

$

In Stock, only 2 left!

0

59

White Outdoor 741-04025

Self aligning brg. 1.0 ID
(Superseded to 941-04025)

$33.99

$

Usually ships in 3-6 days

0

60

White Outdoor 741-04076

Ball Bearing .5625 ID x 1.3750 x .437

$13.99

$

In Stock, Qty 16

0

61

White Outdoor 741-0563

Ball Bearing w/snap ring
(Superseded to 941-0563)

$33.99

$

In Stock, Qty 20+

0

62

White Outdoor 741-0748

Flange Bushing .500 ID x .627 OD

$11.99

$

Usually ships in 3-6 days

0

63

White Outdoor 746-0949A

Steering Cable

$48.99

$

In Stock, only 1 left!

0

64

White Outdoor 746-0951

Auger Idler Cable
(Superseded to 946-0951A)

$41.99

$

In Stock, only 4 left!

0

65

White Outdoor 747-0973

Drive Clutch Rod

$45.99

$

Usually ships in 3-6 days

0

66

White Outdoor 750-0903B

Split Spacer 1/2 x 5/8 x 2.69

$9.99

$

Usually ships in 3-6 days

0

67

White Outdoor 750-0997

Spacer .625 ID x 1.0 OD x .23
(Superseded to 950-0997)

$6.49

$

In Stock, only 4 left!

0

68

White Outdoor 750-1302B

Spacer .6725ID x 1.125 OD x 2.485

$44.99

$

In Stock, only 1 left!

0

69

White Outdoor 756-0344

1/2" "V" Pulley .625 ID x 7.50 OD

$75.99

$

Usually ships in 3-6 days

0

70

White Outdoor 756-0625

Cable Guide Roller

$8.99

$

In Stock, Qty 20+

0

71

White Outdoor 790-00257

Upper Frame Cover

Variations

White Outdoor 790-00257-0691

Frame Cover, Upper Black - BLACK JACK (0691)

$14.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-0606

COVER:UPPER FRAME: - MAJESTIC ORANGE (0606)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-0638

COVER:UPPER FRAME: - MTD/TROY-BILT RED (0638)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-0716

COVER:UPPER FRAME: - CUB YELLOW-99 (0716)

$14.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-0721

COVER:UPPER FRAME: - SEARS RED (0721)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-4021

COVER:UPPER FRAME: - CUB YELLOW 2 (4021)

$14.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-4033

COVER:UPPER FRAME: - FLINT MICA (4033)

$14.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-4044

COVER:UPPER FRAME: - CRAFTSMAN RED (4044)

$12.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00257-0650

COVER:UPPER FRAME: - RED METALLIC (0650)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

72

White Outdoor 790-00259

Lower Frame Cover

Variations

White Outdoor 790-00259-0606

Frame Cover, Lower Orange - MAJESTIC ORANGE (0606)

$33.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-0638

COVER:FRAME:LOWER - MTD/TROY-BILT RED (0638)

$31.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-0650

COVER:FRAME:LOWER - RED METALLIC (0650)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-0691

COVER:FRAME:LOWER - BLACK JACK (0691)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-0716

COVER:FRAME:LOWER - CUB YELLOW-99 (0716)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-0721

COVER:FRAME:LOWER - SEARS RED (0721)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-4021

COVER:FRAME:LOWER - CUB YELLOW 2 (4021)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-4033

COVER:FRAME:LOWER - FLINT MICA (4033)

$27.99

$

Usually ships in 3-6 days

0

White Outdoor 790-00259-4044

COVER:FRAME:LOWER - CRAFTSMAN RED (4044)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

73

White Outdoor 711-04608

Axle .995 x 12.6" Lg. (28")
(Superseded to 711-04608A)

$110.99

$

In Stock, only 1 left!

0

73

White Outdoor 711-04607

Axle.995 x 14.10" Lg (30" & 33")
(Superseded to 711-04607A)

$106.99

$

In Stock, only 1 left!

0

73

White Outdoor 711-04606

Axle .995 x 20.4" Lg. (45")
(Superseded to 711-04606A)

$139.99

$

Usually ships in 3-6 days

0

74

White Outdoor 790-00255A

Transmission Frame Ass’y (900)

Variations

White Outdoor 790-00255A-0606

FRAME ASSY-TRANS 90 - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 790-00255A-0638

FRAME ASSY-TRANS 90 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 790-00255A-0662

FRAME ASSY-TRANS 90 - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 790-00255A-0665

FRAME ASSY-TRANS 90 - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 790-00255A-0691

FRAME ASSY-TRANS 90 - BLACK JACK (0691)

$

$

Not available

White Outdoor 790-00255A-0721

FRAME ASSY-TRANS 90 - SEARS RED (0721)

$

$

Not available

White Outdoor 790-00255A-4021

FRAME ASSY-TRANS 90 - CUB YELLOW 2 (4021)

$

$

Not available

White Outdoor 790-00255A-4044

FRAME ASSY-TRANS 90 - CRAFTSMAN RED (4044)

$

$

Not available

$

$

75

White Outdoor 784-0406A

Frame Support Bracket
(Superseded to 784-0406A-0637)

Variations

White Outdoor 784-0406A-0637

BRACKET-SUPPORT FRAME - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

76

White Outdoor 784-0407

Axle Brg. Support Bracket
(Superseded to 784-0407-0637)

Variations

White Outdoor 784-0407-0637

BRACKET-SUPPORT AXLE - POWDER BLACK (0637)

$37.99

$

Usually ships in 3-6 days

0

$37.99

$

Usually ships in 3-6 days

0

77

White Outdoor 790-00254A

Belt Cover Bracket
(Superseded to 790-00254A-0637)

Variations

White Outdoor 790-00254A-0637

BRACKET-COVER BELT - POWDER BLACK (0637)

$27.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

78

White Outdoor 710-1044

Hex Screw 3/8-24 x 1.5 Gr. 5

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 710-0237

Hex Screw 5/16-24 x .625 Gr. 5

$4.49

$

Usually ships in 3-6 days

0

80

White Outdoor 710-0607

Hex Wash HD S-Tapp Scr 5/16-18 x .50

$6.49

$

In Stock, Qty 20+

0

81

White Outdoor 710-0624

Hex HD. Cap Scr. 5/16-24 x 1.5 Lg. Gr. 5

$5.49

$

Usually ships in 3-6 days

0

82

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x 1.00

$3.99

$

In Stock, only 4 left!

0

83

White Outdoor 710-0627

Hex Hd.Cap Scr. 5/16-24 x 0.75 Gr. 5

$3.99

$

In Stock, Qty 20+

0

84

White Outdoor 714-0118

Square Key 1/4 x 1/4 x 1.50" Lg.

$6.49

$

Usually ships in 3-6 days

0

85

White Outdoor 790-00167A

Belt Keeper Bracket
(Superseded to 790-00167A-0637)

Variations

White Outdoor 790-00167A-0637

Belt Keeper Bracket - POWDER BLACK

$36.99

$

Usually ships in 3-6 days

0

$36.99

$

Usually ships in 3-6 days

0

86

White Outdoor 731-2531

Belt Cover
(Superseded to 931-2531)

$47.99

$

Usually ships in 3-6 days

0

87

White Outdoor 732-04308A

Torsion Spring .850 x 3.33" Lg.
(Superseded to 732-04308C)

$4.99

$

In Stock, Qty 12

0

88

White Outdoor 748-0234

Shoulder Spacer .25 THK

$4.49

$

In Stock, Qty 10

0

89

White Outdoor 736-0247

Flat Washer .406 ID x 1.25 OD x .160

$8.99

$

In Stock, Qty 20+

0

90

White Outdoor 748-04112B

Shoulder Spacer .3175 x .5 x .094

$3.99

$

In Stock, only 1 left!

0

91

White Outdoor GW-1166-1

Flat Washer 1.015 x 1.375 x .062
(Superseded to 736-04309)

$3.99

$

In Stock, Qty 18

0

92

White Outdoor 754-0367

V-Belt 3/8 x 34.4" Lg.
(Superseded to 954-0367)

$29.99

$

In Stock, Qty 20+

0

93

White Outdoor 750-04821

Shoulder Spacer .340 x 1.0

$5.99

$

Usually ships in 3-6 days

0

94

White Outdoor 726-0221

Speed Nut .50

$5.99

$

In Stock, only 2 left!

0

95

MTD 750-04020

Spacer 1.004 x 1.375 x .25
(Superseded to 950-04020)

$11.99

$

In Stock, only 1 left!

0

97

White Outdoor 710-0809

Hex Bolt 1/4-20 x 1.25

$6.49

$

In Stock, Qty 20+

0

98

White Outdoor 736-3092

Flat Washer .265 ID x 1.0 OD x 0.030 HT

$3.99

$

In Stock, Qty 13

0

99

White Outdoor 750-04571

Shoulder Spacer

$6.49

$

In Stock, Qty 7

0

100

White Outdoor 726-04012

Push on Nut

$6.99

$

In Stock, Qty 12

0
