11050C - MTD Walk-Behind Mower (1986) Rotary Parts Diagram

Walk-Behind Mower

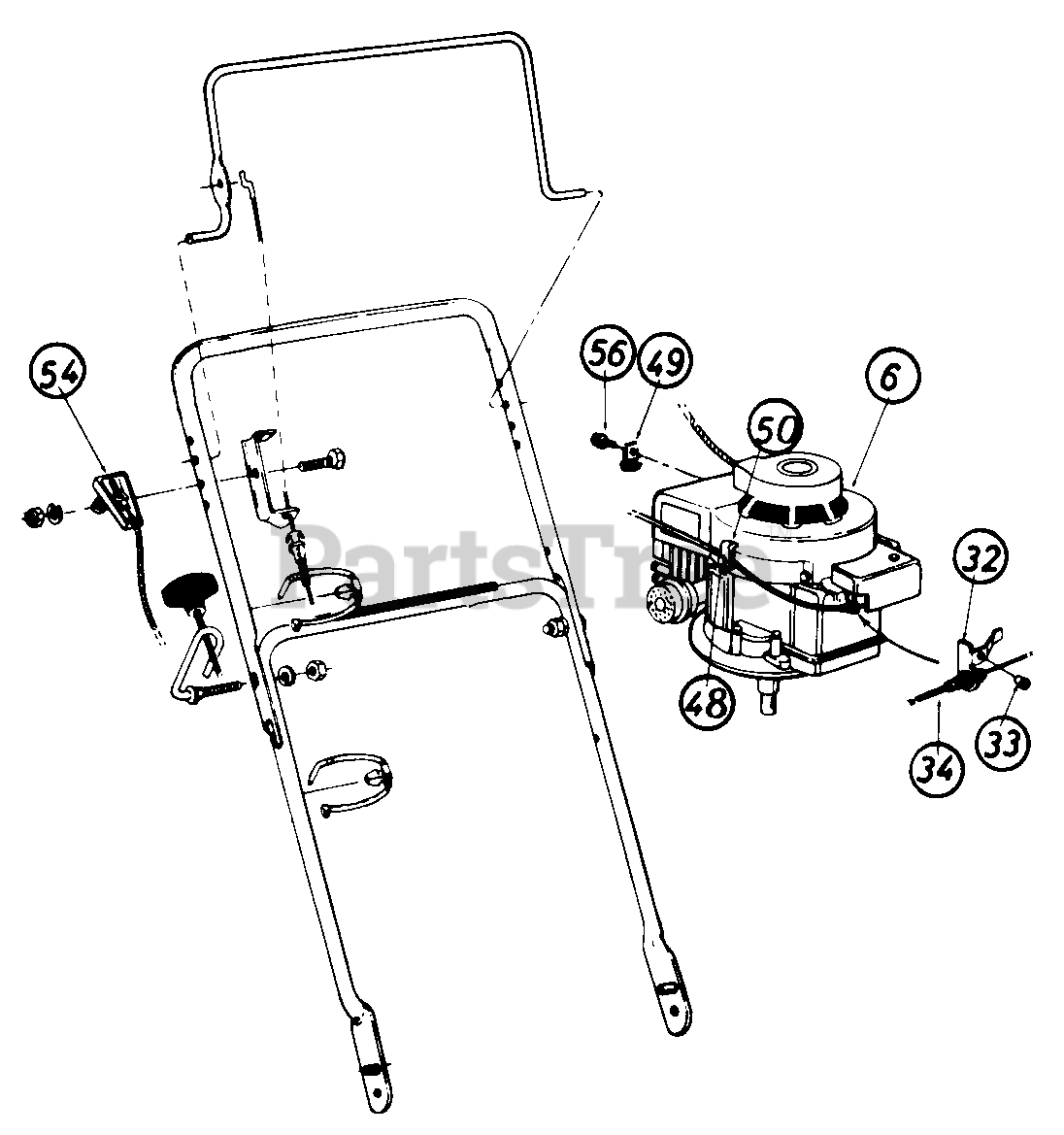

Rotary Parts Diagram

  • Title

6

Engine

$

$

Not available

32

MTD 14924

Cable Bracket

$

$

Not available

33

MTD 728-0171

Pop Rivet .156" Dia. x .379

$

$

Not available

34

MTD 746-0551

Control Cable 43.0" Lg.
(Superseded to 946-0551)

$22.99

$

In Stock, only 1 left!

0

48

MTD 710-0429

Hex B-Tap Scr. #1O X .38"
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

49

MTD 751-0369

Casing Clamp

$

$

Not available

50

MTD 12894

Casing Clamp

$

$

Not available

54

MTD 746-0644

Throttle Control Ass'y. Comp.
(Superseded to 946-0645A)

$43.99

$

Usually ships in 3-6 days

0

56

MTD 710-0227

Hex AB-Tap Scr. #8 x .38"

$3.99

$

In Stock, Qty 20+

0
