1106 (139-519-100) - Cub Cadet Rear-Engine Riding Mower (1989) 38" Deck Parts Diagram

Rear-Engine Riding Mower

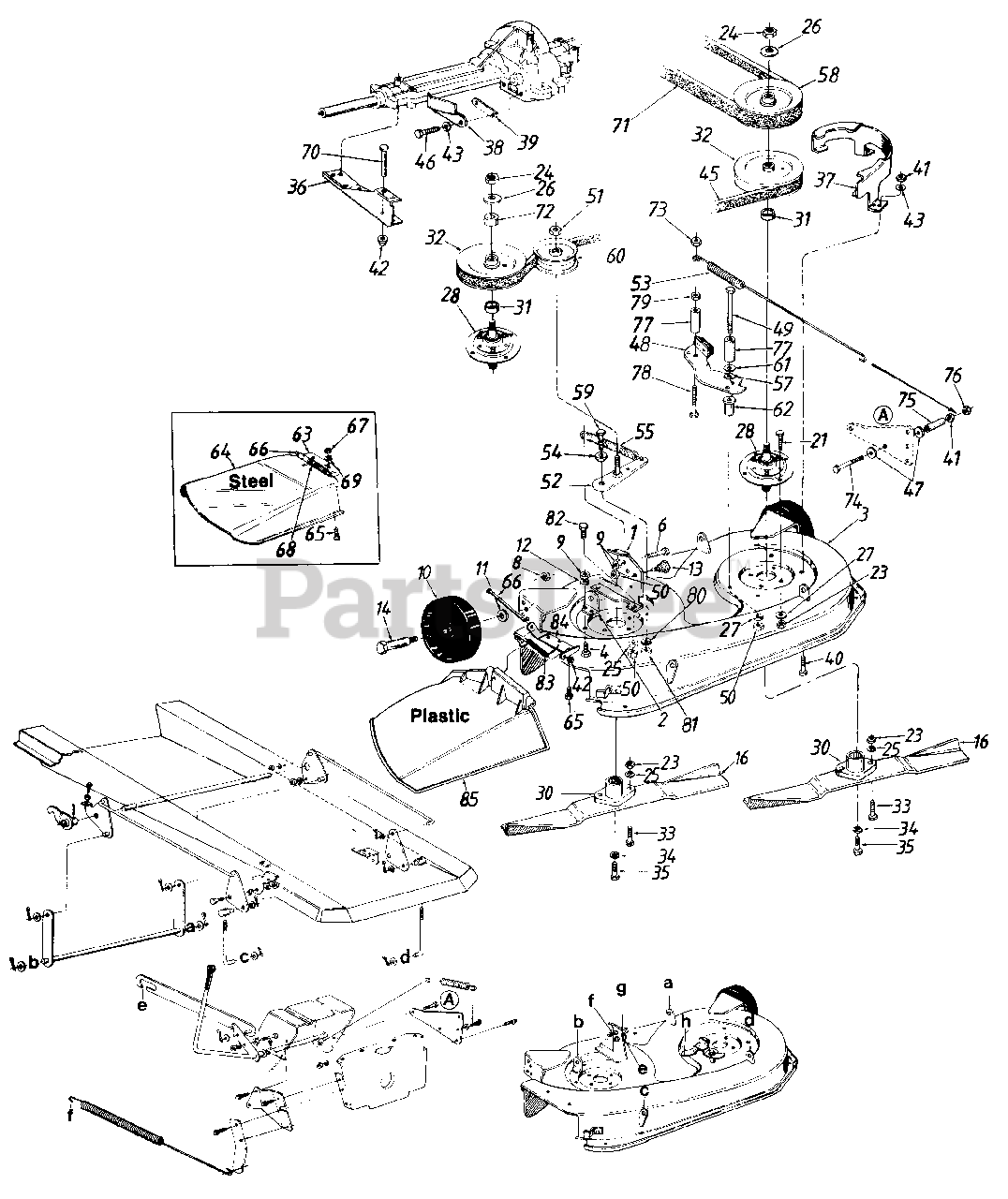

38" Deck Parts Diagram

  • Title

1

Cub Cadet 17094B

Deck Disengagement Brkt.

$

$

Not available

2

Cub Cadet 17096

Rear Deck Brkt.-R.H.

$

$

Currently unavailable

3

Cub Cadet 17122

38" Deck Ass'y.

$

$

Currently unavailable

Cub Cadet 17158

38" Deck Ass'y. Comp.

$

$

Currently unavailable

4

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0778

Hex Wash. Hd. Scr. 1/4-20 x 1.5" Lg.

$4.49

$

In Stock, Qty 9

0

Cub Cadet 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0181

Hex L-Nut 3/8-16 Thd.

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 734-0973

Deck Wheel
(Superseded to 734-06265)

$13.99

$

In Stock, Qty 5

0

11

Cub Cadet 736-0105

Bell-Wash. .380 I.D. x .88

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 736-0329

L-Wash. 1/4 I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

13

Cub Cadet 738-0183

Shld. Bolt .500 Dia. x .215" Lg.
(Superseded to 938-0183)

$

$

Not available

14

Cub Cadet 738-0373

Shld Bolt .498 Dia. x 1.53" Lg.
(Superseded to 938-0373)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 742-0473A

High Lift Blade
(Superseded to 942-0473A)

$

$

Not available

21

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, only 3 left!

0

23

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$7.49

$

In Stock, Qty 8

0

24

Cub Cadet 712-0318

Hex Jam Nut 5/8-18 Thd.

$3.49

$

In Stock, Qty 9

0

25

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

26

Cub Cadet 736-0158

L-Wash. 5/8" I.D.*

$4.99

$

In Stock, only 3 left!

0

27

Cub Cadet 736-0242

Bell-Wash. .345 I.D. x .88

$4.99

$

In Stock, Qty 20+

0

28

Cub Cadet 717-0906

Blade Spindle Ass'y. Comp.
(Superseded to 753-05319)

$135.99

$

In Stock, only 1 left!

0

30

Cub Cadet 748-0300

Blade Adapter

$14.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-0456

Spacer

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 756-0516

5" Dia. Pulley (1" Hub)

$

$

Not available

33

Cub Cadet 710-0888

Hex Bolt 5/16-24 x 1.0" Lg. (Special)

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 736-0217

L-Wash. 3/8" I.D. H.D.

$4.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.0" Lg.
(Superseded to 710-1039)

$4.99

$

In Stock, Qty 14

0

36

Cub Cadet 15625B

Lower Outside Belt Guard

Variations

15625B-0637

Cub Cadet 15625B-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 16608A

Belt Guard Deck-R.H.

Variations

16608A-0637

Cub Cadet 16608A-0637

BELT GUARD - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 17117

Lower Inside Belt Guard

$

$

Currently unavailable

39

Cub Cadet 17118

Belt Guard Spacer

$

$

Currently unavailable

40

Cub Cadet 710-0258

Hex Bolt 1/4-20 x .62" Lg.
(Superseded to 710-0751)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 726-0106

Speed Nut 1/4" Rod

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.99

$

In Stock, Qty 12

0

45

Cub Cadet 754-0348

V-Belt
(Superseded to 954-0348)

$

$

Not available

46

Cub Cadet 710-0252

Hex Bolt 1/4-20 x .85" Lg.
(Superseded to 710-3015)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 736-0176

Fl-Wash. 1/4" I.D.

$4.99

$

In Stock, Qty 20+

0

48

Cub Cadet 17116

Deck Brake Brkt. Ass'y.
(Superseded to 97116)

$55.99

$

In Stock, only 2 left!

0

49

Cub Cadet 710-3056

Hex Bolt 5/16-18 x 3.25" Lg.*

$10.99

$

In Stock, only 1 left!

0

50

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.99

$

In Stock, Qty 20+

0

51

Cub Cadet 712-0241

Hex L-Nut 3/8-24 Thd.

$4.99

$

In Stock, only 2 left!

0

52

Cub Cadet 17241

Idler Brkt. Ass'y.

$

$

Not available

53

Cub Cadet 732-0587

Extension Spring 17.75" Lg.

$

$

Not available

54

Cub Cadet 738-0347

Shoulder Spacer
(Superseded to 938-0347)

$10.99

$

In Stock, only 2 left!

0

55

Cub Cadet 732-0185A

Extension Spring 73/4" Lg.

$

$

Not available

57

Cub Cadet 736-0232

Wave Washer

$4.99

$

In Stock, only 2 left!

0

58

Cub Cadet 756-0517

5" Dia. Pulley (3/4" Hub)

$

$

Not available

59

Cub Cadet 710-0253

Hex Bolt 3/8-16 x 1" Lg.*
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 16

0

60

Cub Cadet 756-0515

Flat Idler Pulley

$

$

Not available

61

Cub Cadet 748-0234

Shld. Spacer .27" Lg.

$4.99

$

In Stock, only 3 left!

0

62

Cub Cadet 750-0702

Spacer 1.46" Lg.

$

$

Not available

63

Cub Cadet 16521

Chute Brkt. (Steel)

$

$

Not available

64

Cub Cadet 16566

Chute Deflector (Steel)
(Superseded to 753-0567)

$

$

Not available

65

Cub Cadet 710-0255

Truss-Mach. Scr. 1/4-20 x .75" Lg.
(Superseded to 710-0924)

$4.99

$

In Stock, Qty 20+

0

66

Cub Cadet 711-0792

Hinge Pin
(Superseded to 911-0792)

$4.99

$

In Stock, Qty 11

0

67

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 732-0542

Torsion Spring 1.14" Lg.
(Superseded to 932-0542)

$

$

Not available

69

Cub Cadet 736-0270

Bell-Wash. 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-0586

Pin

$

$

Not available

71

Cub Cadet 754-0351

V-Belt
(Superseded to 954-0351)

$23.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 750-0732

Spacer

$

$

Not available

73

Cub Cadet 712-0117

Hex L-Nut 1/4-28 Thd.
(Superseded to 912-0117)

$2.49

$

In Stock, only 2 left!

0

74

Cub Cadet 710-0102

Hex Bolt 1/4-20 x 2.5" Lg.*
(Superseded to 710-1122)

$7.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 750-0583

Spacer 1/4" I.D. x 318" O.D.

$

$

Not available

76

Cub Cadet 712-0291

Hex L-Nut 1/4-20 Thd.

$4.99

$

In Stock, only 3 left!

0

77

Cub Cadet 750-0470

Spacer 5/16" I.D. x 1/2" O.D.

$7.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-0559

Hex Bolt 1/4-28 x 1.75" Lg.*

$

$

Not available

79

Cub Cadet 712-0138

Hex Nut 1/4-28 Thd.*

$7.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 11

0

81

Cub Cadet 712-3017

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

82

Cub Cadet 710-0118

Hex Bolt 5/16-18 x .75" Lg.*
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

83

Cub Cadet 732-0602

Torsion Spring
(Superseded to 732-0602A)

$12.99

$

In Stock, only 4 left!

0

84

Cub Cadet 703-1693

Hinge Mtg. Brkt.
(Superseded to 703-1693A)

$24.99

$

In Stock, only 3 left!

0

85

Cub Cadet 731-1032

Chute Ass'y. Comp. (Plastic)
(Superseded to 631-05229)

$86.99

$

In Stock, Qty 14

0
