1106 (139-519-100) - Cub Cadet Rear-Engine Riding Mower Engine (1989) B&S 11 HP 253707-0419-01 Part 1 Parts Diagram

Rear-Engine Riding Mower Engine

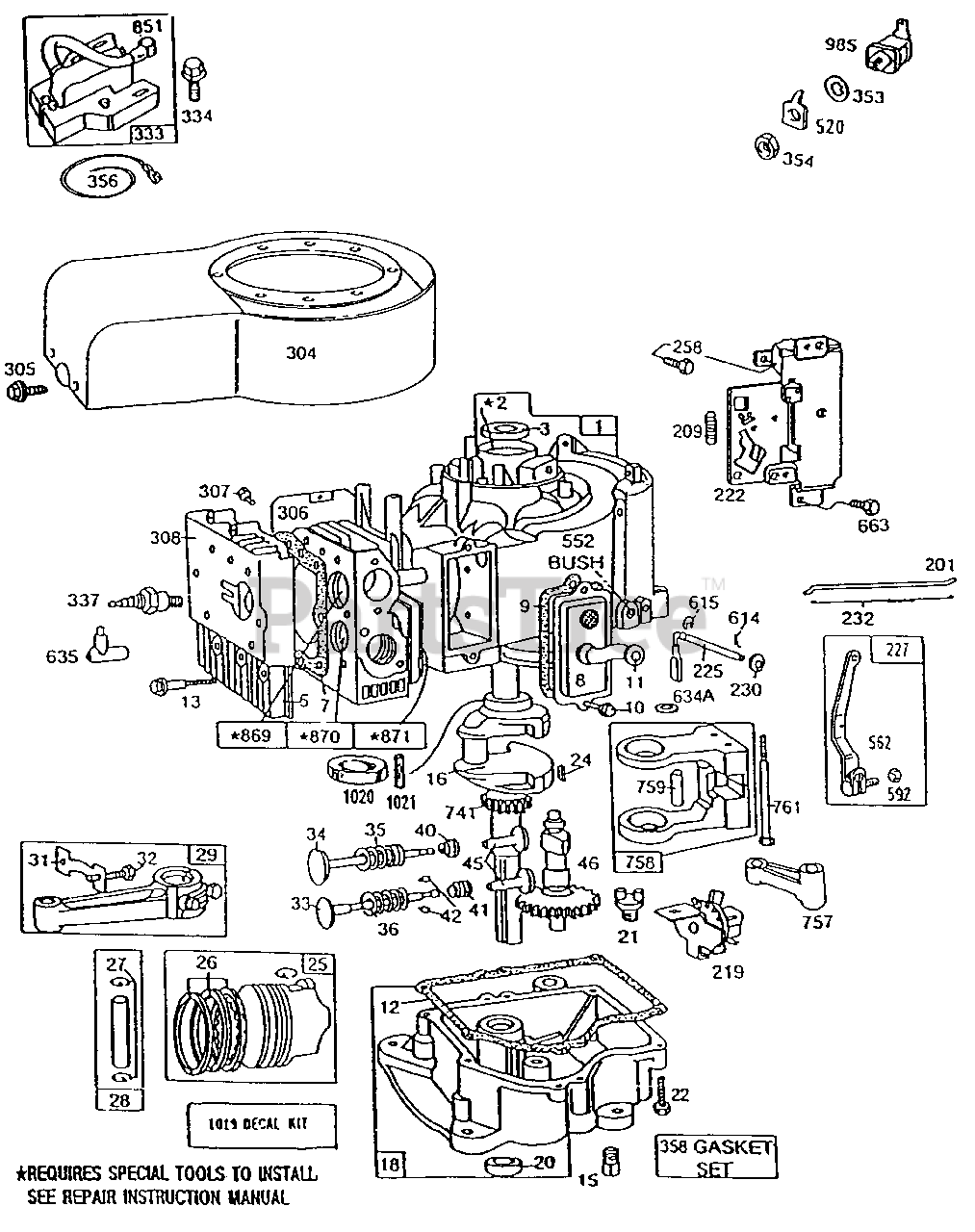

B&S 11 HP 253707-0419-01 Part 1 Parts Diagram

  • Title

1

Cub Cadet BS-395705

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-399265

Bearing Cylinder
(Superseded to BS-797673)

$18.99

$

In Stock, only 3 left!

0

3

Cub Cadet BS-391086

Seal Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-212300

Head Cylinder

$

$

Not available

7

Cub Cadet BS-271866

Gasket Cylinder Head
(Superseded to BS-271866S)

Note: (Included in Gasket Set-Part No.393411)

$9.49

$

In Stock, Qty 20+

0

8

Cub Cadet BS-391406

Breather Assembly
(Superseded to BS-495735)

$63.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-27803

Gasket Valve Cover
(Superseded to BS-27803S)

Note: (Included in Gasket Set-Part No.393411)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280100

Tube Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 10

0

12

Cub Cadet BS-271702

Gasket Crankcase Cover 1/64" Thick
(Superseded to BS-271702S)

Note: (Included in Gasket Set-Part No.393411)

$10.99

$

In Stock, Qty 5

0

Cub Cadet BS-270915

Gasket Crankcase Cover .005" Thick

Note: (Included in Gasket Set-Part No.393411)

$9.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-270916

Gasket Crankcase Cover .009" Thick

Note: (Included in Gasket Set-Part No.393411)

$9.49

$

In Stock, only 1 left!

0

13

Cub Cadet BS-93723

Screw Cylinder Head (3" Long)

$

$

Not available

15

Cub Cadet BS-91084

Plug Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

16

Cub Cadet BS-491647

Crankshaft

Note: (Order BS-94196 Key for Timing Gear Retaining Device)

$

$

Not available

18

Cub Cadet BS-391784

Sump Engine

$288.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-291675

Seal Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

21

Cub Cadet BS-66768

Plug Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

22

Cub Cadet BS-93585

Screw Sump Mounting Sem

$

$

Not available

24

Cub Cadet BS-222698

Key Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-394661

Piston Ass'y. Standard
(Superseded to BS-499284)

$84.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394662

Piston Assembly .010" O.S.
(Superseded to BS-499288)

$73.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-394663

Piston Assembly .020" O.S.

$

$

Not available

Cub Cadet BS-394664

Piston Assembly .030" O.S.

$

$

Not available

26

Cub Cadet BS-394665

Ring Set Piston Std.
(Superseded to BS-499996)

$53.99

$

In Stock, only 4 left!

0

Cub Cadet BS-391781

Ring Set Piston .010" O.S.

$

$

Not available

Cub Cadet BS-391782

Ring Set Piston .020" O.S.

$

$

Not available

Cub Cadet BS-391783

Ring Set Piston .030" O.S.

$

$

Not available

27

Cub Cadet BS-260924

Lock Piston Pin

$

$

Not available

28

Cub Cadet BS-299691

Pin Assembly Piston Standard

$17.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391286

Pin Assembly Piston .005" O.S

$

$

Currently unavailable

29

Cub Cadet BS-490348

Rod Assembly Connecting

$50.99

$

In Stock, only 2 left!

0

31

Cub Cadet BS-222299

Lock Connecting Rod Screw

$

$

Not available

32

Cub Cadet BS-92909

Screw Connecting Rod

$

$

Not available

33

Cub Cadet BS-261185

Valve Exhaust

$

$

Not available

34

Cub Cadet BS-261462

Valve Intake

$

$

Not available

35

Cub Cadet BS-65906

Spring Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-93630

Retainer Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-261183

Tappet Valve

$

$

Not available

46

Cub Cadet BS-212897

Gear Cam

$

$

Not available

201

Cub Cadet BS-262348

Link Governor

$9.49

$

In Stock, only 1 left!

0

209

Cub Cadet BS-260695

Spring Governor
(Superseded to BS-796260)

$4.99

$

In Stock, Qty 11

0

219

Cub Cadet BS-490815

Oil Slinger, Governor Gear and Bracket Assembly
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 12

0

222

Cub Cadet BS-491593

Plate Governor Control

$

$

Not available

225

Cub Cadet BS-231058

Crank Governor (1/4" Dia.)
(Superseded to BS-692012)

$13.99

$

In Stock, only 4 left!

0

227

Cub Cadet BS-490927

Lever Ass'y. Governor (For 1/4" Dia. Crank)

$16.99

$

Usually ships in 2-12 days

0

230

Cub Cadet BS-222450

Washer Governor Crank (1/4" I.D.)
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

232

Cub Cadet BS-260584

Spring Governor Link
(Superseded to BS-692207)

$6.99

$

In Stock, Qty 16

0

258

Cub Cadet BS-93572

Screw Control Bracket Mounting (3/8" Long)
(Superseded to 710-0432)

$

$

Not available

304

Cub Cadet BS-398333

Housing Blower

$

$

Currently unavailable

305

Cub Cadet BS-93158

Screw Blower Housing Mtg. Sem

$

$

Not available

306

Cub Cadet BS-222744

Shield Cylinder

$

$

Not available

307

Cub Cadet BS-93163

Screw Cylinder Shield Mtg. Sem

$

$

Currently unavailable

308

Cub Cadet BS-222725

Cover Cylinder Head

$

$

Not available

333

Cub Cadet BS-398811

Armature Magneto

$63.99

$

In Stock, Qty 12

0

334

Cub Cadet BS-93381

Screw Armature Mounting Sem

$

$

Not available

337

Cub Cadet 759-3331

Plug Spark (1-1/2" High 37-42 M.M.)

$3.99

$

In Stock, only 2 left!

0

353

Cub Cadet BS-92791

Washer Lock Shakeproof
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

354

Cub Cadet BS-90576

Nut Hex 8-32
(Superseded to 712-0142)

$4.49

$

In Stock, Qty 12

0

356

Cub Cadet BS-398808

Wire Ground

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-393411

Gasket Set

$60.99

$

In Stock, only 1 left!

0

520

Cub Cadet BS-93722

Terminal Spade
(Superseded to BS-691084)

$6.49

$

In Stock, only 2 left!

0

552

Cub Cadet BS-231597

Bushing Governor Crank (1/4" I.D.)

$

$

Not available

562

Cub Cadet BS-92613

Bolt Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut Hex, 10-24

$

$

Not available

614

Cub Cadet BS-93306

Cotter Hairpin

$

$

Not available

615

Cub Cadet BS-93307

Retainer E-Ring

$5.99

$

In Stock, only 4 left!

0

634A

Cub Cadet BS-491323

Seal Oil
(Superseded to BS-692407)

$7.99

$

In Stock, Qty 11

0

635

Cub Cadet BS-66538

Elbow Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 17

0

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

741

Cub Cadet BS-262135

Gear Timing
(Superseded to BS-691284)

$10.99

$

Usually ships in 2-12 days

0

757

Cub Cadet BS-212359

Link Counterweight

$

$

Not available

758

Cub Cadet BS-391373

CounterweightAssembly

$

$

Not available

759

Cub Cadet BS-298909

Pin Counterweight

$8.99

$

In Stock, only 4 left!

0

761

Cub Cadet BS-93875

Screw Counterweight

$

$

Currently unavailable

851

Cub Cadet BS-221798

Terminal Ignition Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

869

Cub Cadet BS-261463

Seat Intake Valve
(Superseded to BS-691802)

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

870

Cub Cadet BS-210940

Seat Exhaust Valve
(Superseded to BS-691844)

Note: (Standard)

$18.99

$

In Stock, only 1 left!

0

871

Cub Cadet BS-261961

Guide Exhaust Valve

$14.99

$

Usually ships in 2-12 days

0

985

Cub Cadet BS-398525

Insulator Assembly
(Superseded to BS-691972)

$8.49

$

In Stock, Qty 6

0

1019

Cub Cadet BS-491254

Decal Kit

$27.99

$

Usually ships in 2-12 days

0

1020

Cub Cadet BS-261242

Eccentric

$

$

Not available

1021

Cub Cadet BS-94160

Pin Eccentric

$

$

Not available
