1106 (139-519-100) - Cub Cadet Rear-Engine Riding Mower Engine (1989) B&S 11 HP 253707-0419-01 Part 2 Parts Diagram

Rear-Engine Riding Mower Engine

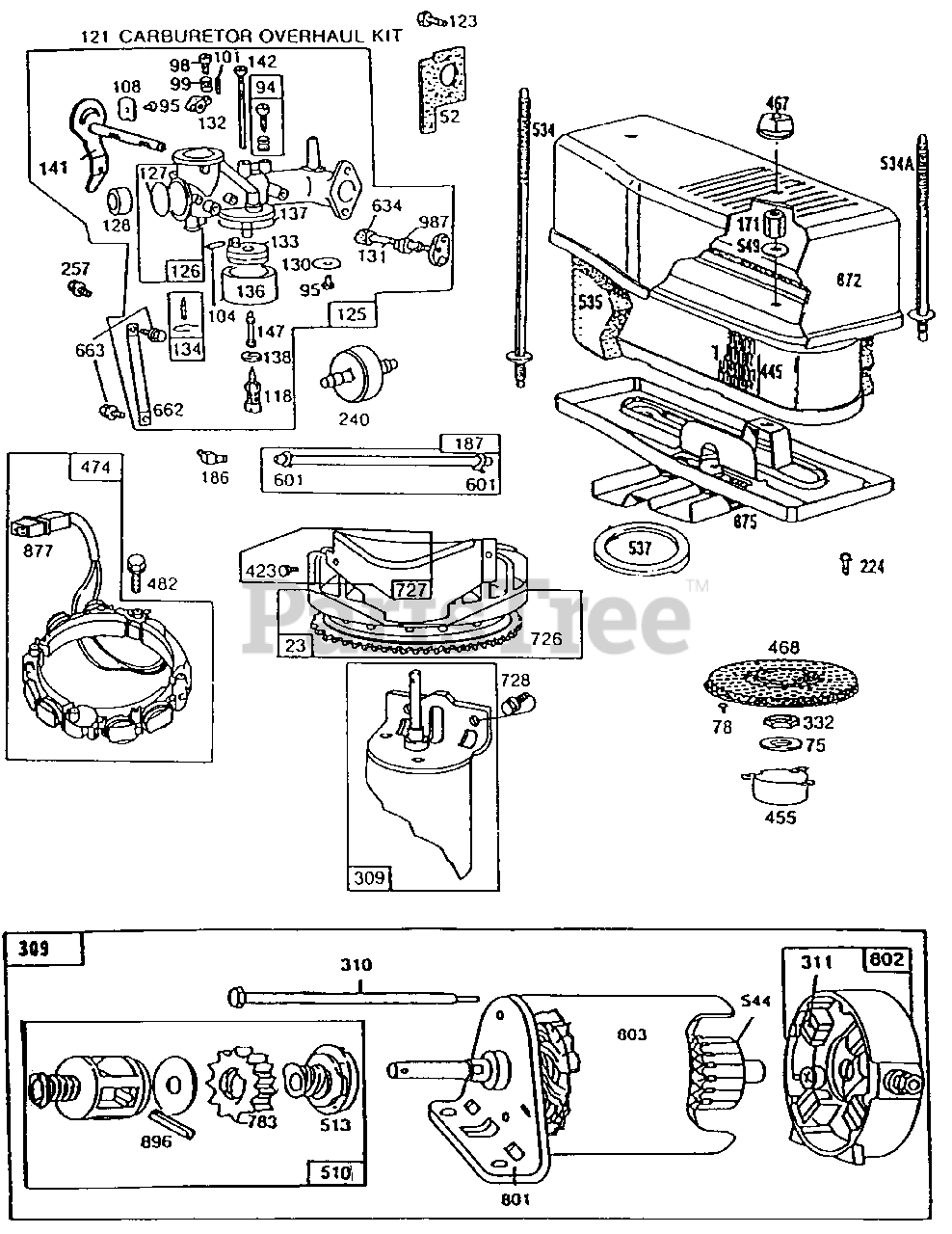

B&S 11 HP 253707-0419-01 Part 2 Parts Diagram

  • Title
23

Cub Cadet BS-391988

Flywheel and Ring Gear Ass'y. Magneto

$

$

Not available

52

Cub Cadet BS-270872

Gasket Carburetor Mounting
(Superseded to BS-272554S)

Note: (Included in Gasket Set-Part No.393411)

$5.49

$

In Stock, Qty 20+

0

75

Cub Cadet BS-220865

Washer Spring

$

$

Currently unavailable

78

Cub Cadet BS-93805

Screw Sem
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

94

Cub Cadet BS-292681

Valve Assembly Carburetor Idle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$11.99

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-93499

Screw Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 3 left!

0

98

Cub Cadet BS-91920

Screw Machine, Fill. Hd. 8-32 x 518"

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

101

Cub Cadet BS-93043

Pin Throttle Stop

$

$

Not available

104

Cub Cadet BS-230896

Pin Float Hinge

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

108

Cub Cadet BS-222010

Valve Choke

$7.99

$

In Stock, only 1 left!

0

118

Cub Cadet BS-396568

Valve Needle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$20.99

$

In Stock, only 1 left!

0

121

Cub Cadet BS-394698

Carburetor Overhaul Kit

$32.99

$

In Stock, Qty 8

0

123

Cub Cadet BS-93357

Screw Carburetor Mtg.

$

$

Not available

125

Cub Cadet BS-490472

Carburetor Assembly

$

$

Not available

126

Cub Cadet BS-490473

Body Assembly Carburetor

$109.99

$

Usually ships in 2-12 days

0

127

Cub Cadet BS-221997

Plug Welch

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, only 1 left!

0

128

Cub Cadet BS-211960

VenturiCarburetor

$

$

Currently unavailable

130

Cub Cadet BS-222433

Valve Throttle

$9.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-491006

Shaft and Lever Throttle

$21.99

$

In Stock, only 2 left!

0

132

Cub Cadet BS-211712

Stop Throttle
(Superseded to BS-691708)

$8.99

$

Usually ships in 2-12 days

0

133

Cub Cadet BS-299707

Float Carburetor

$13.99

$

In Stock, Qty 8

0

134

Cub Cadet BS-394681

Valve Fuel Inlet

Note: Note: BS-394682 Valve Fuel Inlet

$7.99

$

In Stock, Qty 19

0

136

Cub Cadet BS-221995

Bowl Float

$8.99

$

In Stock, Qty 5

0

137

Cub Cadet BS-270511

Gasket Float Bowl

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$3.49

$

In Stock, Qty 10

0

138

Cub Cadet BS-222014

Washer Float Bowl
(Superseded to BS-690618)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.99

$

In Stock, Qty 11

0

141

Cub Cadet BS-299647

Shaft and Lever Manual Choke

$16.99

$

Usually ships in 2-12 days

0

142

Cub Cadet BS-299740

Nozzle Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$15.99

$

In Stock, only 2 left!

0

147

Cub Cadet BS-231323

Screw Nozzle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$24.99

$

Usually ships in 2-12 days

0

171

Cub Cadet BS-231532

Nut Air Cleaner Mtg.
(Superseded to BS-691668)

$5.49

$

In Stock, Qty 10

0

186

Cub Cadet BS-67218

Connector Fuel Pipe

$

$

Not available

187

Cub Cadet BS-393815

Line Fuel

Note: (Cut to Suit)

$11.99

$

In Stock, only 1 left!

0

224

Cub Cadet BS-94018

Screw Sem
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0

240

Cub Cadet BS-298090

Filter Fuel
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

257

Cub Cadet BS-93543

Screw Control Casing to Screw

$

$

Not available

309

Cub Cadet BS-394805

Motor Starting (12 Volt)
(Superseded to BS-497595)

$110.99

$

In Stock, Qty 13

0

310

Cub Cadet BS-94003

Thru Bolt Ass'y.

$

$

Currently unavailable

311

Cub Cadet BS-395538

Brush Ass'y.

$24.99

$

Usually ships in 2-12 days

0

332

Cub Cadet BS-92284

Nut Hex
(Superseded to 712-3056)

$4.49

$

In Stock, Qty 11

0

423

Cub Cadet BS-93984

Screw Sem

$

$

Currently unavailable

445

Cub Cadet BS-491519

Cartridge Air Cleaner
(Superseded to BS-399806S)

$28.99

$

In Stock, only 4 left!

0

455

Cub Cadet BS-222561

Cup Screen Mounting

$

$

Not available

467

Cub Cadet BS-212706

Knob AirCleaner
(Superseded to BS-691668)

$5.49

$

In Stock, Qty 10

0

468

Cub Cadet BS-222562

Screen Flush Rotating
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

474

Cub Cadet BS-393474

Stator Alternator (Dual Circuit)
(Superseded to BS-592831)

$101.99

$

In Stock, only 1 left!

0

482

Cub Cadet BS-93621

Screw Sem
(Superseded to BS-691183)

$

$

Not available

510

Cub Cadet BS-490421

Drive Ass'y.
(Superseded to BS-696540)

Note: (Incl. Ref. Nos. 513, 783, 896)

$29.99

$

In Stock, only 3 left!

0

513

UNKNOWN

$

$

Not available

534

Cub Cadet BS-94248

Screw Air Cleaner

$

$

Not available

534A

Cub Cadet BS-94246

Screw Air Cleaner

$11.99

$

Usually ships in 2-12 days

0

535

Cub Cadet BS-271962

Element Air Cleaner
(Superseded to BS-271962S)

$6.49

$

In Stock, Qty 13

0

537

Cub Cadet BS-270853

Gasket Air Cleaner

$9.49

$

In Stock, only 1 left!

0

544

Cub Cadet BS-390837

Armature Ass'y.

$159.99

$

In Stock, only 1 left!

0

549

Cub Cadet BS-94249

Washer Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, Qty 10

0

601

Cub Cadet BS-93053

Clamp Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

634

Cub Cadet BS-271853

Washer Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!

0

662

Cub Cadet BS-222311

Bracket Carburetor

$

$

Not available

663

Cub Cadet BS-93572

Screw
(Superseded to 710-0432)

$

$

Not available

726

Cub Cadet BS-392134

Gear Ring (Includes Mounting Parts)
(Superseded to BS-696537)

$50.99

$

In Stock, only 1 left!

0

727

Cub Cadet BS-395405

Cover Starter (Includes Mounting Screws)

$

$

Not available

728

Cub Cadet BS-93535

Screw Sem

$

$

Not available

783

UNKNOWN

$

$

Not available

801

Cub Cadet BS-394857

Drive End Cap Ass'y.

$56.99

$

Usually ships in 2-12 days

0

802

Cub Cadet BS-395537

End Cap Ass'y. Commutator (Incl. Brush Set)

$54.99

$

In Stock, only 1 left!

0

803

Cub Cadet BS-393825

Housing Ass'y.

$

$

Not available

872

Cub Cadet BS-223700

Cover Air Cleaner

$44.99

$

Usually ships in 2-12 days

0

875

Cub Cadet BS-490332

Body Air Cleaner

$

$

Not available

877

Cub Cadet BS-393456

Diode and Connector Ass'y. (Dual Circuit)

$20.99

$

In Stock, only 1 left!

0

896

UNKNOWN

$

$

Not available

987

Cub Cadet BS-398970

Seal Throttle Shaft
(Superseded to BS-692279)

$3.99

$

In Stock, only 2 left!
