11078 - Troy-Bilt Mini-Tiller (SN: HH026799 & Below) MAIN ASSEMBLY Parts Diagram

Mini-Tiller

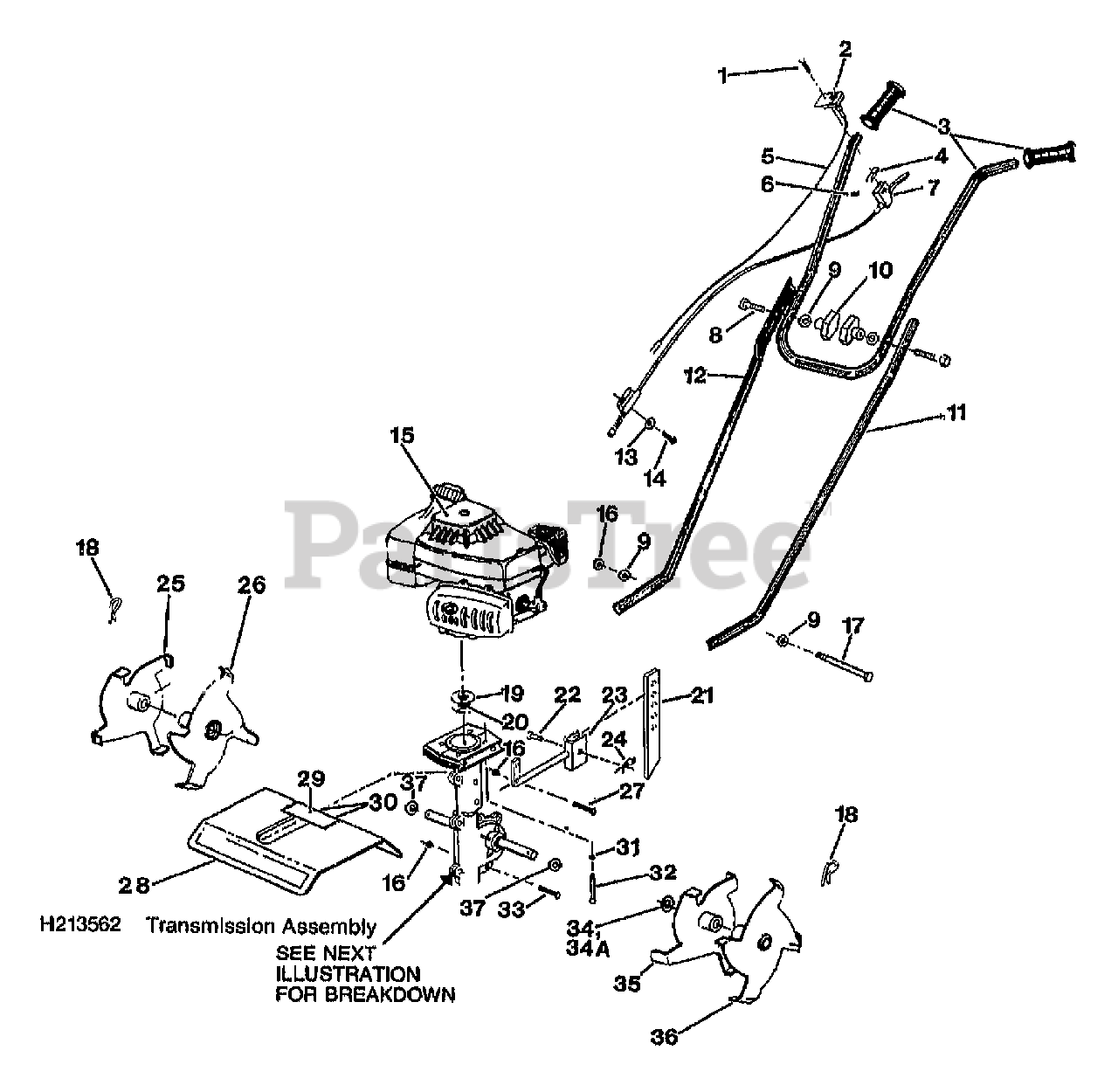

MAIN ASSEMBLY Parts Diagram

  • Title

Troy-Bilt H214166

ASSM-TRANSMISSION SPDY HOE

$

$

Currently unavailable

1

MTD 1983716

SCR-PH HD M10-24X1.375

$

$

Not available

2

Troy-Bilt H213531

ASSM-SWITCH W/BRKT HHT

$

$

Currently unavailable

3

MTD 1981046

ASSM-UPR HANDLEBAR

$

$

Not available

4

MTD 1983649

PAD-ISOLATOR TRIGGER

$

$

Not available

5

MTD 1766998

HARNESS-WIRE

$

$

Not available

6

Troy-Bilt 1185490

NUT-WELD #10-24
(Superseded to 712-0127)

$3.49

$

In Stock, Qty 13

0

7

MTD 1983646

ASSM-TRIGGER & CABLE

$

$

Not available

8

Troy-Bilt 1731025

SCR-CURVED HD 5/16-18X2.0
(Superseded to 710-1174)

$6.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 1983650

WASHER-BOW 1.0X.328X.059

$

$

Currently unavailable

10

MTD 1763767

KNOB

$

$

Not available

11

Troy-Bilt H213572

H/BAR-LWR LH HHT

$

$

Currently unavailable

12

Troy-Bilt H213571

H/BAR-LWR RH HHT

$

$

Currently unavailable

13

MTD 1983714

WASHER-FLAT SH

$

$

Not available

14

MTD 1983661

SCR-HH M8-32X1.0

$

$

Not available

15

0

ENGINE, TECUMSEH TC-200-2026C

$

$

Not available

16

Troy-Bilt 1817146

NUT-LK 1/4-20
(Superseded to 712-0324)

$3.49

$

In Stock, Qty 20+

0

17

Troy-Bilt H213514

SCR 1/4-20X4 1/2 BOLT 90036

$

$

Currently unavailable

18

Troy-Bilt 1185590

PIN-HITCH .149DIA

$4.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 1983630

CLUTCH-ROTOR SPEEDYHOE

$

$

Currently unavailable

20

Troy-Bilt H213773

SPRING-CLUTCH

$

$

Currently unavailable

21

MTD 1981014001

DRAGSTAKE-PNT

$

$

Not available

22

MTD 1983723

PIN-CLEVIS

$

$

Not available

23

Troy-Bilt H213539

ASSM-BRKT DRAGSTAKE HHT

$

$

Currently unavailable

24

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.49

$

In Stock, Qty 20+

0

25

MTD 1984430

ASSM-TINE OUTER RH

$

$

Not available

26

Troy-Bilt 1984429

ASSM-TINE INNER RH

$

$

Currently unavailable

27

Troy-Bilt 1100806

BOLT 1/4-20X1.25 (ATTACHES DRAG STAKE TO TRANSMISSION)
(Superseded to 710-0106)

$3.99

$

In Stock, only 1 left!

0

28

MTD 1985791

TINE COVER W/DECAL

$

$

Not available

29

Troy-Bilt H213785

PLATE-REAR TINE COVER

$

$

Currently unavailable

30

Troy-Bilt H200723

SCR-PHP M10-32X.38 STH ZP

$

$

Currently unavailable

31

MTD 9901

WASHER-.88X312X.08 ZP

$

$

Not available

32

Troy-Bilt 90021

SCR-HH 1/4-20X2.00 GR5

$

$

Currently unavailable

33

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 1904183

KIT-DUST CAP

$

$

Not available

34A

MTD 1983052

SCR M10-32X.25

$

$

Not available

35

Troy-Bilt 1984427

ASSM-TINE INNER LH

$

$

Currently unavailable

36

Troy-Bilt 1984428

ASSM-TINE OUTER LH

$

$

Currently unavailable

37

Troy-Bilt 1983713

WASHER-FELT 1.5X.72X.13

$4.99

$

Usually ships in 3-6 days

0

MTD 11073

DECAL-LOGO GARDEN WAY SPEEDY HOE (LOCATED ON FRONT ON TINE COVER)

$

$

Not available

MTD 1983094

DECAL-CAUTION (LOCATED ON REAR OF TINE COVER)

$

$

Not available

MTD 1983095

DECAL-WARNING (LOCATED ON REAR OF TINE COVER)

$

$

Not available

MTD 1983096

ENGINE/TINE SPEED DECAL (LOCATED ON RIGHT HANDLEBAR)

$

$

Not available

MTD 1983097

DECAL-ENGINE ON/OFF (LOCATED ON TOP OF RIGHT HANDLEBAR)

$

$

Not available

Troy-Bilt 1983648

SPACER-TINE 1.0X.8X1.31LG

$5.99

$

Usually ships in 3-6 days

0

MTD 1983647

CUP-MEASURING

$

$

Not available

Troy-Bilt 1982393

KIT-TINE REPLACE 85059 (INCL. 25,26,35,36, TWO 18. TWO 37)

$

$

Currently unavailable

Troy-Bilt H214166

ASSM-TRANSMISSION (INCL. 2-7)

$

$

Currently unavailable

Troy-Bilt 9202

TIE-RED
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0
