111 (0350025U) - Cub Cadet Lawn Tractor Engine-11 HP B&S-Electric Start Parts Diagram

Lawn Tractor

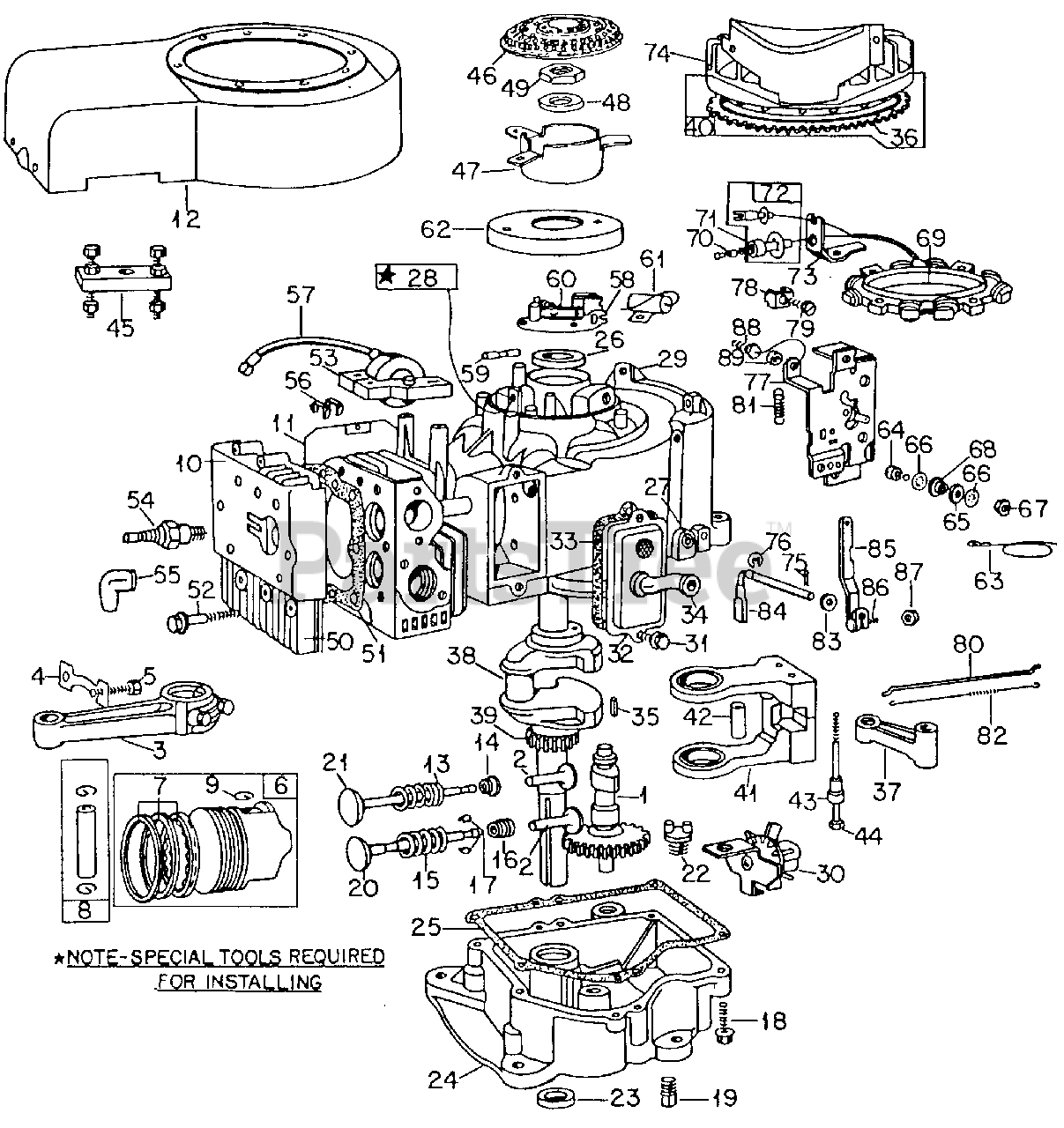

Engine-11 HP B&S-Electric Start Parts Diagram

  • Title

Cub Cadet BS-253707-0326

Engine Assy, Service (Complete)

$

$

Not available

Cub Cadet 710-3050

Bolt, 5/16 X 1-1/2 Crg Type 5
(Superseded to 710-0262)

$3.99

$

In Stock, Qty 14

0

Cub Cadet 710-0805

Bolt, 5/16 X 1-1/2 Type 5
(Superseded to 710-0805A)

$3.99

$

In Stock, only 2 left!

0

Nut, 5/16 Pln P/T Lock Type 5

Note: (Common Hardware, Purchase Locally)

$

$

Not available

Cub Cadet BS-396610

Engine Assy, Short Block

$439.99

$

Usually ships in 2-12 days

0

1

Cub Cadet BS-212897

Camshaft w/Gear

$

$

Not available

2

Cub Cadet BS-261183

Tappet, Valve

$

$

Not available

3

Cub Cadet BS-490348

Rod Assy, Connecting

$50.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-222299

Lock, Screw Head

$

$

Not available

5

Cub Cadet BS-92909

Screw, Connecting Rod

$

$

Not available

6

Cub Cadet BS-391285

Piston Assy, Std

$

$

Not available

7

Cub Cadet BS-391780

Set, Piston Ring, Std
(Superseded to BS-499996)

$53.99

$

In Stock, Qty 5

0

8

Cub Cadet BS-299691

Pin Assy, Piston

$17.99

$

In Stock, only 1 left!

0

9

Cub Cadet BS-260924

Ring, Piston Pin Lock

$

$

Not available

10

Cub Cadet BS-222725

Cover, Cylinder Head

$

$

Not available

11

Cub Cadet BS-222744

Shield, Cylinder

$

$

Not available

Cub Cadet BS-93163

Screw, Shield

$

$

Currently unavailable

12

Cub Cadet BS-398333

Housing, Blower

$

$

Currently unavailable

Cub Cadet 710-3049

Bolt, 1/4 X 9/16 Type 5

$

$

Not available

13

Cub Cadet BS-65906

Spring, Intake Valve

$

$

Not available

14

Cub Cadet BS-221596

Retainer, Intake Valve
(Superseded to BS-690656)

$

$

Not available

15

Cub Cadet BS-26828

Spring, Exhaust Valve

$

$

Not available

16

Cub Cadet BS-93630

Retainer, Roto-Coil
(Superseded to BS-494553)

$7.99

$

In Stock, only 1 left!

0

17

Cub Cadet BS-292260

Roto-Coil, Exhaust Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

18

Cub Cadet BS-93585

Screw, Sump Mounting

$

$

Not available

19

Cub Cadet BS-91084

Plug, 3/8-18 Automotive Sq Hd Oil Drain
(Superseded to BS-690946)

$5.99

$

In Stock, Qty 17

0

20

Cub Cadet BS-261185

Valve, Exhaust

$

$

Not available

21

Cub Cadet BS-261462

Valve, Intake

$

$

Not available

22

Cub Cadet BS-66768

Plug, Oil Filler
(Superseded to BS-281658S)

$4.49

$

In Stock, only 2 left!

0

23

Cub Cadet BS-391086

Seal, Oil
(Superseded to BS-391086S)

$6.49

$

In Stock, Qty 20+

0

24

Cub Cadet BS-391784

Cover, Crankcase Oil Sump

$288.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-271702

Gasket, Crankcase
(Superseded to BS-271702S)

$10.99

$

In Stock, Qty 5

0

26

Cub Cadet BS-291675

Seal, Oil
(Superseded to BS-291675S)

$6.99

$

In Stock, Qty 20+

0

27

Cub Cadet BS-231055

Bushing, Governor
(Superseded to BS-491986)

$

$

Not available

28

Cub Cadet BS-23513

Bushing, Plunger

$2.49

$

Usually ships in 2-12 days

0

29

~NLA

Cylinder Assy

$

$

Not available

30

Cub Cadet BS-490815

Oil Slinger, Governor Gear
(Superseded to BS-691968)

$37.99

$

In Stock, Qty 13

0

31

Cub Cadet BS-93394

Screw, Breather Mounting
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

32

Cub Cadet BS-391406

Breather, Valve Chamber
(Superseded to BS-495735)

$63.99

$

In Stock, only 1 left!

0

33

Cub Cadet BS-27803

Gasket, Breather & Valve Chamber
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet BS-280100

Tube, Breather
(Superseded to BS-692253)

$9.99

$

In Stock, Qty 10

0

35

Cub Cadet BS-222698

Key, Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

36

Cub Cadet BS-392134

Gear, Ring
(Superseded to BS-696537)

$50.99

$

Usually ships in 2-12 days

0

37

Cub Cadet BS-212359

Link, Counterweight

$

$

Not available

38

Cub Cadet BS-392299

Crankshaft

$

$

Not available

39

Cub Cadet BS-261196

Gear, Timing

$

$

Currently unavailable

40

Cub Cadet BS-391988

Flywheel w/Ring Gear Assy

$

$

Not available

41

Cub Cadet BS-391373

Counterweight Assy

$

$

Not available

42

Cub Cadet BS-298909

Pin, Counterweight

$8.99

$

In Stock, only 4 left!

0

43

Cub Cadet BS-231038

Spacer, Counterweight

$

$

Currently unavailable

44

Cub Cadet BS-93875

Screw, Counterweight

$

$

Currently unavailable

45

Cub Cadet BS-19203

Puller, Flywheel

$23.99

$

In Stock, only 1 left!

0

46

Cub Cadet BS-222562

Screen, Flywheel
(Superseded to BS-691748)

$232.99

$

In Stock, only 1 left!

0

47

Cub Cadet IH-77652-C1

Cup, Screen Mounting

$

$

Not available

Cub Cadet BS-93808

Screw, Flywheel Screen
(Superseded to BS-691655)

$3.99

$

Usually ships in 2-12 days

0

48

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

49

Cub Cadet 712-3056

Nut, 5/8-NF

$4.49

$

In Stock, Qty 11

0

50

Cub Cadet BS-212914

Head, Cylinder

$

$

Not available

51

Cub Cadet BS-271866

Gasket, Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, Qty 20+

0

52

Cub Cadet BS-93723

Screw, Cylinder Head

$

$

Not available

53

Cub Cadet BS-298968

Armature Assy, Magneto

$

$

Not available

Cub Cadet BS-93381

Screw, Armature Mounting

$

$

Not available

54

Cub Cadet 759-3331

Plug, Spark (Champion)

$3.99

$

In Stock, only 2 left!

0

55

Cub Cadet BS-66538

Elbow, Spark Plug Insulator
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 17

0

56

Cub Cadet IH-539882-R1

Clip, Wire

$

$

Currently unavailable

57

Cub Cadet BS-221798

Terminal, Magneto Cable
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

58

Cub Cadet BS-391284

Breaker Assy, Ignition

$44.99

$

Usually ships in 2-12 days

0

59

Cub Cadet BS-65704

Plunger, Breaker Points

$

$

Not available

60

Cub Cadet BS-26018

Spring, Breaker Arm

$7.49

$

In Stock, only 1 left!

0

Cub Cadet IH-19548-R91

Screw, No. 8 X 5/16 Znp H/Hds L/W Mach

$

$

Currently unavailable

61

Cub Cadet BS-29861

Condenser

$25.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-93042

Screw, Condenser Mounting

$

$

Currently unavailable

62

Cub Cadet IH-76598-C1

Cover, Points & Condenser

$

$

Currently unavailable

Cub Cadet IH-77648-C1

Screw, Cover Mounting

$

$

Currently unavailable

63

Cub Cadet IH-77649-C1

Wire, Ground

$

$

Currently unavailable

64

Screw, No. 8 X 5/8 Mach Ground

Note: (Common Hardware, Purchase Locally)

$

$

Not available

65

Cub Cadet BS-66068

Washer, Insulating

$

$

Currently unavailable

66

Cub Cadet BS-92791

Washer, Internal Tooth Lock
(Superseded to BS-691077)

$3.49

$

Usually ships in 2-12 days

0

67

Cub Cadet 712-0142

Nut, No. 8 Mach

$4.49

$

In Stock, Qty 12

0

68

Cub Cadet BS-66554

Collar, Insulating

$

$

Currently unavailable

69

Cub Cadet BS-391529

Stator, Alternator
(Superseded to BS-696578)

Note: (On tractors w/Serial No. 41208 & below, also furnish cable 725-3034)

$124.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-393814

Cable Assy, Diode & Connector

Note: (Use in servicing cable on stator BS-391529)

$18.99

$

In Stock, only 2 left!

0

70

Cub Cadet BS-391507

Diode

$17.99

$

Usually ships in 2-12 days

0

71

Cub Cadet BS-261269

Spring, Diode

$2.49

$

Usually ships in 2-12 days

0

Cub Cadet BS-93621

Screw, Stator Mounting
(Superseded to BS-691183)

$

$

Not available

72

Cub Cadet BS-393304

Holder, Fuse

$

$

Currently unavailable

73

Cub Cadet BS-222211

Bracket, Fuse

$6.49

$

Usually ships in 2-12 days

0

Cub Cadet IH-77640-C1

Washer

$

$

Currently unavailable

Cub Cadet BS-93394

Screw
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

74

Cub Cadet BS-395405

Cover, Starter Shield

$

$

Not available

Cub Cadet BS-93410

Screw, Starter Shield Mtg

$7.99

$

In Stock, only 1 left!

0

75

Cub Cadet BS-93306

Cotter, Governor Crank

$

$

Not available

76

Cub Cadet BS-93307

Retainer, Governor Crank

$5.99

$

In Stock, only 4 left!

0

77

Cub Cadet BS-396349

Plate, Governor

$

$

Not available

Cub Cadet 710-0432

Screw, No. 10-NF X 3/8 Hex Hd Tap

$

$

Not available

78

Cub Cadet BS-221535

Clamp, Casting
(Superseded to BS-691024)

$3.99

$

In Stock, only 1 left!

0

79

Cub Cadet BS-93496

Screw w/Lock Washer
(Superseded to BS-690804)

$2.99

$

Usually ships in 2-12 days

0

80

Cub Cadet IH-77674-C1

Link, Governor

$

$

Not available

81

Cub Cadet BS-261306

Spring, Governor
(Superseded to BS-792813)

$6.99

$

In Stock, Qty 9

0

82

Cub Cadet BS-261197

Spring, Governor Link

$8.49

$

In Stock, only 3 left!

0

83

Cub Cadet IH-76586-C1

Washer, Governor Crank

$

$

Currently unavailable

84

Cub Cadet BS-231058

Crank, Governor
(Superseded to BS-692012)

$13.99

$

In Stock, only 4 left!

0

85

Cub Cadet BS-391733

Lever Assy, Governor

$

$

Not available

86

Cub Cadet BS-92613

Bolt, Governor Lever

$

$

Not available

87

Cub Cadet BS-231082

Nut, No. 10 Mach

$

$

Not available

88

Cub Cadet BS-93686

Screw, Governor Control Plate Mounting

$

$

Currently unavailable

89

Cub Cadet BS-231039

Spacer

$

$

Currently unavailable

Cub Cadet BS-393411

Gasket Set, Overhaul

$60.99

$

In Stock, only 1 left!

0

Cub Cadet BS-271866

Gasket, Cylinder Head
(Superseded to BS-271866S)

$9.49

$

In Stock, Qty 20+

0

Cub Cadet BS-27803

Gasket, Valve Cover
(Superseded to BS-27803S)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet BS-271702

Gasket, Crankcase Cover
(Superseded to BS-271702S)

$10.99

$

In Stock, Qty 5

0

Cub Cadet BS-270872

Gasket, Carburetor
(Superseded to BS-272554S)

$5.49

$

In Stock, Qty 20+

0
