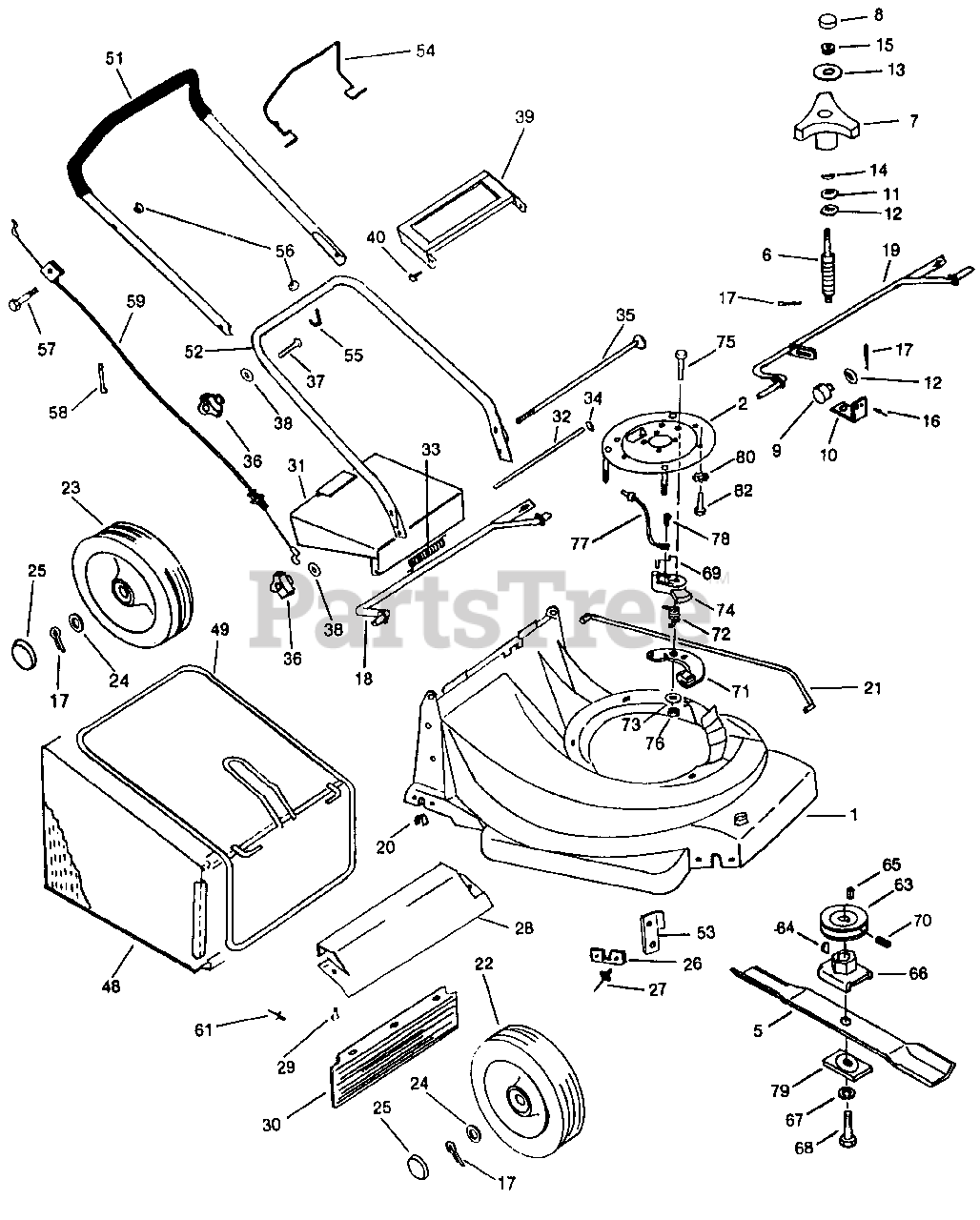

111-127R033 - MasterCut by MTD Walk-Behind Mower (1991) (Ace Hardware) Parts Parts Diagram

Walk-Behind Mower

Parts Parts Diagram

  • Title

1

MTD 782-0005

Deck-16" Molded

$

$

Not available

2

MTD 682-9003

Plate Assembly-Engine Mtg.

$

$

Currently unavailable

5

MTD 742-0567

Blade-16"

$

$

Not available

6

MTD 711-0901

Adjuster Screw

$

$

Not available

7

MTD 720-0259

Knob-Height Adjust

$

$

Currently unavailable

8

MTD 720-0260

Plug-Height Adjust Knob

$

$

Not available

9

MTD 712-0408

Trunnion-Height Adjust

$

$

Currently unavailable

10

MTD 782-0510

Bracket-Screw Brace

$

$

Currently unavailable

11

MTD 736-0469

Washer
(Superseded to 736-0198)

Note: (Special)

$

$

Not available

12

MTD 736-0470

Washer
(Superseded to 936-0275)

Note: (Special)

$

$

Not available

13

MTD 736-0471

Washer

Note: (Special)

$

$

Not available

14

UNKNOWN

$

$

Not available

15

MTD 712-0409

Nut-Metric

Note: (Special)

$

$

Not available

16

MTD 728-0143

Blind Rivet 3/16"
(Superseded to 928-0180)

$

$

Not available

17

MTD 714-0507

Cotter Pin 3/32 x 3/4"

$4.49

$

In Stock, only 4 left!

0

18

MTD 611-0004

Rear Axle Assembly

$

$

Currently unavailable

19

MTD 611-0005

Front Axle Assembly

$

$

Not available

20

MTD 741-0583

Bushing-Axle

$

$

Currently unavailable

21

MTD 747-0792

Link Rod

$

$

Currently unavailable

22

MTD 734-1658

Wheel-6"

$

$

Currently unavailable

23

MTD 734-1659

Wheel-7"

$

$

Not available

24

MTD 736-0185

Fl-Wash. 3/8"

$3.49

$

In Stock, Qty 16

0

25

MTD 720-0251

Hub Cap

$

$

Not available

26

MTD 782-9009

Retainer-Front Axle

$

$

Not available

27

MTD 728-0176

Blind Rivet 5/32"

$

$

Currently unavailable

28

MTD 782-7004

Support-Deck & Trail Shield

$

$

Currently unavailable

29

MTD 710-1200

Screw-Metric

Note: (Special)

$

$

Not available

30

MTD 731-1247

Trail Shield

$

$

Not available

31

MTD 731-1248

Rear Door Assembly

$

$

Not available

32

MTD 747-0793

Hinge Pin

$

$

Not available

33

MTD 732-0669

Spring-Rear Door

$

$

Currently unavailable

34

MTD 726-0310

Retainer-Push Nut

Note: (Special)

$

$

Not available

35

MTD 747-0794

Pin-Handle

$

$

Currently unavailable

36

MTD 720-0241

Knob-Handle
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

37

MTD 710-1152

Saddle Bolt

$

$

Not available

38

MTD 736-0486

Saddle Washer

$

$

Not available

39

MTD 720-0253

Trimplate

$

$

Currently unavailable

40

MTD 710-1168

Screw #10 x 3/4"
(Superseded to 710-1128)

$

$

Not available

48

MTD 764-0276

Grass Bag

$

$

Not available

49

MTD 664-0101

Frame Assembly-Grass Bag

$

$

Not available

51

MTD 649-0151

Upper Handle w/Foam Grip

$

$

Currently unavailable

52

MTD 749-0846

Lower Handle

$

$

Not available

53

MTD 782-0508

Brace-Front Axle

$

$

Currently unavailable

54

MTD 747-0791

Lever-Engine Control

$

$

Currently unavailable

55

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 15

0

56

MTD 712-0441

L-Nut 1/4-20 Thd.

$

$

Not available

57

MTD 710-0106

Hex Bolt 1/4-20 x 1-1/4" *

$3.99

$

In Stock, only 1 left!

0

58

MTD 726-0300

Plastic Tie

$

$

Currently unavailable

59

MTD 746-0773

Cable-Engine Control

$

$

Not available

61

MTD 728-0225

Blind Rivet

$

$

Not available

62

MTD 710-0258

Engine Mtg. Bolt
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

63

MTD 756-0595

Pulley-Brake

$

$

Not available

64

MTD 714-0205

Square Key

$

$

Not available

65

MTD 714-0138

Woodruff Key #6

$

$

Not available

66

MTD 648-0002

Adapter-Blade Mtg.

$

$

Not available

67

MTD 736-0217

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 13

0

68

MTD 710-0152

Blade Bolt
(Superseded to 710-1039)

Note: (Special)

$4.49

$

In Stock, Qty 11

0

69

MTD 732-0667

Spring-Contact

$

$

Not available

70

MTD 710-0983

Set Scr. 5/16-18 x 3/8"

$

$

Currently unavailable

71

MTD 682-9002

Arm Assembly-Brake

$

$

Currently unavailable

72

MTD 732-0668

Spring-Brake Arm

$

$

Not available

73

MTD 736-0479

Fl-Wash. 3/8"
(Superseded to 936-0101)

$4.49

$

Usually ships in 3-6 days

0

74

MTD 725-1598

Housing-Spring

$

$

Not available

75

MTD 710-0347

Hex Bolt 3/8-16 x 1-3/4"

$4.99

$

In Stock, Qty 20+

0

76

MTD 712-0430

L-Nut 3/8-16 Thd.
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

77

MTD 629-0003

Wire Assembly-Eng. Control

$

$

Currently unavailable

78

MTD 710-1138

Screw #6-20 x 3/8"

$

$

Currently unavailable

79

MTD 782-9005

Retainer Plate

$

$

Not available

80

MTD 736-0498

Int. L-Wash. 5/16" I.D.

$3.99

$

Usually ships in 3-6 days

0
