111-412R190 - White Outdoor 21" Walk-Behind Mower (1991) Mower Assembly Parts Diagram

21" Walk-Behind Mower

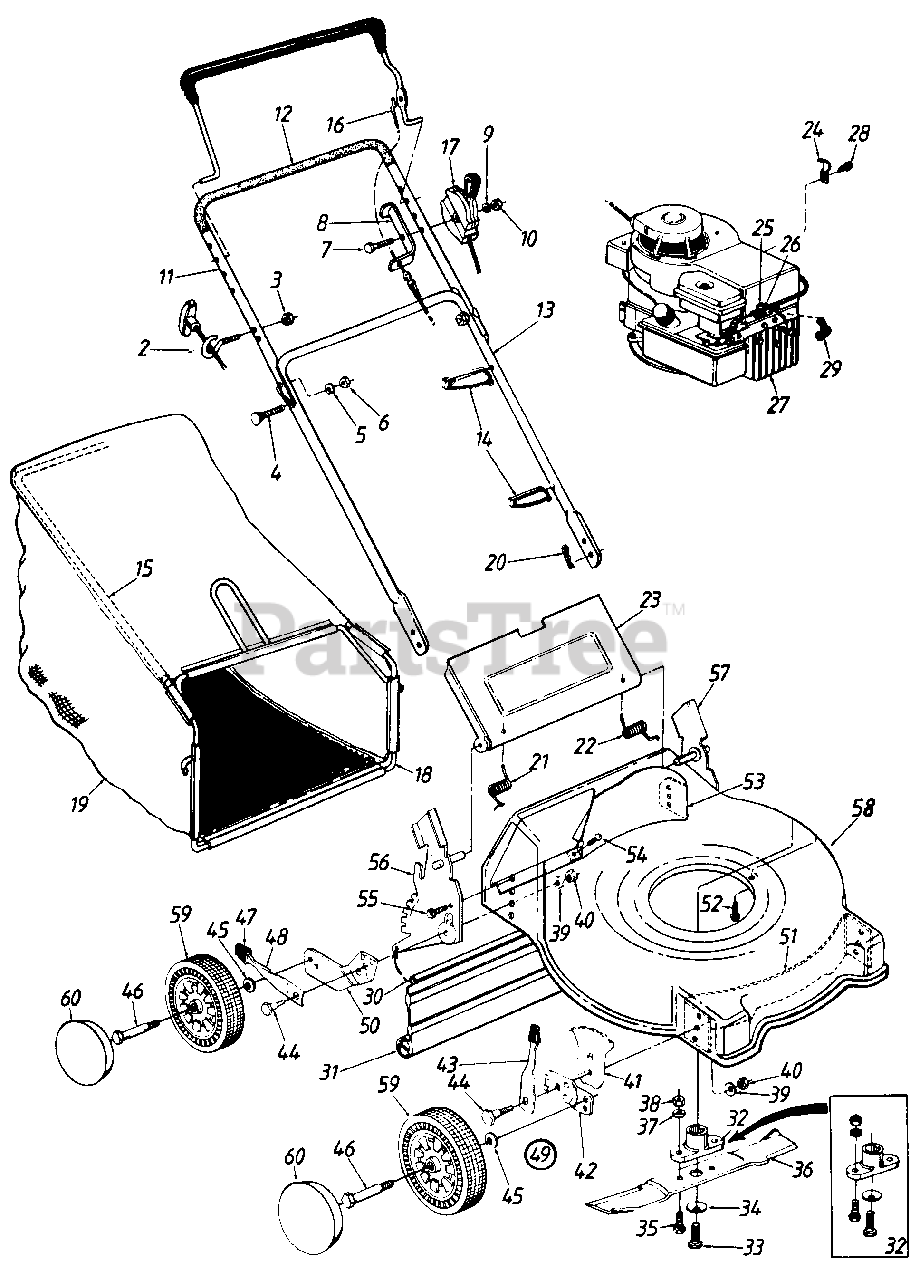

Mower Assembly Parts Diagram

  • Title

White Outdoor 731-1135

Control Handle Ass'y. w/Plastic
(Superseded to 747-0748)

$

$

Not available

2

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 15

0

3

White Outdoor 712-0324

Hex L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

5

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

7

White Outdoor 710-1216

Hex Bolt 1/4-20 x 1-7/8" Lg.

$

$

Not available

8

White Outdoor 17174

Cable Brkt.

$

$

Not available

9

White Outdoor 736-0175

Spr Wash. 1/4 I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

10

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

11

White Outdoor 749-0756A

Upper Handle

$

$

Not available

12

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

Note: (Optional)

$30.99

$

Usually ships in 3-6 days

0

13

White Outdoor 749-0372B

Lower Handle
(Superseded to 749-0928A)

$33.99

$

In Stock, Qty 10

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 4 left!

0

15

White Outdoor 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

White Outdoor 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

16

White Outdoor 746-0553

Control Cable-36"
(Superseded to 946-0553)

$22.99

$

In Stock, only 1 left!

0

17

White Outdoor 746-0800

Throttle Control Ass'y. Comp.
(Superseded to 746-0800A)

$57.99

$

Usually ships in 3-6 days

0

18

White Outdoor 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

White Outdoor 764-0311-0637

FRONT CATCHER FRAME - POWDER BLACK (0637)

$

$

Not available

$

$

19

White Outdoor 764-0309

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$3.99

$

In Stock, Qty 20+

0

21

White Outdoor 732-0678

Door Spring-R.H.

$7.99

$

Usually ships in 3-6 days

0

22

White Outdoor 732-0677

Door Spring-L.H.
(Superseded to 932-0677)

$7.49

$

Usually ships in 3-6 days

0

23

White Outdoor 782-7000

Rear Discharge Door

Variations

White Outdoor 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

White Outdoor 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-7000-0674

No Longer Available DOOR-REAR DISCHARG - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

White Outdoor 12894A

Cable Clamp

$

$

Not available

25

White Outdoor 751-0369

Cable Clamp

$

$

Not available

26

White Outdoor 710-0227

Hex AB-Tap Scr. #8 x .5" Lg.

$3.99

$

In Stock, Qty 20+

0

27

Engine

$

$

Not available

28

White Outdoor 710-0429

Hex B-TaP Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

29

White Outdoor 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

White Outdoor 732-0663

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, Qty 8

0

31

White Outdoor 731-1236

Rear Flap
(Superseded to 731-04998)

$29.99

$

In Stock, Qty 10

0

32

White Outdoor 753-0484

Blade Adapter Kit

$21.99

$

In Stock, only 1 left!

0

33

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 736-0452

Bell-Wash. .39" I.D.

$4.49

$

In Stock, Qty 16

0

35

White Outdoor 710-1055

Hex Bolt 3/8-24 x 1 Lg.

$4.49

$

Usually ships in 3-6 days

0

36

White Outdoor 742-0306A

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 2 left!

0

37

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

38

White Outdoor 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

39

White Outdoor 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

White Outdoor 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

41

White Outdoor 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$11.99

$

In Stock, only 2 left!

0

42

White Outdoor 15262B

Pivot Bar

Variations

White Outdoor 15262B-0637

PIVOT BAR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0

43

White Outdoor 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, Qty 8

0

44

White Outdoor 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

45

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

46

Axle Bolt

$

$

Not available

White Outdoor 738-0102

Axle Bolt

$9.49

$

In Stock, Qty 11

0

47

White Outdoor 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

48

White Outdoor 732-0417A

Spring Lever

$12.99

$

Usually ships in 3-6 days

0

49

White Outdoor 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$60.99

$

In Stock, Qty 7

0

White Outdoor 14579

Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$60.99

$

In Stock, Qty 7

0

50

White Outdoor 14765

Pivot Bar

$19.99

$

Usually ships in 3-6 days

0

51

White Outdoor 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

White Outdoor 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

White Outdoor 710-0654

Hex L-Wash. Hd. Scr. 3/8-16 x Lg.
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

53

White Outdoor 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

White Outdoor 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

54

White Outdoor 710-1017

Torx Bolt 1/4-20 x .5" Lg.

$7.99

$

In Stock, Qty 20+

0

55

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

56

White Outdoor 682-0503

Handle Brkt. Ass'y.-R.H.
(Superseded to 682-0516-0637)

$

$

Not available

57

White Outdoor 682-0502

Handle Brkt. Ass'y.-L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

White Outdoor 782-0310

21" R.D. Deck

Variations

White Outdoor 782-0310-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 782-0310-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 782-0310-0499

No Longer Available DECK ASSEMBLY-21IN - CUB BEIGE (0499)

$

$

Not available

White Outdoor 782-0310-0629

No Longer Available DECK ASSEMB - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 782-0310-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 782-0310-0648

No Longer Available DECK ASSEMBLY-21IN - TECH GRAY (0648)

$

$

Not available

White Outdoor 782-0310-0662

No Longer Available DECK ASSEMBLY-21IN - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 782-0310-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 782-0310-0671

No Longer Available DECK ASSEMBLY-21IN - BEAVER GREEN (0671)

$

$

Not available

White Outdoor 782-0310-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

59

Wheel Ass'y. Comp.

$

$

Not available

White Outdoor 734-1513B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$42.99

$

In Stock, Qty 11

0

60

Hub Cap

$

$

Not available
