111 DP2-B (UT-01496-B) - Homelite Pump Gear Case - Upper Pump Body Parts Diagram

Pump

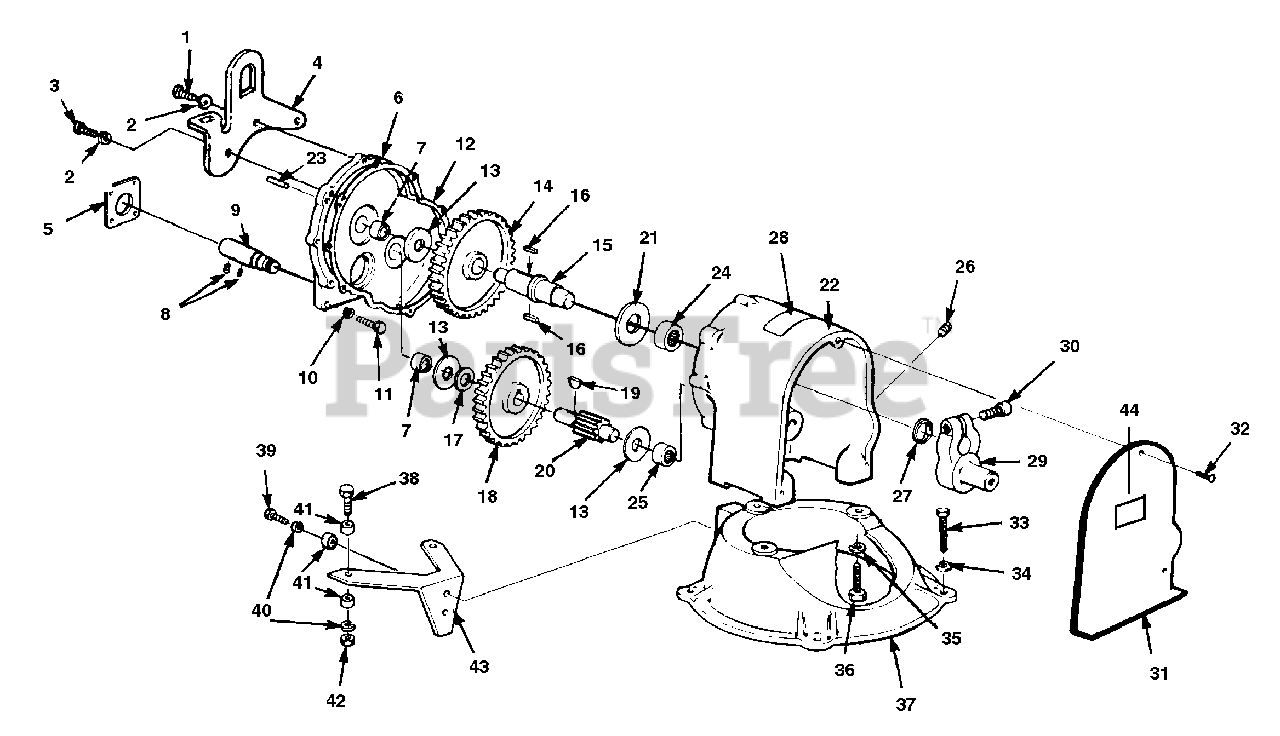

Gear Case - Upper Pump Body Parts Diagram

  • Title

1

Homelite 80882

SCREW-Hex Hd. (1/4-20 x 1 1/2")

Note: Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm

$

$

Not available

2

Homelite 83009

WASHER - lock, 1/4

$9.99

$

Usually ships in 3-7 days

0

3

Homelite 80388

SCREW - hex hd., 1/4-20 x 1 1/4

Note: Torque Specs 100-120 In/Lbs, 11.3-13.6 Nm

$

$

Not available

4

Homelite 49731

BRACKET, lifting

$

$

Not available

5

Homelite 50666

GASKET-Engine mounting

$

$

Not available

6

Homelite A50487

COVER-Gear Case w/bearings

Note: Includes Ref #7.

$

$

Not available

7

Homelite 50493

BEARING-Needle

$

$

Not available

8

Homelite 80357

SCREW-Set, 1/4-20 x 3/8 (Nylok)

Note: Torque Specs 150-180 In/Lbs, 16.9-20.3 Nm

$

$

Currently unavailable

9

Homelite PS01534

SHAFT-Extension

$

$

Currently unavailable

10

Homelite 83030

WASHER-Lock (5/16")

$

$

Not available

11

Homelite 80376

SCREW 5/16 x 24 x 1.75
(Superseded to UP07181)

$

$

Not available

12

Homelite 50485

GASKET-Gear case

$

$

Not available

13

Homelite 50471

WASHER-Thrust, small

$

$

Not available

14

Homelite 738661A

GEAR-Main
(Superseded to UP07188)

$

$

Not available

15

Homelite A51220

SHAFT-Drive

Note: Includes Ref #16.

$

$

Currently unavailable

16

Homelite 27752

KEY

$

$

Not available

17

Homelite 50496

SPACER

$

$

Not available

18

Homelite 743521

GEAR

$

$

Currently unavailable

19

Homelite 66612

KEY-Woodruff, #61

$

$

Not available

20

Homelite 50474

SHAFT-Pinion

$

$

Not available

21

Homelite 50483

WASHER-Thrust, large

$

$

Not available

22

Homelite A50492A

CASE-Gear w/bearings

Note: Includes Ref #23-27

$1160.99

$

Usually ships in 3-7 days

0

23

Homelite 74332

PIN-Dowel

$

$

Not available

24

Homelite 74252S

BEARING-Needle

$

$

Not available

25

Homelite 50493

BEARING-Needle

$

$

Not available

26

Homelite 50949

PLUG-Pipe

$

$

Not available

27

Homelite 74333

SEAL-Garlock

$

$

Not available

28

Homelite 08971

WARNING DECAL

$

$

Currently unavailable

29

Homelite 738585A

CRANK

$

$

Not available

30

Homelite 80423

SCREW-Cap (1/2-13 x 1 1/2")

Note: Torque Specs 1140-1260 In/Lbs, 128.8-142.4 Nm

$

$

Not available

31

Homelite 507311A

SHIELD-Crank

$

$

Not available

32

Homelite 51247

SCREW-Thumb (1/4-20 x 1/2")

$

$

Not available

33

Homelite 80097

SCREW-Hex hd. (3/8-16 x 1 1/2)

Note: Torque Specs 180-220 In/Lbs, 20.3-24.9 Nm

$

$

Not available

34

Homelite 83018

WASHER-Lock (3/8")

$

$

Not available

35

Homelite 83020

WASHER-Lock (1/2")

$

$

Not available

36

Homelite 80627

SCREW-Hex hd. (1/2-13 x 1 3/4")

Note: Torque Specs 540-660 In/Lbs, 61.0-74.6 Nm

$

$

Not available

37

Homelite 504642A

BODY-Pump (upper)
(Superseded to 504642)

$

$

Not available

38

Homelite 80087

SCREW-Hex hd. (5/16-18 x 1 1/2")

Note: Torque Specs 150-180 In/Lbs, 16.9-20.3 Nm

$

$

Not available

39

Homelite 82598

SCREW-Hex hd. (5/16-18 x 7/8")

Note: Torque Specs 150-180 In/Lbs, 16.9-20.3 Nm

$

$

Not available

40

Homelite 83030

WASHER-Lock (5/16")

$

$

Not available

41

Homelite 84001

WASHER-Flat (5/16")

$

$

Not available

42

Homelite 81162

NUT-Hex (5/16-18)

$

$

Not available

43

Homelite 504841A

SUPPORT-Engine
(Superseded to UP06846)

$

$

Not available

Homelite 19189B

WRENCH
(Superseded to UP03586)

Note: (Not Shown)

$

$

Not available

Homelite 54702A

STRAINER
(Superseded to UP08146)

Note: (Not Shown)

$101.99

$

Usually ships in 3-7 days

0

Homelite 55291F

OIL-GEAR
(Superseded to 55291G)

Note: (Not Shown)

$

$

Not available

44

Homelite 08972

GREASE DECAL

$

$

Currently unavailable
