111 DP22 (UT-01590) - Homelite Pump Gear Box Parts Diagram

Pump

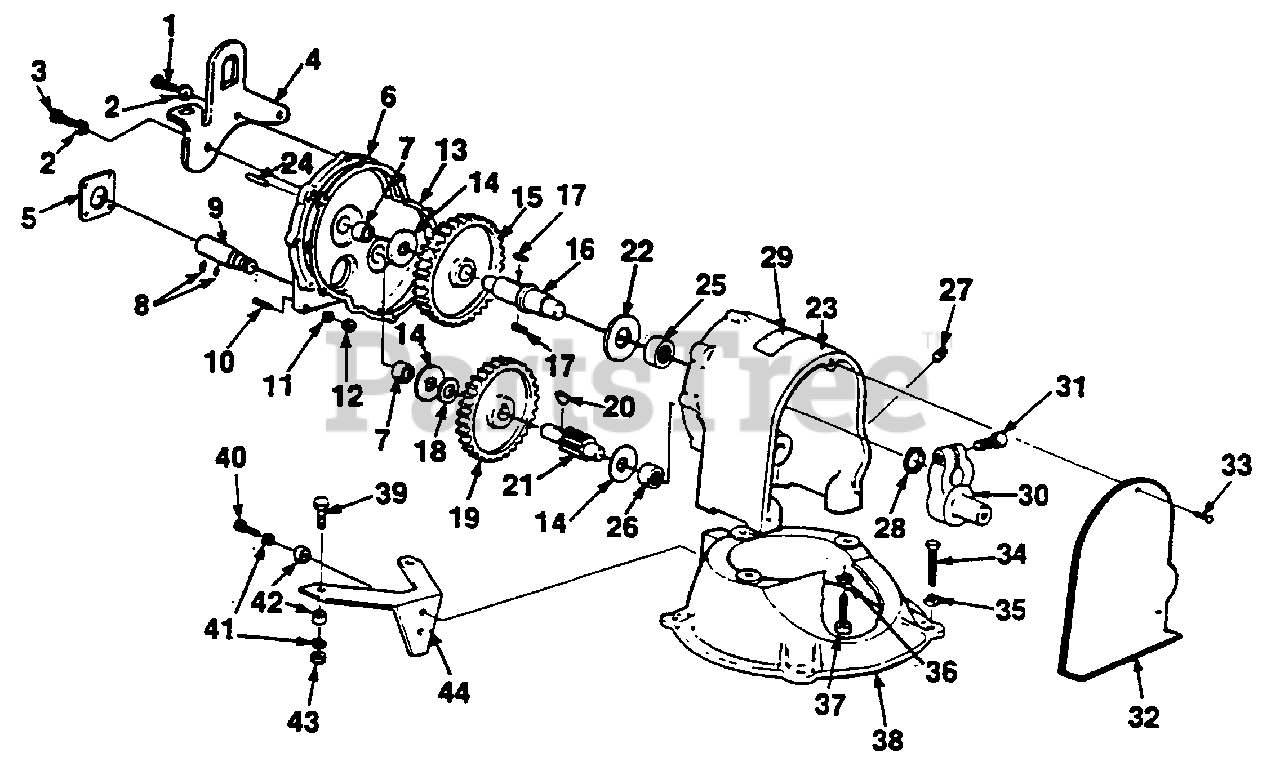

Gear Box Parts Diagram

  • Title

ENGINE-Robin

Note: (RDP2) (Not Shown)

$

$

Not available

ENGINE-Briggs & Stratton

Note: (111DP2-1) (Not Shown)

$

$

Not available

1

Homelite 80882

SCREW-Hex hd. (1/4-20 x 1 1/2")

$

$

Not available

2

Homelite 83009

WASHER-Lock (1/4")

$9.99

$

Usually ships in 3-7 days

0

3

Homelite 80388

SCREW-Hex hd. (1/4-20 x 1 1/4")

$

$

Not available

4

Homelite 49731

BRACKET-Lift

$

$

Not available

5

Homelite 50666

GASKET-Engine mounting

$

$

Not available

6

Homelite A-50487

COVER-Gear Case w/bearings

Note: Includes Item 7.

$

$

Not available

7

Homelite 50493

BEARING-Needle

$

$

Not available

8

Homelite 805142

SCREW-Set, 10-32 x 3/8 (Nylok)

$

$

Currently unavailable

9

Homelite 50488

SHAFT-Extension
(Superseded to UP07094)

$

$

Not available

10

Homelite 72787

STUD-5/16-24, 5/16-18

$12.99

$

Usually ships in 3-7 days

0

11

Homelite 83030

WASHER-Lock (5/16")

$

$

Not available

12

Homelite 81018

NUT-5/16-18

$

$

Not available

13

Homelite 50485

GASKET-Gear case

$

$

Not available

14

Homelite 50471

WASHER-Thrust, small

$

$

Not available

15

Homelite 738661A

GEAR-Main
(Superseded to UP07188)

$

$

Not available

16

Homelite A-51220

SHAFT-Drive

$

$

Currently unavailable

17

Homelite 27752

KEY

$

$

Not available

18

Homelite 50496

SPACER

$

$

Not available

19

Homelite 743521

GEAR

$

$

Currently unavailable

20

Homelite 66612

KEY-Woodruff, #61

$

$

Not available

21

Homelite 50474

SHAFT-Pinion

$

$

Not available

22

Homelite 50483

WASHER-Thrust, large

$

$

Not available

23

Homelite A-50492

CASE-Gear w/bearings

Note: Includes Items 24 - 28.

$

$

Not available

24

Homelite 74332

PIN-Dowel

$

$

Not available

25

Homelite 74252S

BEARING-Needle

$

$

Not available

26

Homelite 50493

BEARING-Needle

$

$

Not available

27

Homelite 50949

PLUG-Pipe

$

$

Not available

28

Homelite 74333

SEAL-Garlock

$

$

Not available

29

Homelite 24581

DECAL

$

$

Not available

30

Homelite 738585

CRANK
(Superseded to 738585A)

$

$

Not available

31

Homelite 80423

SCREW-Cap (1/2-13 x 1 1/2")

$

$

Not available

32

Homelite 507311

SHIELD-Crank

$

$

Currently unavailable

33

Homelite 51247

SCREW-Thumb (1/4-20 x 1/2")

$

$

Not available

34

Homelite 80098

SCREW-Hex hd.

$

$

Not available

35

Homelite 83018

WASHER-Lock (3/8")

$

$

Not available

36

Homelite 83020

WASHER-Lock (1/2")

$

$

Not available

37

Homelite 80627

SCREW-Hex hd. (1/2-13 x 1 3/4")

$

$

Not available

38

Homelite 504642

BODY-Pump (upper)

$

$

Not available

39

Homelite 80087

SCREW-Hex hd. (5/16-18 x 1 1/2")

Note: (111DP2-1)

$

$

Not available

40

Homelite 80084

SCREW-Hex hd.
(Superseded to UP07177)

Note: (111DP2-1)

$

$

Not available

41

Homelite 83030

WASHER-Lock (5/16")

Note: (111DP2-1)

$

$

Not available

42

Homelite 84001

WASHER-Flat

Note: (111DP2-1)

$

$

Not available

43

Homelite 81162

NUT-(5/16-18)

Note: (111DP2-1)

$

$

Not available

44

Homelite 504841

SUPPORT-Engine

Note: (111DP2-1)

$

$

Not available

Homelite 48825

WRENCH
(Superseded to UP03586)

Note: (Not Shown)

$

$

Not available

Homelite 54702A

STRAINER
(Superseded to UP08146)

Note: (Not Shown)

$101.99

$

Usually ships in 3-7 days

0

Homelite 55291F

OIL-GEAR
(Superseded to 55291G)

Note: (Not Shown)

$

$

Not available

Homelite 49369

BRACKET-Lite

Note: (RDP2) (Not Shown)

$8.99

$

Usually ships in 3-7 days

0

Homelite 49389

DECAL-Low Oil

Note: (RDP2 (Not Shown)

$8.99

$

Usually ships in 3-7 days

0
