111 DP22 (UT-01590) - Homelite Pump Pump And Dolly Assemblies Parts Diagram

Pump

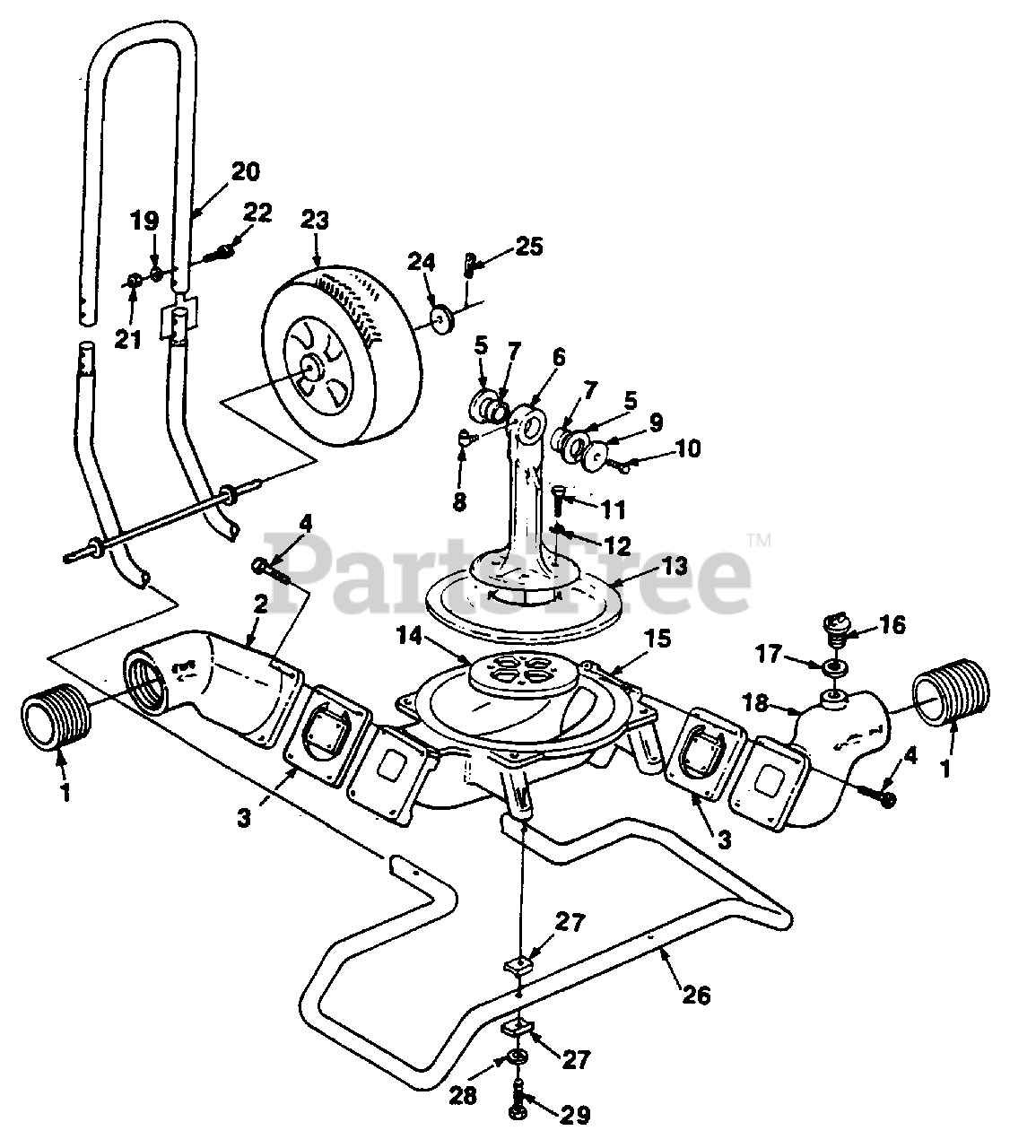

Pump And Dolly Assemblies Parts Diagram

  • Title

1

Homelite 756631

FITTING - Pipe
(Superseded to UP03807)

$

$

Not available

2

Homelite 504662

FITTING - Discharge

$

$

Currently unavailable

3

Homelite A-42147

VALVE AND INSERT

$

$

Not available

Homelite 42148

SPACER

Note: (Not Shown)

$

$

Not available

4

Homelite 80085

SCREW - Hex hd. (5/16-18 x 1")

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 50483

WASHER - Thrust, large

$

$

Not available

6

Homelite A-51221

ROD - Pump

Note: Includes Items 7 & 8.

$

$

Not available

7

Homelite 74121S

BEARING - Needle

$

$

Not available

8

Homelite 50911

FITTING - Grease
(Superseded to UP07208)

$

$

Not available

Homelite 76982

PIN

Note: (Not Shown)

$

$

Not available

9

Homelite 73857

WASHER

$

$

Not available

10

Homelite 80171

SCREW - Hex hd. (3/8-16 x 3/4")

$

$

Not available

11

Homelite 80374

SCREW - Hex hd. (3/8-16 x 1 1/8")

$

$

Not available

12

Homelite 83018

WASHER - Lock (3/8")

$

$

Not available

13

Homelite 50473

DIAPHRAGM
(Superseded to UP06374)

$

$

Not available

14

Homelite 504791

CAP - Diaphragm

$

$

Not available

15

Homelite A-51223

BODY - Pump (lower)

$

$

Currently unavailable

Homelite 548901

PIN

Note: (Not Shown)

$

$

Not available

16

Homelite A-43896

PLUG - Filler

Note: Includes Item 17.

$

$

Currently unavailable

17

Homelite 59910

GASKET

$

$

Not available

18

Homelite A-51222

FITTING - Suction

$

$

Currently unavailable

Homelite 548901

PIN

Note: (Not shown)

$

$

Not available

19

Homelite 83009

WASHER - Lock (1/4")

$4.99

$

Usually ships in 3-7 days

0

20

Homelite 497321

HANDLE - Pump

$

$

Currently unavailable

21

Homelite 81053

NUT (1/4-20")

$

$

Not available

22

Homelite 80882

SCREW - Hex hd. (1/4-20 x 1 1/2")

$

$

Not available

23

Homelite 49454

WHEEL

$

$

Not available

24

Homelite 841141

WASHER - Flat

$

$

Not available

25

Homelite 86303

PIN - Cotter (3/32 x 1 1/8")

$

$

Not available

26

Homelite A497261

PUMP SUPPORT 2"

$

$

Not available

27

Homelite 497842

SADDLE - 1" Pipe
(Superseded to 497841)

$

$

Not available

28

Homelite 83030

WASHER - Lock (5/16")

$

$

Not available

29

Homelite 80197

SCREW - Hex hd. (5/16-1 8 x 2")

$

$

Not available
