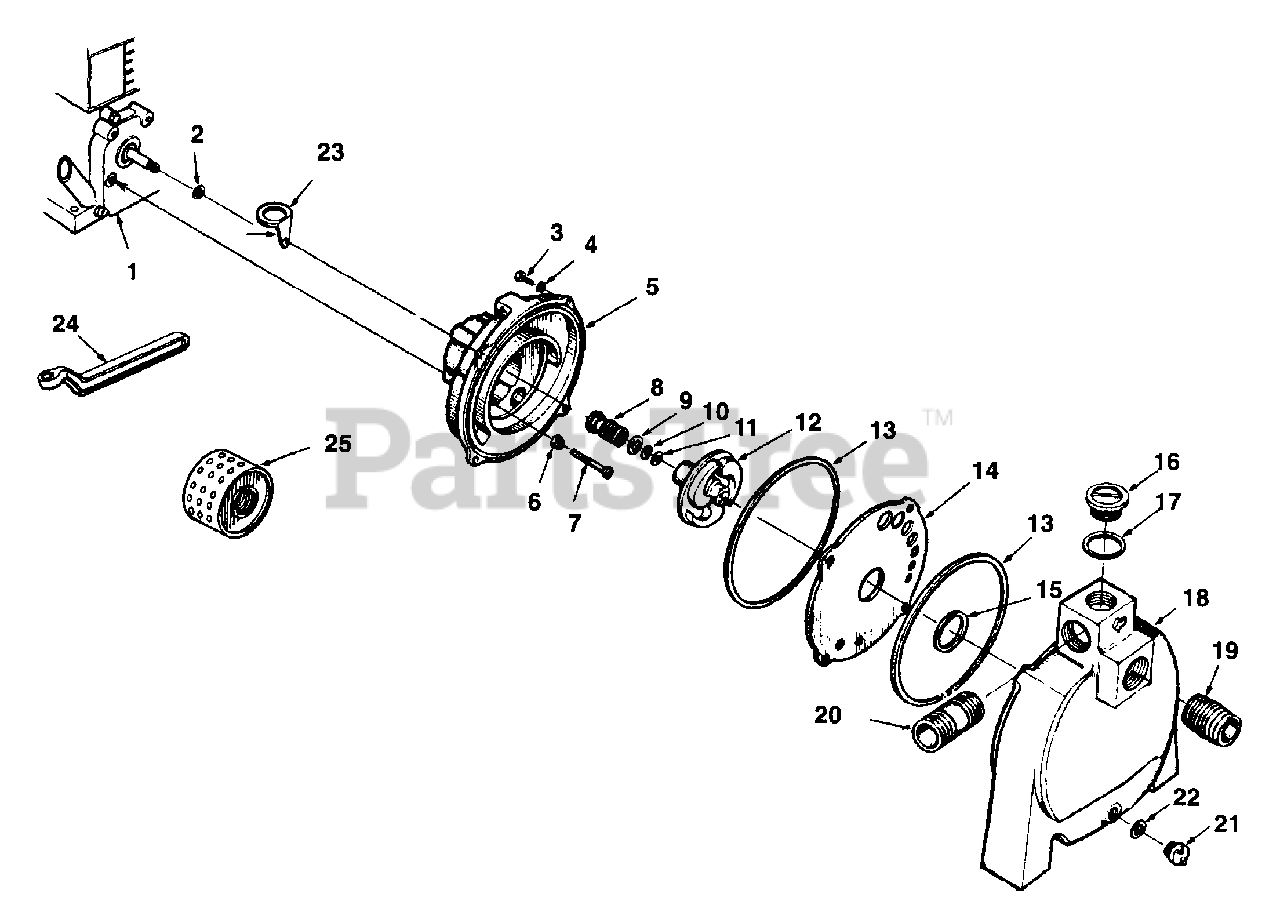

111 S2C (UT-01532-C) - Homelite Self-Priming Centrifugal Pump Pump Parts Diagram

Self-Priming Centrifugal Pump

Pump Parts Diagram

  • Title

1

3.5 HP I/P ENGINE

$

$

Not available

2

Homelite 76885A

SLINGER
(Superseded to UP06453)

$

$

Not available

3

Homelite 80088

HEX HD SCREW (5/16-18 X 1.25)

Note: Torque Specs. 130-145 In/Lbs, 14.7-16.4 Nm

$

$

Not available

4

Homelite 83002

LOCK WASHER (5/16)
(Superseded to 653671)

$2.99

$

Usually ships in 3-7 days

0

5

Homelite 629872A

IMPELLER HOUSING
(Superseded to UP06847)

$

$

Not available

6

Homelite 62874

SEALING WASHER
(Superseded to UP06437)

$2.99

$

Usually ships in 3-7 days

0

7

Homelite 80927

HEX HD SCREW (5/16-24 X 2.25)

Note: Torque Specs. 130-145 In/Lbs, 14.7-16.4 Nm

$

$

Not available

8

Homelite 628612

SEAL ASSEMBLY

$

$

Not available

9

Homelite 62882A

SEAL SHIM .010"
(Superseded to UP07026)

Note: As Required

$8.99

$

Usually ships in 3-7 days

0

Homelite 62883A

SEAL SHIM .015"
(Superseded to UP06439)

Note: As Required

$

$

Not available

10

Homelite 84056

FLAT WASHER (5/16)
(Superseded to UP06541)

$3.49

$

Usually ships in 3-7 days

0

11

Homelite 62872

IMPELLER SHIM .010"

Note: As Required

$2.99

$

Usually ships in 3-7 days

0

Homelite 62873

IMPELLER SHIM .015"

Note: As Required

$

$

Not available

12

Homelite 629883

IMPELLER
(Superseded to 629882)

$

$

Not available

13

Homelite 54070A

O-RING
(Superseded to UP06418)

$

$

Not available

14

Homelite 540661A

WEAR PLATE
(Superseded to UP06416)

$

$

Not available

15

Homelite 54069

SMALL GASKET
(Superseded to UP06417)

$7.99

$

Usually ships in 3-7 days

0

16

Homelite A43971

FILLER PLUG

$

$

Not available

17

Homelite 18108

FILLER PLUG GASKET

$

$

Not available

18

Homelite A09131

END HOUSING

$

$

Currently unavailable

19

Homelite 756631

SUCTION NIPPLE 2" NPT X 2" LONG
(Superseded to UP03807)

$

$

Not available

20

Homelite 541511

DISCHARGE NIPPLE 2" NPT X 3 1/2" LONG

$

$

Not available

Homelite 08970

DECAL, FILL PUMP

$

$

Not available

Homelite 08971

DECAL, WARNING

$

$

Currently unavailable

21

Homelite A43896

DRAIN PLUG
(Superseded to UP07092)

$

$

Currently unavailable

22

Homelite 59910

GASKET

$

$

Not available

23

Homelite 624501

WRENCH HOLDER

$

$

Not available

24

Homelite 19189B

SPANNER WRENCH
(Superseded to UP03586)

$

$

Not available

25

Homelite 30128

2" SUCTION STRAINER
(Superseded to UP06390)

$

$

Not available
