1110 (0350040U) - Cub Cadet Lawn Tractor Engine Flywheel, Ring Gear, Blower Housing & Screens Parts Diagram

Lawn Tractor

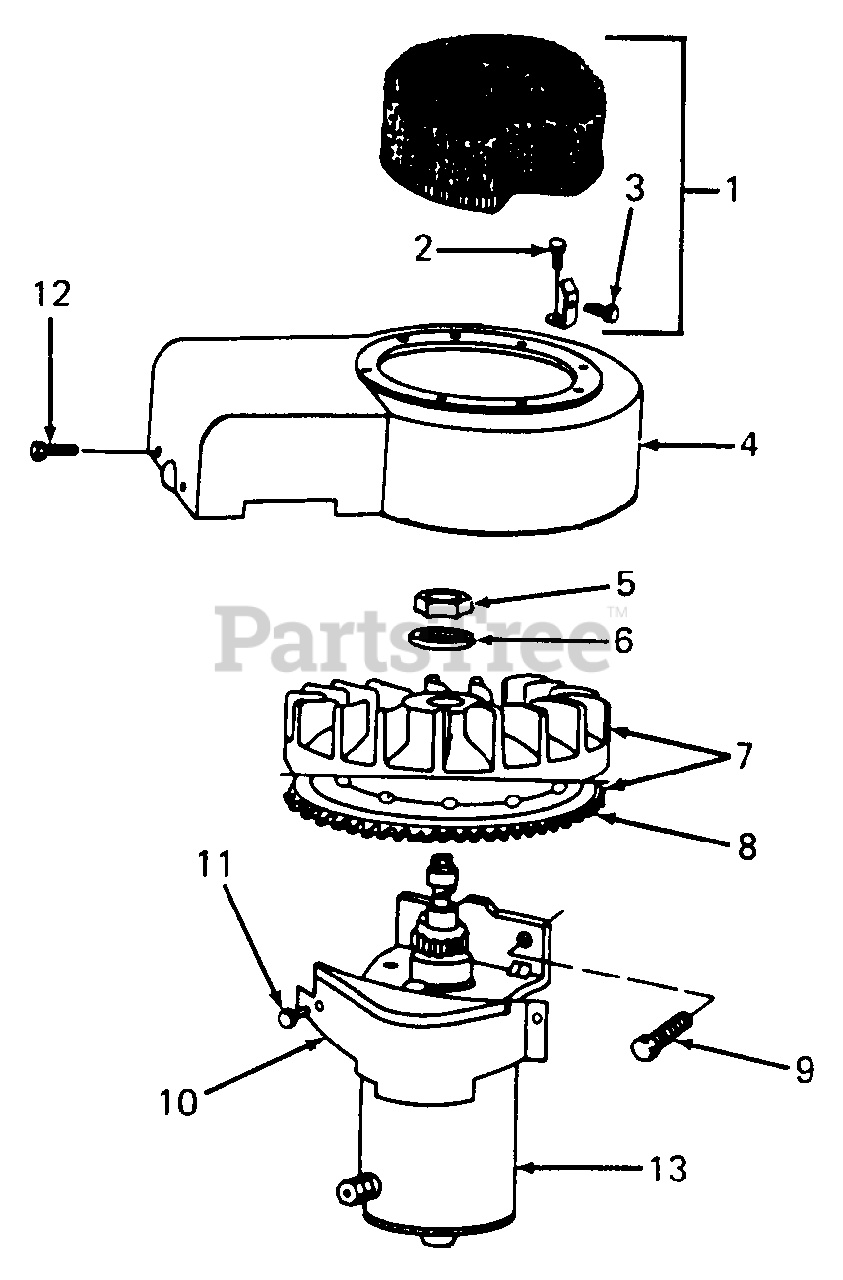

Engine Flywheel, Ring Gear, Blower Housing & Screens Parts Diagram

  • Title

1

Cub Cadet BS-398857

Guard, Debris

$

$

Not available

Cub Cadet BS-223379

Bracket, Guard Mounting

$

$

Currently unavailable

2

Cub Cadet BS-94018

Screw, Hex Washer Hd
(Superseded to BS-690859)

$4.49

$

In Stock, Qty 8

0

3

Cub Cadet BS-93067

Screw, Hex Head Sem

$

$

Currently unavailable

4

Cub Cadet BS-393997

Housing, Blower

$

$

Currently unavailable

5

Cub Cadet BS-92284

Nut, Hex
(Superseded to 712-3056)

$5.49

$

In Stock, Qty 8

0

6

Cub Cadet BS-220865

Washer, Spring

$

$

Currently unavailable

7

Cub Cadet BS-391988

Flywheel & Ring Gear Assy, Magneto

Note: (For Units w/ S/N 107,999 & Below)

$

$

Not available

Cub Cadet BS-392366

Flywheel & Ring Gear Assy, Magneto

Note: (For Units w/ S/N 108,000 & Above)

$

$

Not available

8

Cub Cadet BS-392134

Gear Ring for Tri-Circuit System
(Superseded to BS-696537)

Note: (Includes Mounting Hardware)

$55.99

$

In Stock, Qty 16

0

Cub Cadet BS-399676

Gear Ring for Regulated System
(Superseded to BS-696537)

Note: (Includes Mounting Hardware)

$55.99

$

In Stock, Qty 16

0

9

Cub Cadet BS-93535

Screw Sem

$

$

Not available

10

Cub Cadet BS-395405

Cover, Starter

Note: (Includes Ref No. 11)

$

$

Not available

11

Cub Cadet BS-93984

Screw Sem

$

$

Currently unavailable

12

Cub Cadet BS-93158

Screw, Blower Housing Mounting Sem

$

$

Not available

13

Starter Motor

Note: (See Starter Motor Group)

$

$

Not available
