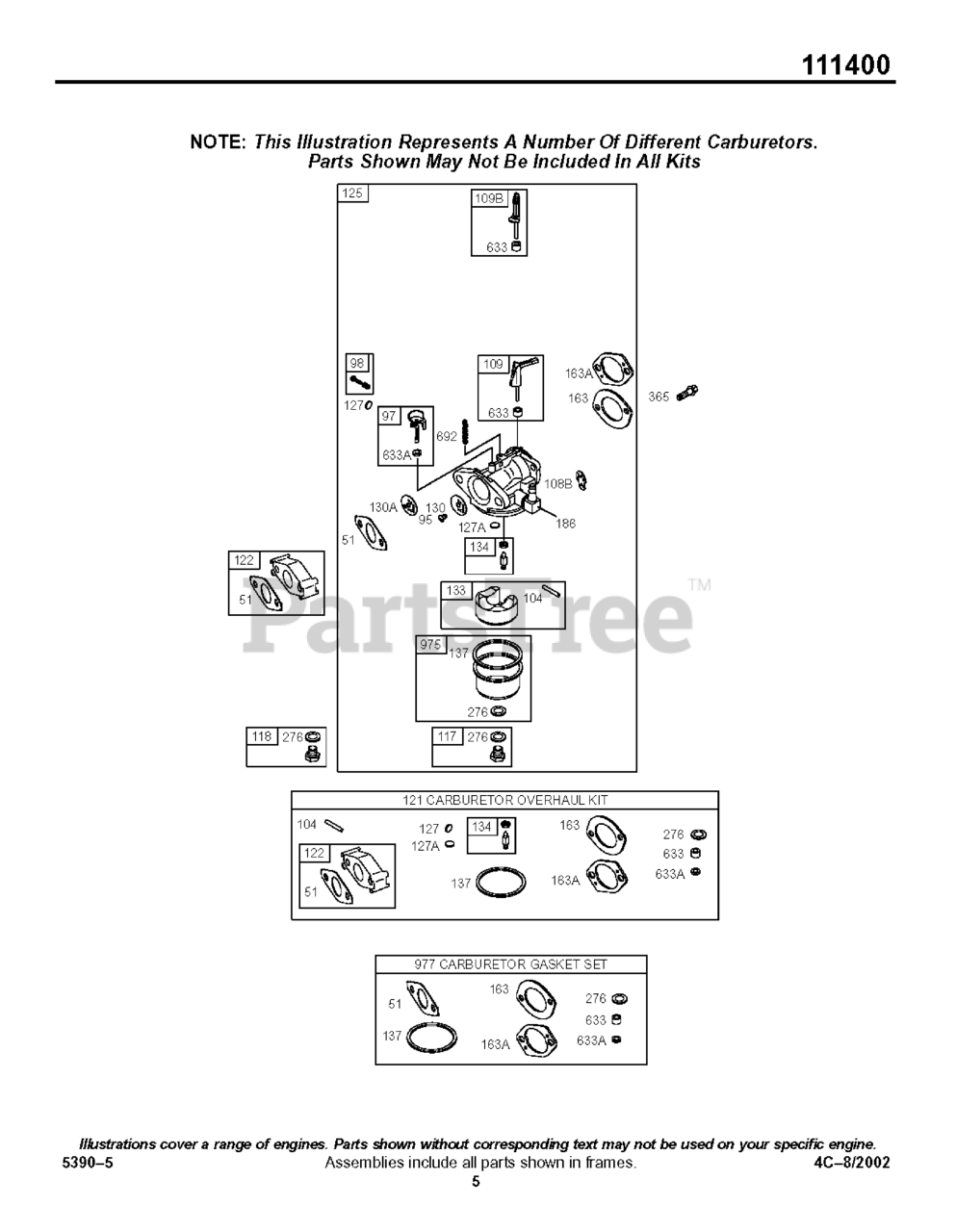

111432-0129-E1 - Briggs & Stratton Horizontal Engine Carburetor Group Parts Diagram

Horizontal Engine

Carburetor Group Parts Diagram

  • Title

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

97

Briggs & Stratton 690024

Shaft-Throttle

$27.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Kit-Idle Speed

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Float Hinge
(Superseded to 797622)

$3.99

$

In Stock, only 1 left!

0

108B

Briggs & Stratton 692567

Valve-Choke

$9.49

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 690023

Shaft-Choke

$28.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 498976

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 695042

Jet-Main

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 498977

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 694975

Jet-Main

Note: (High Altitude)

$19.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 695157

Kit-Carburetor Overhaul

$18.99

$

In Stock, Qty 10

0

125

Briggs & Stratton 693865

Carburetor
(Superseded to 798653)

$66.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 694857

Carburetor

$80.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 694468

Plug-Welch

Note: (3/8" Diameter)

$4.49

$

In Stock, Qty 7

0

127

Briggs & Stratton 691739

Plug-Welch

Note: (5/16" Diameter)

$4.49

$

In Stock, only 3 left!

0

130

Briggs & Stratton 691181

Valve-Throttle

$7.49

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, Qty 8

0

134

Briggs & Stratton 398188

Kit-Needle/Seat

$6.49

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Float Bowl

$3.99

$

In Stock, Qty 20+

0

186

Briggs & Stratton 692317

Connector-Hose

$6.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: (Main Jet)

$6.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 692568

Screw

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Choke/Throttle Shaft

Note: (Throttle)

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Choke/Throttle Shaft

Note: (Choke)

$4.99

$

In Stock, only 3 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

$6.49

$

In Stock, Qty 16

0

977

Briggs & Stratton 695156

Gasket Set-Carburetor
(Superseded to 695157)

$18.99

$

In Stock, Qty 10
