111782-0175-01 - Briggs & Stratton Vertical Engine Carburetor Assy,Air Cleaner Parts Diagram

Vertical Engine

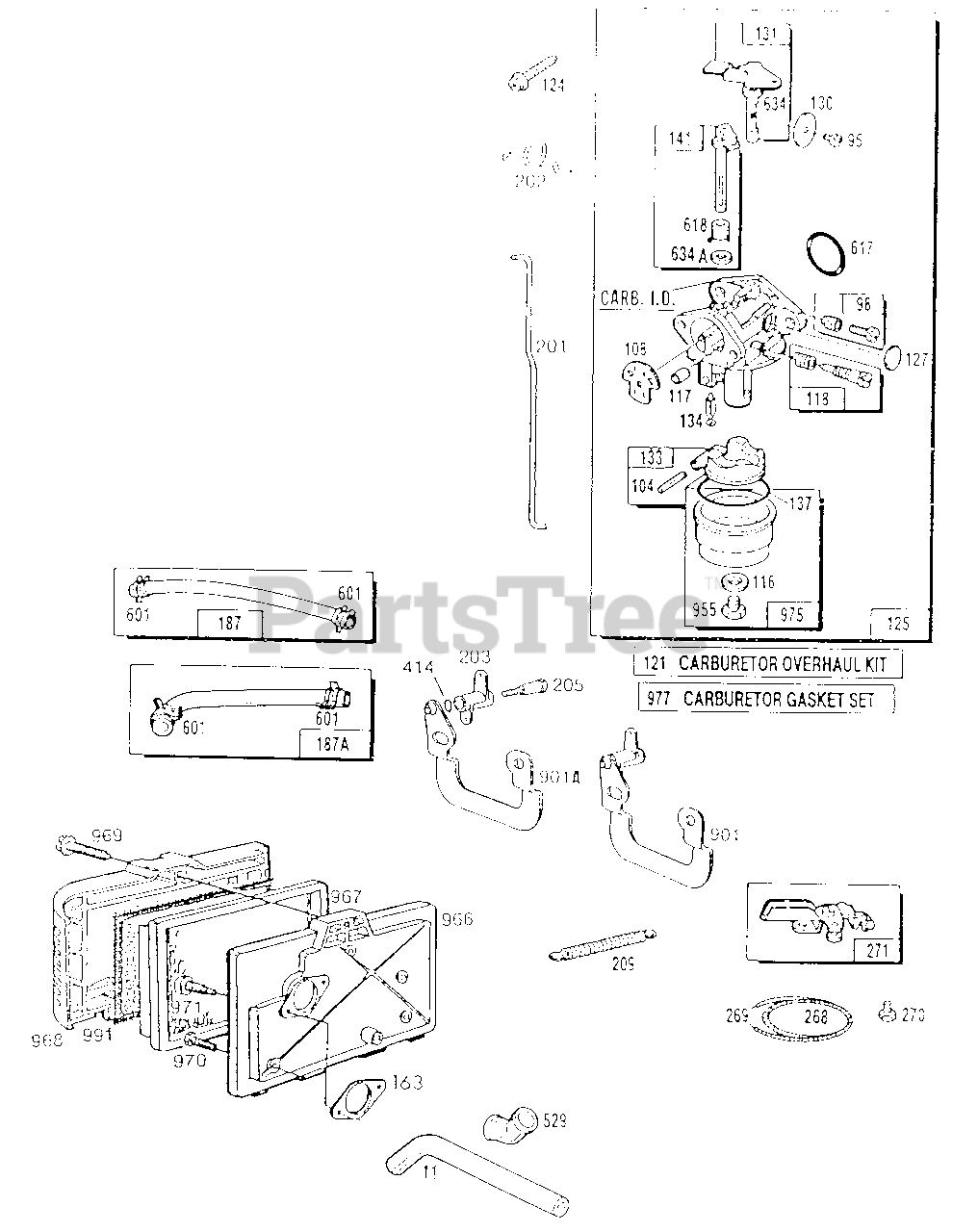

Carburetor Assy,Air Cleaner Parts Diagram

  • Title

11

Briggs & Stratton 231392

Tube-Breather

$9.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 398185

Screw-Idle Speed (Lmt 26, 27, 28, 31)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Pin-Float Hinge Series
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit-See Ref 121

$3.99

$

In Stock, Qty 5

0

108

Briggs & Stratton 223471

Valve, Choke Sold In Kit Only
(Superseded to 691182)

$9.49

$

Usually ships in 2-12 days

0

116

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Gasket Set-Part No. 398183

$

$

Not available

117

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121

$

$

Not available

118

Briggs & Stratton 398157

Valve-Needle (For Lms-1,2)

Note: See Carburetor Illustration For Location of LMS I.D. Number

$12.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 398670

Valve/Spring Kit (For Lms-3,4,5,7,10)
(Superseded to 493765)

Note: Included in Carburetor Overhaul Kit-See Ref 121

$14.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 492945

Screw/Spring Kit (For Lms 11,12,m26)
(Superseded to 493765)

Note: Included in Carburetor Overhaul Kit-See Ref 121

$14.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 398158

Carburetor Overhaul (For Lms-1,2)
(Superseded to 494349)

$20.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 398669

Carburetor Kit (For Lms-3,4)
(Superseded to 494349)

$20.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 490931

Carburetor Kit (For Lms-5,7,10)
(Superseded to 494349)

Note: See Carburetor Illustration For Location of LMS I.D. Number

$20.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 492495

Carburetor Overhaul (For Lms-11,12,13,14,15,m26)
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

124

Briggs & Stratton 94525

Screw, Hex Washer H
(Superseded to 691688)

$4.49

$

In Stock, Qty 5

0

125

Briggs & Stratton 398668

Carburetor Assembly (Fixed Jet) (For Lms-12)
(Superseded to 492544)

$89.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 492544

Carburetor (Fixed Jet For Lms 2,4,7,12)

$89.99

$

Usually ships in 2-12 days

0

127

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121

$

$

Not available

130

Briggs & Stratton 223470

Valve-Throttle
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 398673

Shaft And Lever-Throttle

$10.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

$9.99

$

In Stock, only 3 left!

0

134

Briggs & Stratton 398188

Kit-Needle/seat (Pump Feed)

Note: Included in Carburetor Overhaul Kit-See Ref 121

$6.49

$

In Stock, Qty 20+

0

137

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Gasket Set-Part No. 398183

$

$

Not available

141

Briggs & Stratton 398186

Shaft-Choke

$10.99

$

In Stock, only 1 left!

0

163

Briggs & Stratton 271840

Gasket-Air Cleaner Mounting
(Superseded to 272296)

$4.99

$

In Stock, Qty 5

0

187A

Briggs & Stratton 398396

Hose-Fuel (Molded)

$7.99

$

Usually ships in 2-12 days

0

201

Briggs & Stratton 262066

Link-Governor

$7.49

$

Usually ships in 2-12 days

0

202

Briggs & Stratton 262065

Link-Throttle

$5.49

$

Usually ships in 2-12 days

0

203

Briggs & Stratton 280533

Crank-Bell

Note: Used Before Code Date 87020900

$1.49

$

Usually ships in 2-12 days

0

205

Briggs & Stratton 93838

Screw, Shoulder Hex (#6-32 Thread)
(Superseded to 691630)

Note: Used Before Code Date 87020900

$10.99

$

In Stock, only 2 left!

0

209

Briggs & Stratton 262075

Spring-Governor

$6.49

$

Usually ships in 2-12 days

0

268

Briggs & Stratton 66986

Casing, Wire (48" Cut To Required Length)
(Superseded to 691025)

Note: If longer casing is needed, specify length in inches; if a shorter casing is needed, Order No. 66986 and cut to required length.

$

$

Not available

269

Briggs & Stratton 26099

Wire, Control (54" Cut To Required Length)
(Superseded to 691026)

Note: If longer wire is needed, specify length in inches; if shorter wire is needed, Order No. 26099 and cut to required length.

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer, Steel Zinc
(Superseded to 691721)

Note: Used Before Code Date 87020900

$7.49

$

In Stock, only 1 left!

0

529

Briggs & Stratton 280524

Grommet-Breather

$8.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 270344

Seal-Intake Tube
(Superseded to 270344S)

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Gasket Set-Part No. 398183

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262035

Spring-Choke Return

$6.49

$

Usually ships in 2-12 days

0

634

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Gasket Set-Part No. 398183

$

$

Not available

634A

No Nomenclature

Note: Included in Carburetor Overhaul Kit-See Ref 121. Included in Carburetor Gasket Set-Part No. 398183

$

$

Not available

901A

Briggs & Stratton 223530

Bracket-Bell Crank
(Superseded to 398368)

Note: Used Before Code Date 87020900

$7.99

$

In Stock, only 1 left!

0

901

Briggs & Stratton 398368

Bracket-Bell Crank

$7.99

$

In Stock, only 1 left!

0

955

Briggs & Stratton 231373

Screw-Hex. Hd.

$5.99

$

Usually ships in 2-12 days

0

966

Briggs & Stratton 399059

Base-Air Cleaner
(Superseded to 399038)

$

$

Not available

967

Briggs & Stratton 397795

Filter-Air Cleaner
(Superseded to 397795S)

$13.99

$

In Stock, only 2 left!

0

968

Briggs & Stratton 280501

Cover-Air Cleaner

$23.99

$

Usually ships in 2-12 days

0

969

Briggs & Stratton 94173

Screw-Cover Mtg.
(Superseded to 690670)

$5.99

$

In Stock, Qty 7

0

970

Briggs & Stratton 94118

Screw, Tapping Hex
(Superseded to 691637)

$3.99

$

Usually ships in 2-12 days

0

971

Briggs & Stratton 94121

Screw, Machine Hex
(Superseded to 692523)

$7.49

$

In Stock, Qty 11

0

975

Briggs & Stratton 398191

Bowl-Float
(Superseded to 796611)

$6.49

$

In Stock, Qty 19

0

977

Briggs & Stratton 490937

Gasket, Carburetor (For Lms 11)
(Superseded to 498260)

$16.99

$

In Stock, Qty 20+

0

991

Briggs & Stratton 399039

Prefilter

$9.99

$

In Stock, only 2 left!

0
