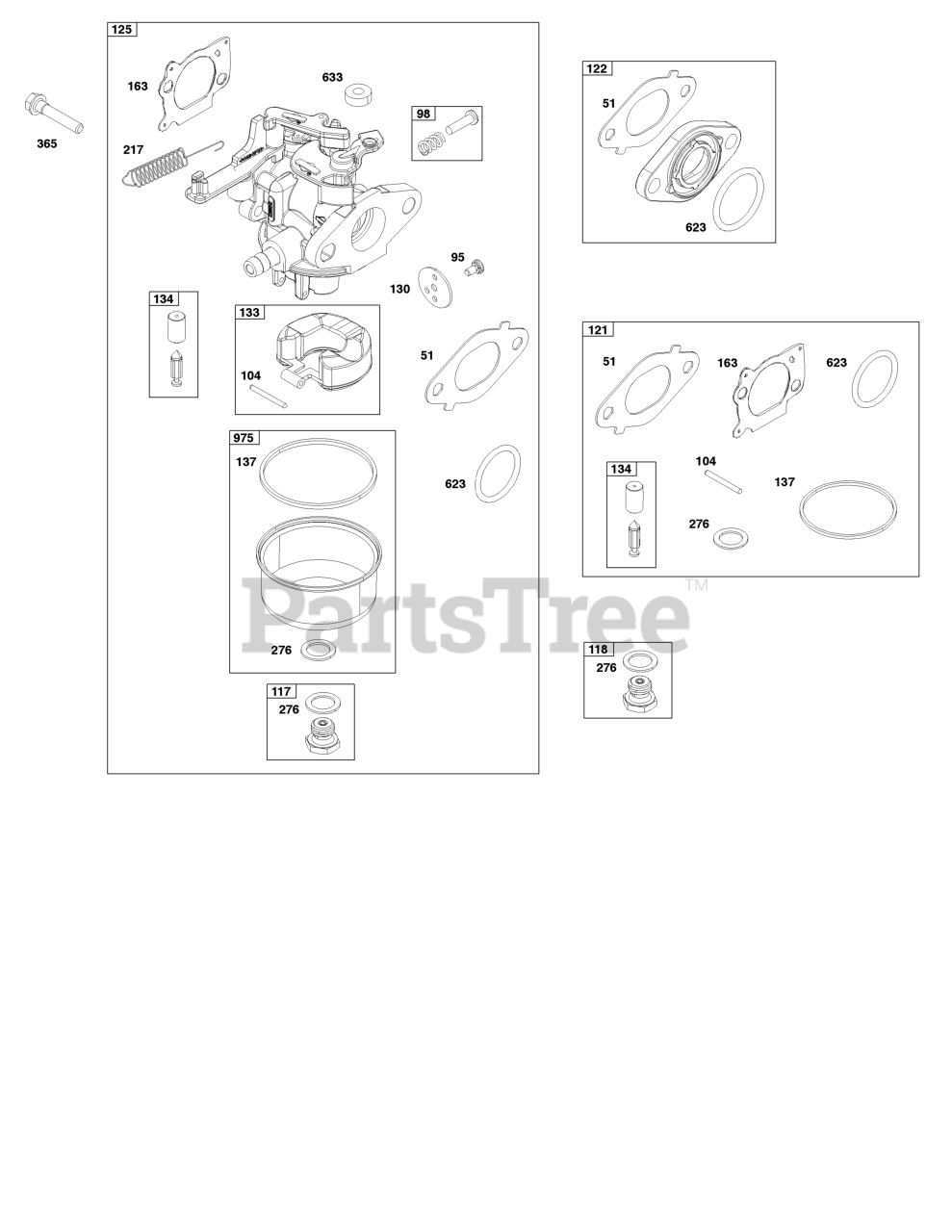

111P02-0019-F1 - Briggs & Stratton Vertical Engine Carburetor Group Parts Diagram

Vertical Engine

Carburetor Group Parts Diagram

  • Title

51

Briggs & Stratton 796596

Gasket-Intake

$4.49

$

In Stock, only 3 left!

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 797156

Kit-Idle Speed

$12.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 797622

Pin-Float Hinge

$3.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 798661

Jet-Main

Note: (Standard)

$19.99

$

In Stock, only 3 left!

0

118

Briggs & Stratton 798660

Jet-Main

Note: (High Altitude)

$19.99

$

In Stock, Qty 5

0

121

Briggs & Stratton 592172

Kit-Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$32.99

$

In Stock, only 1 left!

0

122

Briggs & Stratton 796595

Spacer-Carburetor

$10.99

$

In Stock, Qty 6

0

125

Briggs & Stratton 591137

Carburetor

$67.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 597437

Plate, Throttle

$3.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 797626

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

134

Briggs & Stratton 799177

Kit-Needle/Seat

$11.99

$

In Stock, Qty 14

0

137

Briggs & Stratton 797625

Gasket-Float Bowl

$7.99

$

In Stock, Qty 17

0

163

SEAL, O-Ring

Note: (Part information located in Air Cleaner Group.)

$

$

Not available

217

Briggs & Stratton 799179

Spring-Choke Return

$7.49

$

In Stock, Qty 7

0

276

Briggs & Stratton 797632

Washer-Sealing

$7.99

$

In Stock, Qty 20+

0

365

Briggs & Stratton 793458

Screw

Note: (Carburetor/Throttle Body)

$3.99

$

In Stock, only 2 left!

0

623

Briggs & Stratton 793628

Seal-O Ring

Note: (Carburetor Spacer)

$4.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 797629

SEAL, Choke/Throttle Shaft

$4.49

$

In Stock, only 1 left!

0

975

Briggs & Stratton 797631

Bowl-Float

$43.99

$

In Stock, only 4 left!

0
