112-5024 - Toro Spindle Kit for Z Master Mowers with 72" Cutting Unit SPINDLE ASSEMBLY NO. 112-5024 Parts Diagram

Spindle Kit for Z Master Mowers with 72" Cutting Unit

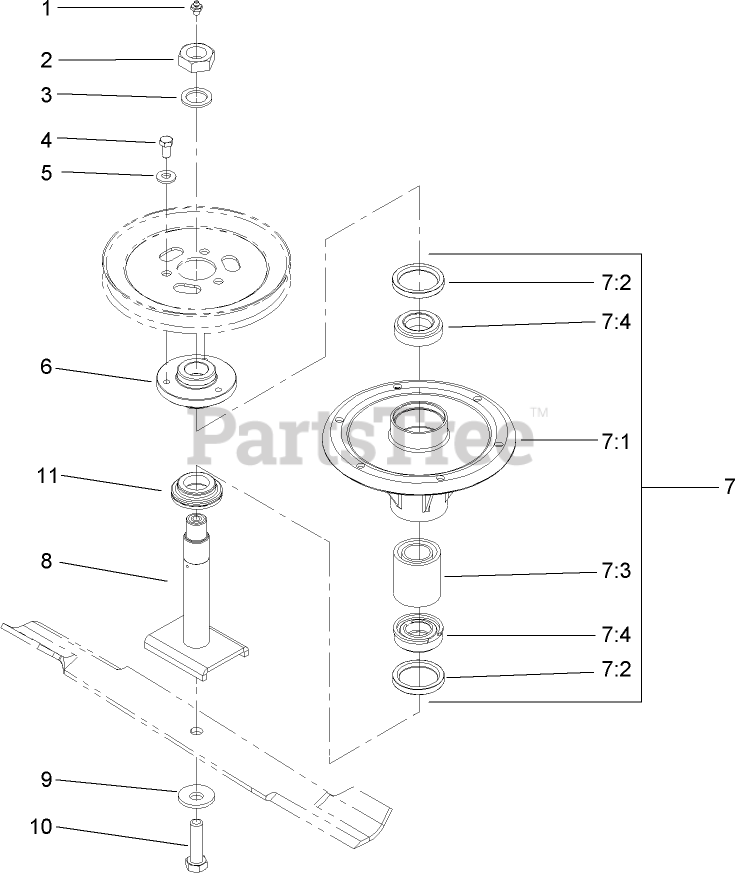

SPINDLE ASSEMBLY NO. 112-5024 Parts Diagram

  • Title

1

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 17

0

2

Toro 3296-49

NUT-LOCK, NI

$15.99

$

In Stock, only 2 left!

0

3

Toro 3-8514

WASHER-THRUST

$3.49

$

In Stock, Qty 17

0

4

Toro 323-4

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

5

Toro 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

6

Toro 112-5026

SPLINE-HUB, FLANGE
(Superseded to 114-1161)

$

$

Not available

7

Toro 104-4603

SPINDLE ASM

$

$

Not available

7:1

Toro 69-1530

HOUSING-SPINDLE

$256.99

$

Usually ships in 3-6 days

0

7:2

Toro 253-154

SEAL-OIL

$6.49

$

In Stock, Qty 10

0

7:3

Toro 69-8380

SPACER-BEARING
(Superseded to 71-2530)

$192.99

$

Usually ships in 3-6 days

0

7:4

Toro 26-1830

BEARING KIT (MATCHED SET)
(Superseded to 110-8297)

$59.99

$

In Stock, only 1 left!

0

8

Toro 110-3285

SPINDLE SHAFT ASM

$

$

Not available

9

Toro 103-0865

Washer-Blade Bolt, Heavy

$6.49

$

In Stock, Qty 20+

0

10

Toro 51-4060

SCREW-BLADE

$8.49

$

In Stock, Qty 20+

0

11

Toro 69-6950

SPACER-SHAFT, SPINDLE

$24.99

$

Usually ships in 3-6 days

0
