112 - Poulan Pro String Trimmer Handle & Shaft Assy. Parts Diagram

String Trimmer

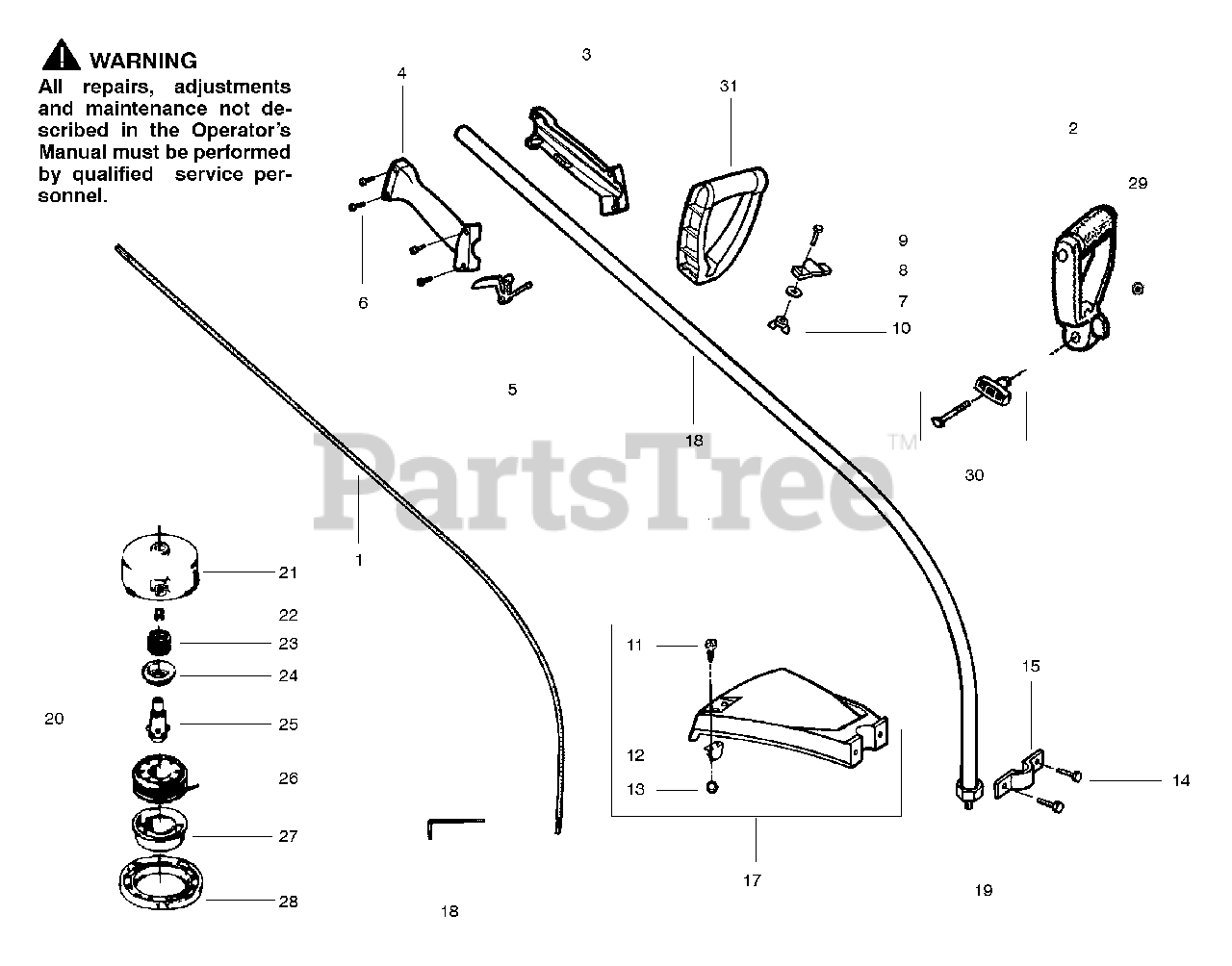

Handle & Shaft Assy. Parts Diagram

  • Title

1

Poulan 530095176

Drive Shaft

$

$

Not available

2

Poulan 530010957

Handle

$

$

Not available

3

Poulan 530036514

Throttle Hsg. (Left)

$3.99

$

Usually ships in 3-10 days

0

4

Poulan 530036515

Throttle Hsg. (Right)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530036556

Throttle Lever

$3.99

$

In Stock, only 2 left!

0

6

Poulan 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

7

Poulan 530092062

Washer

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530094742

Clamp

$4.99

$

Usually ships in 3-10 days

0

9

Poulan 530015820

Bolt

$6.49

$

Usually ships in 3-10 days

0

10

Poulan 530091373

Nut

$4.99

$

In Stock, only 1 left!

0

11

Poulan 530015337

Screw

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530094570

Line Limiter

$3.99

$

In Stock, only 2 left!

0

13

Poulan 534235901

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

14

Poulan 530016107

Screw

$3.99

$

In Stock, Qty 11

0

15

Poulan 530093653

Bracket Shield

$3.99

$

In Stock, only 1 left!

0

16

Poulan 530031111

Hex Wrench (5/32)
(Superseded to 530031159)

$4.99

$

In Stock, only 1 left!

0

17

Poulan 530069249

Shield Kit Ass'y.

Note: (Incl. 11-14)

$

$

Not available

18

Poulan 530014966

Drive Shaft Hsg.
(Superseded to 530071371)

$

$

Not available

19

Poulan 530094543

Dust Cup

$

$

Not available

20

Poulan 952701574

Cutting Head Ass'y.
(Superseded to 952711547)

Note: (Incl. 21-28)

$

$

Not available

21

Poulan 530093896

Hub Ass'y.
(Superseded to 530071295)

$21.99

$

In Stock, only 1 left!

0

22

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

23

Poulan 530340007

Spring

$3.99

$

Usually ships in 3-10 days

0

24

Poulan 530092068

Spring Cap
(Superseded to 530328929)

$

$

Not available

25

Poulan 530093897

Drive Gear

$9.99

$

Usually ships in 3-10 days

0

26

Poulan 952701523

Spool w/Line

$

$

Not available

27

Poulan 530401183

Release Button

$

$

Not available

28

Poulan 530092133

Cover

$

$

Not available

29

Poulan 530015197

Nut

$6.49

$

In Stock, Qty 5

0

30

Poulan 530069252

"T" Handle Ass'y.
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

31

Poulan 530094673

Handle
(Superseded to 530055699)

$11.99

$

Usually ships in 3-10 days

0

Poulan 530047068

Carton Contents Bag

Note: Not Shown

$

$

Not available

Poulan 530081794

Operator Manual Type 2

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

Poulan 530083186

Operator Manual Type 3

Note: Not Shown

$

$

Not available

Poulan 530047899

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530047450

Instruction Decal

Note: Not Shown

$

$

Not available
