112 - Poulan String Trimmer (2006-05) Carburetor Parts Diagram

String Trimmer

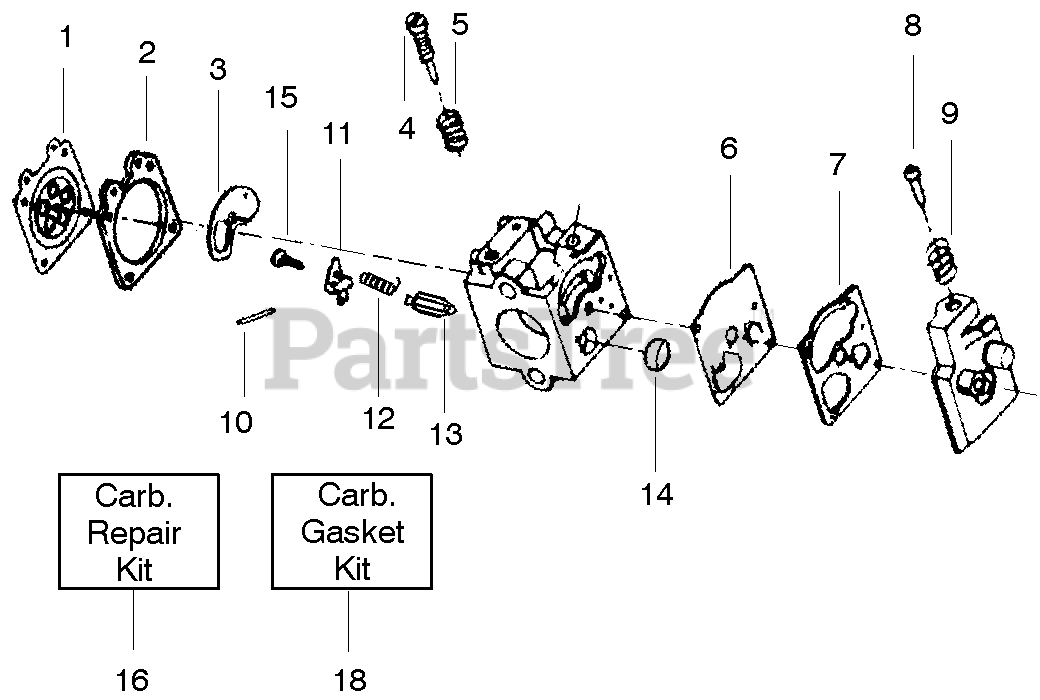

Carburetor Parts Diagram

  • Title

1

Electrolux/AYP 530035014

Metering Diaphram
(Superseded to 503896701)

$8.99

$

In Stock, only 2 left!

0

2

Electrolux/AYP 530035011

Metering Diaphragm Gasket

$

$

Not available

3

Electrolux/AYP 530035211

Circuit Plate Gasket

$

$

Not available

4

Electrolux/AYP 530035212

Mixture Needle

$

$

Not available

5

Electrolux/AYP 530035293

Mixture Needle Spring

$4.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$6.49

$

In Stock, Qty 11

0

7

Electrolux/AYP 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$4.99

$

In Stock, Qty 5

0

8

Electrolux/AYP 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 530035121

Idle Speed Spring

$3.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530035028

Metering Lever Pin
(Superseded to 505520125)

$3.49

$

In Stock, only 3 left!

0

11

Electrolux/AYP 530035031

Metering Lever
(Superseded to 505520127)

$

$

Not available

12

Electrolux/AYP 530037330

Metering Lever Spring

$

$

Not available

13

Electrolux/AYP 530035016

Inlet Needle Valve

$3.49

$

In Stock, Qty 6

0

14

Electrolux/AYP 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530035016

Metering Lever Pin Screw

$3.49

$

In Stock, Qty 6

0

16

Electrolux/AYP 530035264

Carb. Kwik Repair Kit

Note: (Refer to Service Reference)

$

$

Not available

17

Electrolux/AYP 530035219

Carb. Gasket/Diaphragm Kit (+Indicates Contents)
(Superseded to 530069844)

$18.99

$

Usually ships in 3-10 days

0
