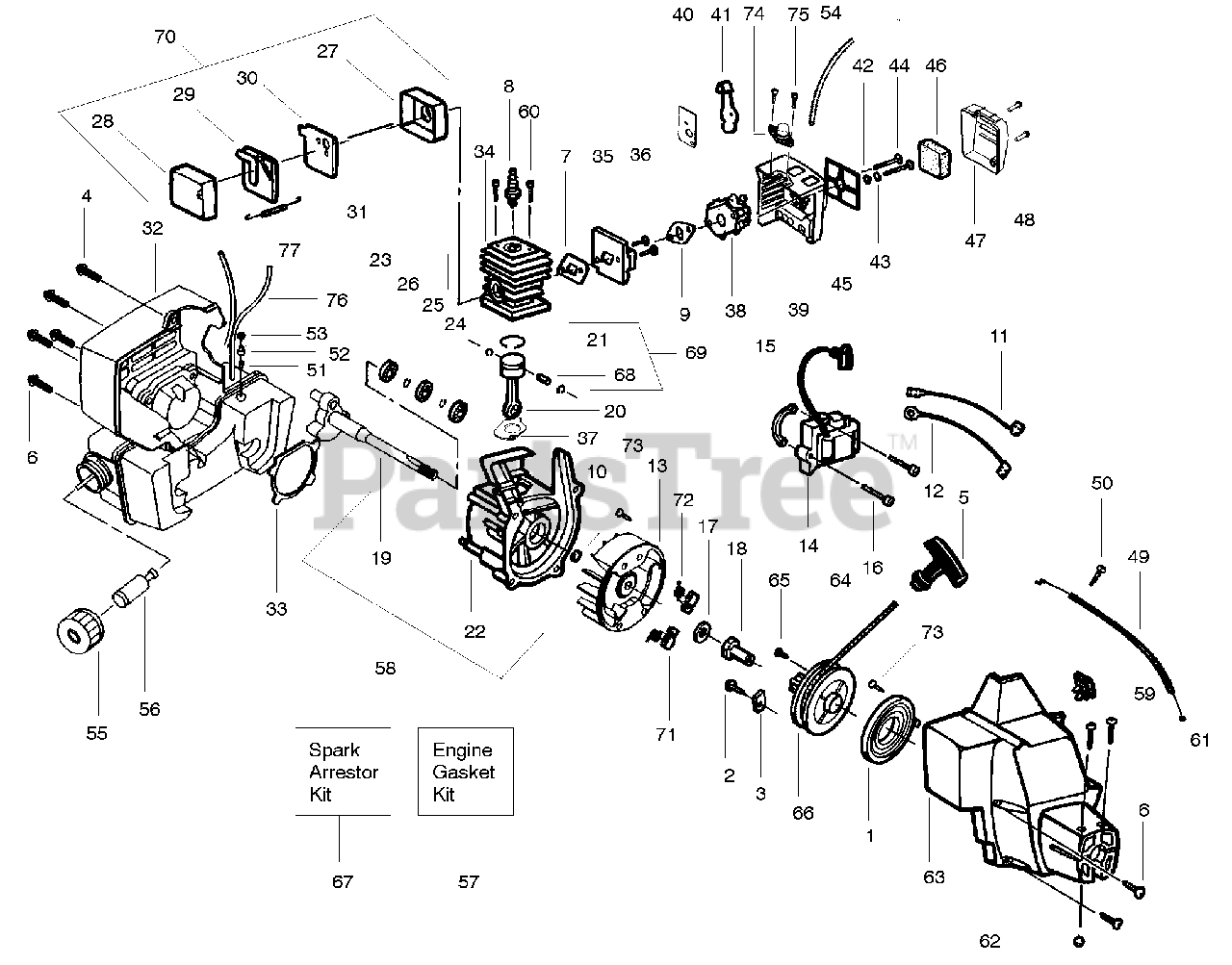

112 - Poulan String Trimmer (2006-05) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title

1

Electrolux/AYP 530029395

Starter Spring
(Superseded to 545008010)

$7.49

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

3

Electrolux/AYP 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

4

Electrolux/AYP 530015934

Screw

$4.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530027569

Starter Handle

$6.49

$

In Stock, only 2 left!

0

6

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$10.99

$

In Stock, Qty 9

0

7

Electrolux/AYP 530019233

Cylinder Gasket

$3.99

$

In Stock, only 2 left!

0

8

Electrolux/AYP 952030078

Spark Plug
(Superseded to 952030201)

$3.49

$

In Stock, Qty 20+

0

9

Electrolux/AYP 530019194

Gasket

$6.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 530015941

Retainer

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530014663

Lead Wire

$9.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530014662

Ground Wire

$7.49

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 530039149

Flywheel Ass'y.
(Superseded to 545221701)

$13.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 530039163

Ignition Module

$53.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530036145

Spacer

$3.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 530015828

Washer

$4.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 530027953

Drive Coupling

$

$

Not available

19

Electrolux/AYP 530014532

Crankshaft Ass'y.

$

$

Not available

20

Electrolux/AYP 530069615

Connecting Rod

$24.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 530036404

Piston Ring

$

$

Not available

22

Electrolux/AYP 530014861

Crankcase Ass'y.

$

$

Not available

23

Electrolux/AYP 530032125

Inner Bearing
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 530032124

Outer Bearing

$7.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530019179

C'case Seal

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530015945

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 530036578

Muffler Body

$4.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 530036577

Muffler Cover

$2.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530038602

Muffler Baffle-Exit

$1.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530036579

Muffler Baffle-First

$2.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530029930

Muffler Spring
(Superseded to 530016197)

$4.99

$

In Stock, Qty 6

0

32

Electrolux/AYP 530014852

Shroud & Tank Assy. Type 1

$

$

Not available

32

Electrolux/AYP 530047091

Shroud & Tank Assy. Type 2 & 3

$

$

Not available

33

Electrolux/AYP 530019181

Gasket

$6.49

$

In Stock, only 4 left!

0

34

Electrolux/AYP 530069564

Cylinder
(Superseded to 530069769)

$

$

Not available

35

Carb. Adaptor Kit-See Service Reference 1

Note: (Refer to Service Reference)

$

$

Not available

36

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

37

Electrolux/AYP 530019223

Gasket

$4.99

$

In Stock, Qty 6

0

38

Electrolux/AYP 530035308

Carburetor Type 1 (WA-215)

$42.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530069647

Carburetor Type 2 & 3 (WA-218)
(Superseded to 530069665)

$63.46

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530037390

Air Box Type 1
(Superseded to 530037971)

$4.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 530037971

Air Box Type 2 & 3

$4.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530037326

Choke Plate

$

$

Not available

41

Electrolux/AYP 530038102

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Electrolux/AYP 530015852

Choke Spacer

$2.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 530015887

Screw

$4.99

$

In Stock, only 2 left!

0

45

Electrolux/AYP 530037413

Filter Plate

$

$

Not available

46

Electrolux/AYP 530037331

Air Filter Foam

$

$

Not available

47

Electrolux/AYP 530037292

Air Filter Cover

$4.99

$

Usually ships in 3-10 days

0

48

Electrolux/AYP 530015966

Screw

$2.49

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530036744

Throttle Cable Ass'y.
(Superseded to 530071548)

$

$

Not available

50

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

51

Electrolux/AYP 530026119

Check Valve

$4.49

$

In Stock, Qty 18

0

52

Electrolux/AYP 530029717

Element

$

$

Not available

53

Electrolux/AYP 530029696

Retainer

$

$

Not available

54

Electrolux/AYP 530069571

Fuel Line-Prim./Carb

$6.49

$

In Stock, Qty 11

0

55

Electrolux/AYP 530014347

Fuel Cap Ass'y.

$8.99

$

In Stock, Qty 5

0

56

Electrolux/AYP 530014362

Fuel Pickup Ass'y.
(Superseded to 530095646)

$4.99

$

In Stock, Qty 20+

0

57

Electrolux/AYP 530069616

Engine Gasket Kit

Note: (Incl. 7,9,33,37)

$9.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 530014729

C'case & C'shaft Assy.

Note: (Incl. 10,19,22-26)

$

$

Not available

59

Electrolux/AYP 530069572

On/Off Switch

$8.99

$

In Stock, only 3 left!

0

60

Electrolux/AYP 530015953

Screw

$6.49

$

In Stock, Qty 8

0

61

Electrolux/AYP 530016072

Screw

$3.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 530015768

Locknut

$6.49

$

In Stock, only 2 left!

0

63

Electrolux/AYP 530014921

Fan Housing

$23.99

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

65

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, Qty 11

0

66

Electrolux/AYP 530069400

Starter Pulley
(Superseded to 530071786)

$7.49

$

In Stock, Qty 12

0

67

Electrolux/AYP 530069380

Spark Arrestor Kit

$6.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 530015162

Piston Pin Retainer

$6.49

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 530069402

Piston Kit
(Superseded to 530069621)

Note: (Incl. 21,68 & Pin)

$36.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 530069660

Muffler Kit

$15.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 530029939

Starter Dog

$

$

Not available

72

Electrolux/AYP 530047570

Starter Spring

$3.99

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 530015882

Screw-Flywheel

$

$

Not available

74

Electrolux/AYP 530038874

Primer Bulb Ass'y. Type 2 & 3

$

$

Not available

75

Electrolux/AYP 530016090

Screw-Primer Type 2 & 3
(Superseded to 530015780)

$6.49

$

In Stock, only 3 left!

0

76

Electrolux/AYP 530069216

Fuel Line-Prim./Tnk.

$6.49

$

In Stock, Qty 20+

0

77

Electrolux/AYP 530069247

Fuel Line-Carb/Tnk.

$6.49

$

In Stock, Qty 20+

0
