112A508R190 - White Outdoor 22" Walk-Behind Mower (1992)

22" Walk-Behind Mower

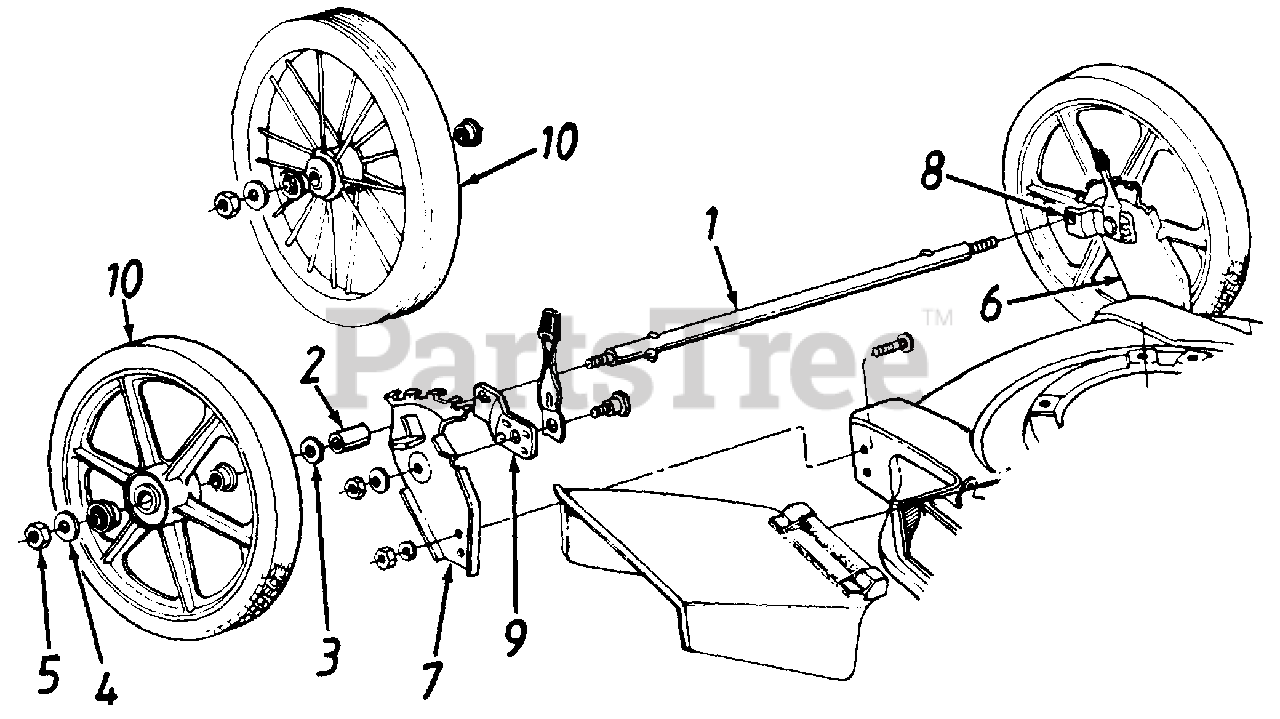

112A508R190 - White Outdoor 22" Walk-Behind Mower (1992) > Parts Diagrams (1) > Rear Axle

  • Title
738-0878

1

Rear Axle .500 Dia. x 22.83

Part# 738-0878

OEM Warranty Repair Part for White Outdoor

Not available

750-0151

2

Spacer .550 I.D. x .755 O.D.

Part# 750-0151 (Superseded to 950-0151)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.12

736-0504

3

Wave Washer .510 I.D. x .750 O.D.

Part# 736-0504 (Superseded to 936-0504)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-3050

4

Flat Washer .406 I.D. x .810 O.D.

Part# 736-3050

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

712-3020

5

Hex Ins Top-L Jam Nut 3/8-16

Part# 712-3020 (Superseded to 912-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.08

682-0517

6

Handle Bracket Ass'y. - LH

Part# 682-0517

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-HANDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

682-0518

7

Handle Bracket Ass'y. - RH

Part# 682-0518

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Handle Brkt. Ass'y. - R.H.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

782-0519

8

Small Pivot Bar - LH

Part# 782-0519 (Superseded to 782-0519A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.05

782-0520

9

Small Pivot Bar - RH

Part# 782-0520 (Superseded to 782-0520A)

OEM Warranty Repair Part for White Outdoor

Not available

634-0002

10

Rear Wheel Ass'y. 16" (Plastic)

Part# 634-0002

OEM Warranty Repair Part for White Outdoor

Not available

734-1661

Rear Wheel Ass'y. 16" (Steel)

Part# 734-1661

OEM Warranty Repair Part for White Outdoor

Not available
