113-508A190 - White Outdoor 22" Walk-Behind Mower (1993)

22" Walk-Behind Mower

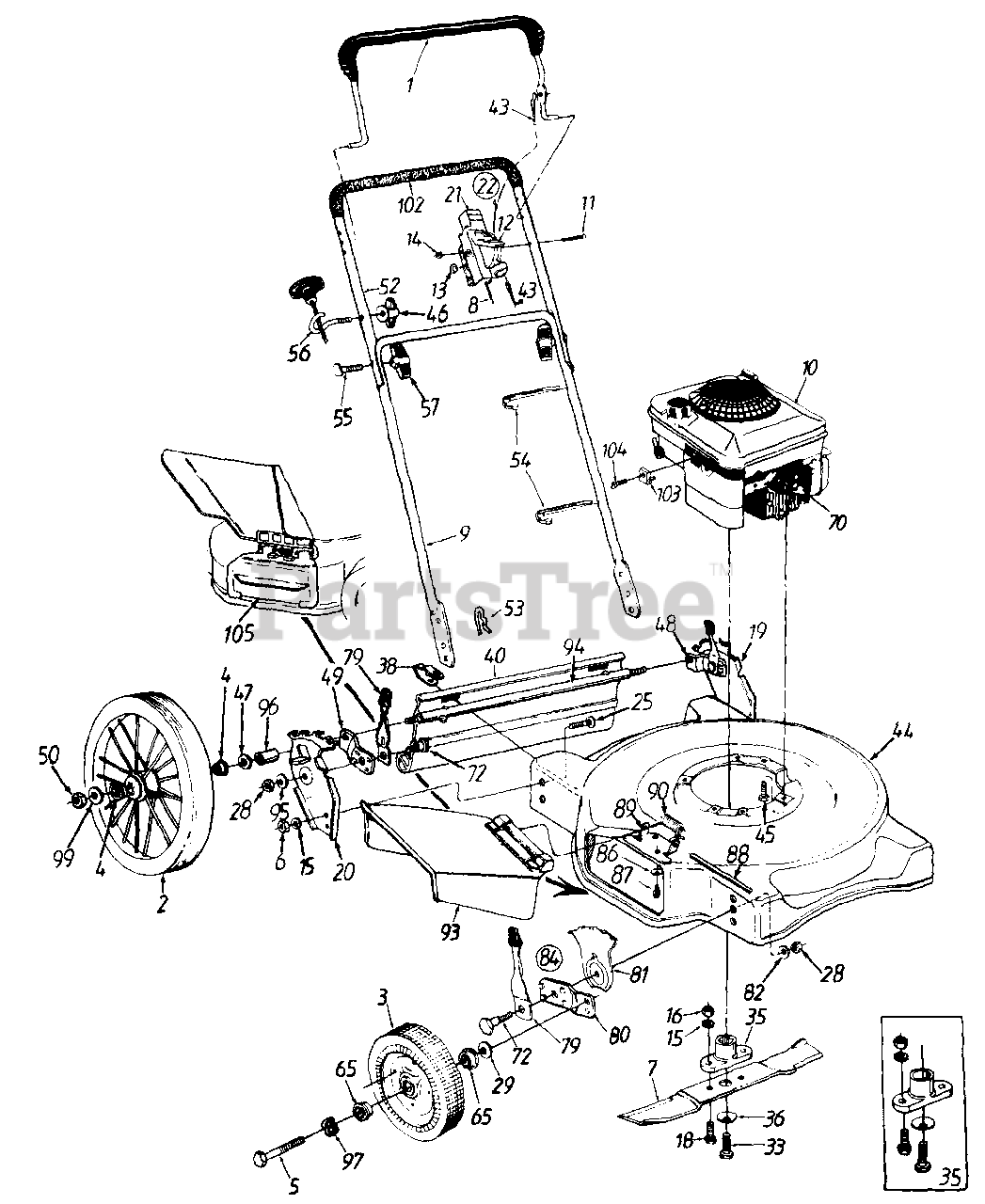

113-508A190 - White Outdoor 22" Walk-Behind Mower (1993) > Parts Diagrams (1) > 22" ERS Hi-Wheel Mower

  • Title
647-0004

1

Control Handle

Part# 647-0004 (Superseded to 747-0824B-0637)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $23.95

734-1661

2

16" Wheel Ass'y.

Part# 734-1661

OEM Warranty Repair Part for White Outdoor

Not available

734-1268

3

Front Wheel Ass'y.

Part# 734-1268

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $48.98

741-0484

4

Bearing 1/2" I.D.

Part# 741-0484 (Superseded to 941-0484)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.04

738-0102

5

Front Axle Bolt

Part# 738-0102 (Superseded to 938-0102)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.78

712-0328

6

Hex Nut 3/8-24 Thd. (Gr. 8)

Part# 712-0328 (Superseded to 712-0241)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

742-0622

7

22" Blade

Part# 742-0622 (Superseded to 942-0622)

OEM Warranty Repair Part for White Outdoor

Not available

742-0722

22" Mulching Blade

Part# 742-0722 (Superseded to 942-0722)

Note: (Optional)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $24.31

746-0842

8

Throttle Control Wire - 51"

Part# 746-0842 (Superseded to 946-0671A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $9.62

749-0928

9

Lower Handle

Part# 749-0928

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Lower Handle

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

10

Engine

Part#

Not available

710-0605

11

Oval C-Sunk Mach. Scr.

Part# 710-0605

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.84

746-0876

12

Throttle Lever

Part# 746-0876 (Superseded to 946-0876)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.52

736-0501

13

Spr. Wash. .66" I.D.

Part# 736-0501 (Superseded to 936-0501)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.44

712-0324

14

Hex L-Nut 1/4-20 Thd.

Part# 712-0324

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.48

736-0169

15

L-Wash. 3/8" I.D.

Part# 736-0169 (Superseded to 936-0169)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.47

712-0241

16

Hex Nut 3/8-24 Thd.

Part# 712-0241

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.86

712-0431

?17

Flange L-Nut 3/8-18 Thd.

Part# 712-0431 (Superseded to 912-0431)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.18

710-1055

18

Hex Bolt 3/8-24 x 1.0" Lg.

Part# 710-1055

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.13

682-0517

19

Handle Brkt. Ass'y. - L.H.

Part# 682-0517

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

BRACKET ASSY-HANDLE

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

682-0518

20

Handle Brkt. Ass'y. - R.H.

Part# 682-0518

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

Handle Brkt. Ass'y. - R.H.

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

746-0875

21

Throttle Body

Part# 746-0875 (Superseded to 946-0875)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.46

811-00185

22

Throttle Box Comp.

Part# 811-00185 (Superseded to 811-0185)

Note: (Incl. Ref. 11, 12, 13, 14, 21)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $25.09

710-0793

25

Ribbed Neck Bolt 3/8-24 x .80"

Part# 710-0793

OEM Warranty Repair Part for White Outdoor

Not available

712-0798

28

Hex Nut 3/8-16 Thd.

Part# 712-0798

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

736-0105

29

Bell-Wash. .400" I.D. x .88"

Part# 736-0105

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.92

710-1044

33

Hex Bolt 3/8-24 x 1.5" Lg.

Part# 710-1044

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.58

753-0484

35

Blade Adapter Kit

Part# 753-0484

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $15.92

736-0452

36

Bell-Wash. .39" I.D.

Part# 736-0452 (Superseded to 936-0452)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.00

17098

38

Hinge Clip

Part# 17098 (Superseded to 17098P)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.81

731-1026

40

Rear Flap Ass'y.

Part# 731-1026

OEM Warranty Repair Part for White Outdoor

Not available

746-0550

43

Control Cable - 39"

Part# 746-0550 (Superseded to 946-0550)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $14.77

682-0221

44

22" Deck Ass'y.

Part# 682-0221

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Variations

CHARCOAL GRAY (0483)

No Longer Available DECK ASSEMBLY-22IN

Part# CHARCOAL GRAY (0483)

OEM Warranty Repair Part for White Outdoor

Not available

OLD CUB YELLOW (0498)

No Longer Available DECK ASSEMBLY-22IN

Part# OLD CUB YELLOW (0498)

OEM Warranty Repair Part for White Outdoor

Not available

MTD/TROY-BILT RED (0638)

No Longer Available DECK ASSEMBLY-22IN

Part# MTD/TROY-BILT RED (0638)

OEM Warranty Repair Part for White Outdoor

Not available

OYSTER GRAY (0662)

No Longer Available DECK ASSEMBLY-22IN

Part# OYSTER GRAY (0662)

OEM Warranty Repair Part for White Outdoor

Not available

YARDMAN GREEN (0665)

No Longer Available DECK ASSEMBLY-22IN

Part# YARDMAN GREEN (0665)

OEM Warranty Repair Part for White Outdoor

Not available

MIDNIGHT BLUE (0667)

No Longer Available DECK ASSEMBLY-22IN

Part# MIDNIGHT BLUE (0667)

OEM Warranty Repair Part for White Outdoor

Not available

BLACK JACK (0691)

No Longer Available DECK ASSY 22 IN

Part# BLACK JACK (0691)

OEM Warranty Repair Part for White Outdoor

Not available

AGWAY BLUE (0692)

No Longer Available DECK ASSEMBLY-22IN

Part# AGWAY BLUE (0692)

OEM Warranty Repair Part for White Outdoor

Not available

710-0654A

45

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

Part# 710-0654A

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.77

712-0397

46

Wing Nut 1/4-20 Thd.

Part# 712-0397 (Superseded to 712-0397A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.73

736-0504

47

Wave Wash. .51" I.D.

Part# 736-0504 (Superseded to 936-0504)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

782-0519

48

Small Pivot Bar - L.H.

Part# 782-0519 (Superseded to 782-0519A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.05

782-0520

49

Small Pivot Bar - R.H.

Part# 782-0520 (Superseded to 782-0520A)

Note: Code: N Notates a new part (not previously existing)

OEM Warranty Repair Part for White Outdoor

Not available

712-3020

50

Hex Jam Nut 3/8-16 Thd.

Part# 712-3020 (Superseded to 912-3020)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $4.08

749-0538C

52

Upper Handle

Part# 749-0538C

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

UPPER HANDLE BLACK

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

714-0104

53

Intern. Cot. Pin 5/16" Dia.

Part# 714-0104 (Superseded to 914-0104)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

726-0240

54

Cable Tie

Part# 726-0240 (Superseded to 725-0157)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.53

710-1174

55

Curved Hd. Bolt 5/16-18 x 2" Lg.

Part# 710-1174

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

710-1205

56

Rope Guide

Part# 710-1205

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.59

720-0276

57

Hand Knob

Part# 720-0276 (Superseded to 920-0276)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.40

741-0484

65

Bearing

Part# 741-0484 (Superseded to 941-0484)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $5.04

735-0639

70

Spark Plug Boot

Part# 735-0639

Note: (Optional)

OEM Warranty Repair Part for White Outdoor

Not available

738-0507B

72

Shoulder Bolt .50" Dia.

Part# 738-0507B (Superseded to 938-0507B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.86

14832

79

Spring Lever Ass'y. w/Knob

Part# 14832 (Superseded to 94832)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.03

15262B

80

Pivot Bar

Part# 15262B

OEM Warranty Repair Part for White Outdoor

Variations

POWDER BLACK (0637)

PIVOT BAR

Part# POWDER BLACK (0637)

OEM Warranty Repair Part for White Outdoor

Not available

15261A

81

Height Adj. Plate

Part# 15261A (Superseded to 787-01290A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.84

736-0356

82

Bell-Wash. .39" I.D. x 1.38"

Part# 736-0356 (Superseded to 936-0356)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $4.66

14578

84

Front Height Adj. Ass'y. Comp. - R.H.

Part# 14578 (Superseded to 753-06761)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.66

14579

Front Height Adj. Ass'y. Comp. - L.H.

Part# 14579 (Superseded to 753-06761)

Note: (Not shown)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $42.66

736-0270

86

Bell-Wash. .285" I.D. x .75"

Part# 736-0270

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.66

710-0599

87

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

Part# 710-0599

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

747-0710

88

Hinge Pin

Part# 747-0710 (Superseded to 747-0710A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.83

17032

89

Adapter Plate

Part# 17032 (Superseded to 17032A)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $8.28

732-0593

90

Torsion Spring

Part# 732-0593 (Superseded to 932-0593)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $3.15

731-1034

93

Chute Deflector Ass'y. Comp.

Part# 731-1034 (Superseded to 931-1034B)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $49.69

738-0878

94

Rear Axle

Part# 738-0878

OEM Warranty Repair Part for White Outdoor

Not available

736-0331

95

Bell-Wash. .39" I.D. x 1.13"

Part# 736-0331

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.57

750-0151

96

Spacer .55" I.D. x .75"

Part# 750-0151 (Superseded to 950-0151)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $7.12

736-0504

97

Wave Washer .51" I.D.

Part# 736-0504 (Superseded to 936-0504)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

736-3050

99

Fl-Wash. .406" I.D. x .81"

Part# 736-3050

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.85

736-0182

?100

Spr. Wash. .5" I.D. x 1.0"

Part# 736-0182

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $2.89

720-0226

102

Foam Grip

Part# 720-0226 (Superseded to 720-0295)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $21.53

751-0568

103

Casing Clamp

Part# 751-0568 (Superseded to BS-690798)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $3.33

710-1237

104

Hex Wash. Hd. Tap Scr. #10-32 x .62" Lg.

Part# 710-1237

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 5 to 10 business days

Your price: $2.87

731-1386A

105

Mulching Baffle

Part# 731-1386A (Superseded to 731-1386D)

Note: (Optional)

OEM Warranty Repair Part for White Outdoor

Not available

777-9131

"WHITE" Label

Part# 777-9131

Not available

777-8151

Danger Label

Part# 777-8151 (Superseded to 977S30145)

OEM Warranty Repair Part for White Outdoor

Usually leaves our warehouse in 1 business day

Your price: $6.61
